Asme B16.5 Bleed Ring Flange Carbon Steel 600lb Drip Ring
Asme B16.5 Bleed Ring Flange Carbon Steel 600lb Drip Ring
Asme B16.5 Bleed Ring Flange Carbon Steel 600lb Drip Ring
Asme B16.5 Bleed Ring Flange Carbon Steel 600lb Drip Ring
Specifications
Brand Name :
OEM
Model Number :
1" up to 100"
Certification :
CNAS ,PED ,CE,ISO
Place of Origin :
Cangzhou ,Hebei Pro ,China
MOQ :
10pcs
Price :
Negiotion
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000sets /month Specialised Pipe And Fittings
Delivery Time :
Shipped in 20 days after confirming the deposit
Packaging Details :
Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside
Dimensions :
Customer Required
size :
1/2"-24"
price :
Negiotion
products name :
bleed ring
standard :
Nonstandard
pressure :
high pressure
color :
silver or as customer's request.
Delivery Terms: :
CIF, CFR, FOB, EXW.
package :
Carton Box, Pallet
Description

Products decription :

ASME B16.5 Carbon Steel 600LB bleed ring drip ring

ASME B16.5 Carbon Steel 600LB bleed ring drip ring

NPS ID OD by Pressure Class
150 300 600 900 1500
1 28.6 63.5 69.9 69.9 76.2 76.2
1½ 41.3 82.6 92.1 92.1 95.3 95.3
2 54 101.6 108 108 139.7 139.7
2½ 63.5 120.7 127 127 161.9 161.9
3 79.4 133.4 146.1 146.1 165.1 171.5
4 104.8 171.5 177.8 190.5 203.2 206.4
6 155.6 219.1 247.7 263.5 285.8 279.4
8 203.2 276.2 304.8 317.5 355.6 349.3
10 257.2 336.6 358.8 396.9 431.8 431.8
12 304.8 406.4 419.1 450.9 492.1 514.4

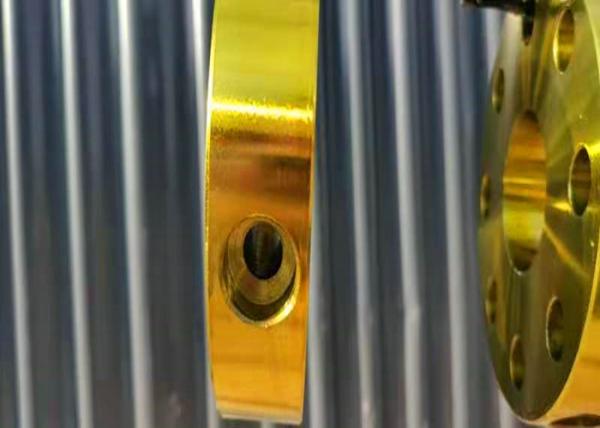

A bleed ring is a ring section with one or more radial pipe connections designed to fit between standard flanges within the bolt circle, using conventional gasket material. The ring normally comes with a 1/2 inch socket weld or 3/4 inch tapped for connecting with valves and instruments. The face of the ring can also be made to matched with any flange type, and has different sizes based on the ASME flange rating of the process piping.

Bleed Rings can provide a beneficial way of draining piping, taking samples, attaching instruments or even bleeding of a valve. They can also be used with a valve and/or blind flange, this allows you to reduce and dispose of the pressure for your valve before you remove the flange. This is usually done with a replacement for a leaky valve.

The bleed ring can come in any material or size, and is designed for connecting valves and instruments. The face of the bleed ring can be manufactured to match with any flange type. The standard sizes for a bleed ring are NPS 1 to NPS 24 and ASME Pressure Classes 150 through 1500. It comes in many different materials such as carbon steel, stainless steel etc.


Distinguish by purpose
1. Air duct for purifying air-conditioning system: galvanized sheet, stainless steel; (fiberglass and composite materials that may be polluted by dust sources in use are prohibited)

2. Air duct for central air conditioning system: galvanized sheet, color steel insulation board; (glass reinforced plastic, composite materials can be used)

3. Air duct for environmental control system: galvanized sheet, stainless steel; (plastic, FRP, composite materials can be used)

4. Air duct for industrial ventilation system: steel plate, galvanized sheet; (Libo ventilation duct. Plastic, glass steel, composite materials can be used)

Note: FRP ducts can be divided into two types: organic and inorganic. According to the design code, there are fire protection requirements for prohibiting organic materials;

5. Air ducts for special occasions: rubber-coated air ducts for mining, plastic ventilation ducts for mining; (requires flame-retardant and antistatic mine safety features)
