CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
CSN EN 10217 UOE Steel Pipe With High Pressure Welding Tube Steel
Specifications
Brand Name :
Best
Model Number :
1/2'' -48''
Certification :
API /CE / ISO /TUV
Place of Origin :
China
MOQ :
1 TONS
Price :
450 USD/TON
Payment Terms :
L/C, T/T
Supply Ability :
100000 Ton/Year
Delivery Time :
Shipped in 25 days after payment
Packaging Details :

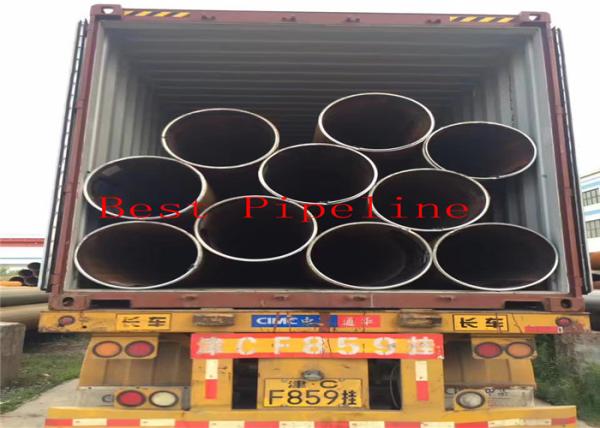

1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description.
Standard :
CSN EN 10217-1:2003/A1:2005
Keyword :
Welded steel pipes
Size :
12 - 610 mm
Certificate :
API
Description
Name : CSN EN 10217-1:2003/A1:2005 Welded steel pipes for pressure purposes

1.WT≤15 mm, Bending≤1.5mm/m

WT>15~30 mm, Bending≤2.0mm/m

WT>30 mm, Bending≤3.0mm/m

2. End shape for the seamless high pressure boiler tube:

Both ends of the pipe should be cut at rightangles, and remove burrs

Tests of the seamless boiler tubes:

1.Bending Test:

The tubes should take the bending test when OD ≤22mm. Thebending angle is 90 degrees, and the bending radius is 6 times the outerdiameter of the steel tube.

2. Hydraulic test;

Eddy current testing, ultrasonic testing can beused instead of hydraulic tests. When eddy current testing, GB/T7735-1995 Gr. A should be followed; when ultrasonictesting, GB/T 5777-1996 Gr. C8 should be followed.

3. Flattening test

4. Flanging test

5. Expand test

Item Details
Product ERW steel pipe(Electric Resistance welded pipe)
Standard and Grade

API 5L GR.B, X 42, X 46, X 52, X 60

ASTM A 53 GR.A/GR.B ,ASTM A252 GR.1 / GR.2 / GR.3
ASTM A500 / ASTM A252 / ASTM A36, Q195, Q235, Q345, SS400, SS490
EN 10210 / EN10219 EN10297,S275, S355

BS1387, GOST10704 / GOST10705
Out diameter 1/2" to 24" (21.3mm to 609.6mm)
Wall thickness Sch 10 TO Sch 40 (2mm to 20mm)
Length SRL,DRL,5.8M,6M,12M
Certificates API 5L,ISO,CE,PED,CPR,GOST,
Coating Bare,oil,Black painting,Galvanized coating,3LPE,3PP,2PP
Pipe ends Beveled ends,Plain ends,Grooved,welding ring
Packing Bundles,Woven bags packing,losse packing,
Delivery time 7-30 days
Application

Water oil and gas low pressure fluid pipeline

Petroleum and chemical industry pipe

Structure

Electric power engineering

High pressure boiler pipe

Piling pipe
Supply

ERW steel pipe

Seamless steel pipe

LSAW steel pipe

SSAW steel pipe

Galvanized steel pipe

5CT casing tube
Payment term T/T,L/C,BL COPY etc

Chemical Composition
Material C% Mn% S% P% Si%
Q195 0.06-0.12 0.25-0.50 <0.050 <0.045 <0.30
Q215 0.09-0.15 0.25-0.55 <0.050 <0.045 <0.30
Q235 0.12-0.20 0.30-0.70 <0.045 <0.045 <0.30
Q345 <0.20 1.0-1.6 <0.040 <0.040 <0.55
Mechanical Property
Material Yield Point(Mpa) Tensile Strength(Mpa) Elongation(%)
Q195 >195 315-430 32-33
Q215 >215 335-450 26-31
Q235 >235 375-500 24-26
Q345 >345 470-630

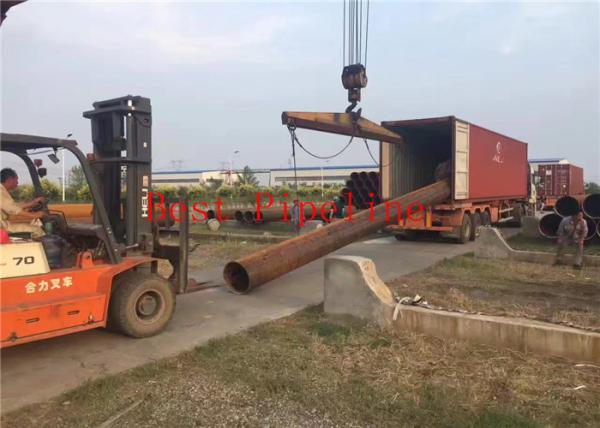

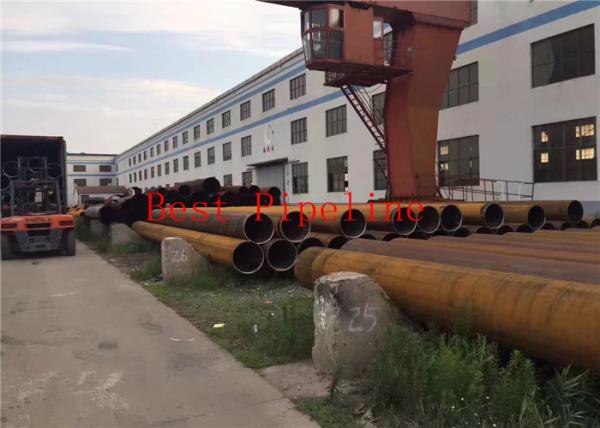

Steel Pipe Pictures
