0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
0.44-0.65 Molybdenum Alloy Steel Seamless Tubes / 0.10-0.50 Silicon Chrome Moly Tubing
Specifications
Brand Name :
Best Pipeline
Model Number :
1/2''-48''
Certification :
API/CE / ISO /TUV
Place of Origin :
Chiina Japan
MOQ :
1Tonds
Price :
450 usd/tton
Payment Terms :
L/C /TT
Supply Ability :
1000000 Tons
Delivery Time :
5-8 working days
Packaging Details :
According To Customers Demands
Standard :
ASTM A209
Grade :
Grade T1a
Technique :
are known as chrome moly Tubes
Section :
Round
Application :
Bolier Pipes
Sample :
Can be send for free
Description

Product Name : ASME SA 209 Grade T1a Alloy Steel Seamless Tubes are known as chrome moly Tubes

ASME SA 209 Grade T1a Specification

ASME SA 209 Grade T1a Alloy Steel Seamless Tubes are Carbon Steel Tubes with subsequent addition of chromium, molybdenum and sometimes vanadium are known as chrome moly Tubes. ASME Specification alloy steel Tubes are used for high temperature service applications. Seamless Alloy Steel Tubes according to ASME SA 209 Grade T1a are reheated and furnished in full annlealed,isothermal annealed or normalised quenched and tempered condition. ASME SA 209 Grade T1a Alloy Steel Seamless Tubes have a typical chemistry with additions of 0.44-0.65 Molybdenum. Bearing minimum tensile strength of 365 Mpa ASME SA 209 Grade T1a Tubes have a minimum yield strength of 195 Mpa.

ASME SA 209 Grade T1a Properties

Chemical Properties
Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
0.15- 0.25 0.10-0.50 0.30-0.80 0.025 0.025 0.44-0.65 – – – –

Mechanical Properties
Yield Strength Tensile Strength Elongation A5 min
MPa min ksi min MPa min MPa min ksi min Percentage

365 – 53 30

Equivalent Designation
DIN EN BS NFA ASTM ASME
DIN 17175 Grade 16Mo5 – – – ASTM A209 GradeT1a ASME SA 209 Grade T1a –

2: Product Information

Product name seamless boiler steel pipe&tube
Standard GB JIS ASTM AISI DIN ect
Material

ASTM A 179 A53 A106,API5L Gr.B X60 X42,Q235B, Q345B, Q345C, 20#,

12Cr1MoV,15CrMo, TP304,316 310S.S235JR ect
Thickness 1-100mm
Schedule

SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40S,SCH40,STD,SCH80,SCHXS,

SCH160,SCHXXS,ect
Outer diameter 6-820 mm
Length 5.8m 6m 12m or as customer demand
Used area

Petroleum,chemical,power, gas, water, metallurgy, shipbuilding, construction

, etc Or as customer demand
Package In bundles, Varnish coating, Ends can be beveled or square cut, End capped
Certification ISO9001.2000, , API, Mill Test Certificate
Thirdparty inspection OMIC,SGS, or as customer demand
Remark We can customer made for special requirement

Delivery Executions of ASME SA 209 Grade T1a Alloy Steel Seamless Tubes

Tube Ends

Seamless tubes are supplied with clean, square cut ends.Deburring and/or chamfering can be carried out on request.

Marking

ASME SA 209 Grade T1a Alloy Steel Seamless Tubes is marked with tube type, heat number, steel grade and size. Information is repeated along the whole length of the tube. Other markings, such as stamping, can be made on request. Bundles are also labeled with a tag having info both alphanumeric and by bar code.

Labelling

ASME SA 209 Grade T1a Alloy Steel Seamless Tubes delivered direct from our mill is labeled in accordance with automotive standard, ie with both alphanumeric and bar code information. Customer specific data can be added on request.

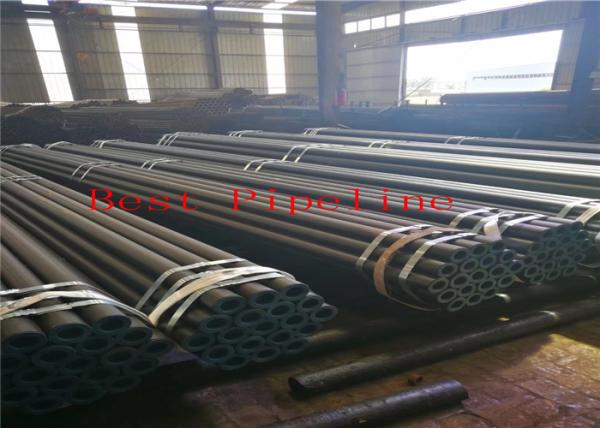

Pipe Pictures
