10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
10 Inch Wall Thickness Stainless Steel Welded Tube With 850°C High Temperature
Specifications
Brand Name :
Best
Model Number :
1/2''-48''
Certification :
API/CE/ISO /TUV/PED
Place of Origin :
China /Japan
MOQ :
1Pcs
Price :
500 usd/Ton
Payment Terms :
L/C/ TT
Supply Ability :
1000000 Ton/year
Delivery Time :
5-8 working days
Packaging Details :
standard export packing or as required
Standard :
EN 10217-7 TC1 D3/T3
Material : :
1.4301/304/304L/316/316L
Size :
10inch wall thickness : 1.000 inch
Polish :
Satin,Bright or Mirror
Out Diameters :
6mm~2500mm
Application :
Seawater heat exchanger tubes and seawater desalination plant pipes
Description

Product Name : Standard : EN 10217-7 TC1 D3/T3 Welded stainless steel tube Material : 1.4301 /304/316L /304L

What is 1.4301?

Material No. 1.4301
EN symbol (short) X5CrNi18-10
AISI/SAE 304
UNS S 30400
AFNOR Z7CN 18-09
B.S. 304 S15 – 304 S31
alloy —
Registered work's label —
Standards EN 10088-3

Description

The stainless austenitic chromium-nickel steel 1.4301 shows good corrosion resistance (particularly in natural environmental media and in the absence of considerable chlorine and salt concentrations and sea water) and weldability. Application with acids have to be checked individually. However, after welding 1.4301 is not stable to intergranular corrosion. Good polishing and deep drawing property. It is used in the crude oil industry, chemical industry, petrochemical industry, automobile industry.
Our product range in 1.4301 are tubes and pipes, fittings and flanges, accessories

Chemical composition
C
≤ %		 Si
≤ %		 Mn
≤ %		 P
≤ %		 S
≤ %		 Cr
%		 Mo
%		 Ni
%		 V
%
0,07 1,0 2,0 0,045 0,015 17,0-19,5 8,0-10,5
Nb
%		 Ti Al Co
≤ %		 Cu
≤ %		 N
≤ %		 Fe Ce
%		 Y
≤ %
0,11
¹ in accordance with Key to Steel 2001

Special characteristics
Temperature range Density kg/dm³ Hardness (HB)
Due to an inclination to precipitate chromium carbides, application temperatures of 450°C-850°C have to be tested carefully (DIN EN 10088-3) 7,9 160-190

Welding filler

1.4316 (308L), 1.4302, 1.4551

Main fields of application (depending on the specific conditions of use)
crude oil industry, chemical industry, petrochemical industry, construction industry, food industry
(all aforementioned specifications serve as a general orientation and have to be reviewed depending on the specific conditions of use)

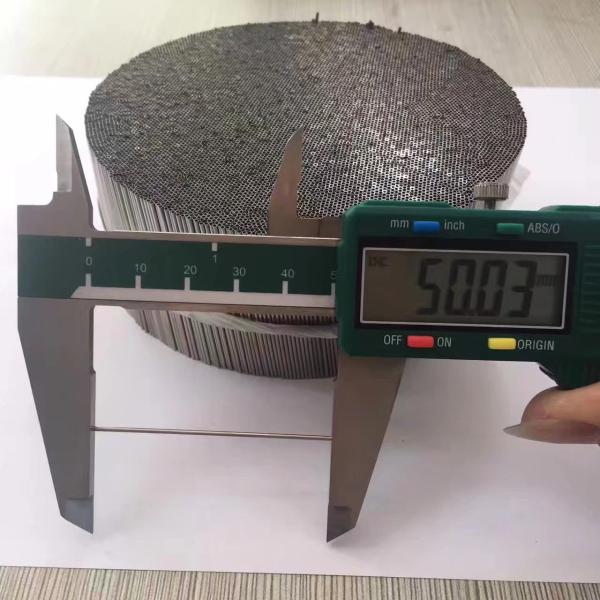

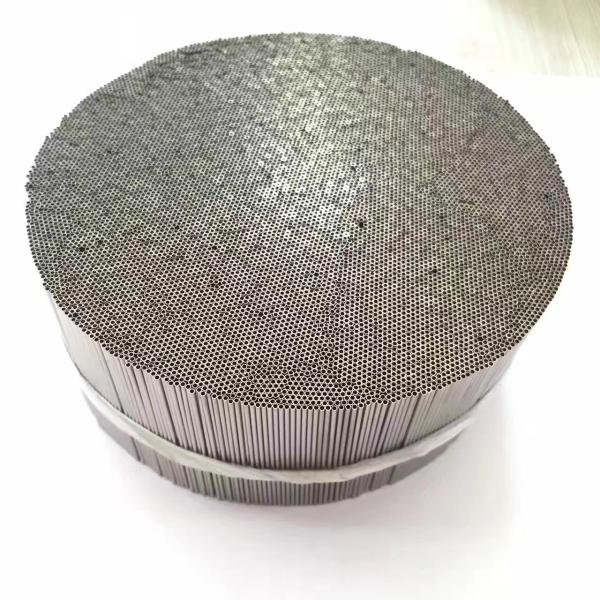

Welded stainless steel tube 304 Pipe pictures :
