N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
N80 Q2 8th Edition Seamless Casing , OCTG Casing Copper Coated Surface
Specifications
Brand Name :
Best
Model Number :
114.3 - 508 mm
Certification :
API
Place of Origin :
China
MOQ :
1 Tons
Price :
600 usd/ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000Ton/Month
Delivery Time :
5-8 working days
Packaging Details :
bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.
Standard :
API
Grade :
J55, N80-12, N80-Q2 L80-1, C951, 4 P1101,8
Out diameter :
API J55, API K55, API L80,
Application :
casing Tubing
Surface :
Copper Coated
Special Pipe :
API Pipes
Description

Product Name : Type of casing Tubing Spec 5CT 8th edition, 2005 H40, J55, N80-12, N80-Q2 L80-1, C951, 4 P1101,8

Standard: API 5CT, API 5D
Steel Grades: K55, J55, L80-1 ,N80,C90,C95, P110, T95
Size: 2 3/8"-4 1/2"*0.167"-0630"

Casing Pipe

Tubing steel pipe

Oil Casing Pipe/Steel Pipe

Including ordinary casing, Anti-collapse casing, Anti-corrosion casing, Hi-strength casing

Serves as walls of a well;

Standard: API 5CT

Steel Grades: k55, J55, L80,N80,C90,C95, P110 T95, M65,E75,X95,G105,S135

1) Tubing

OD: 2 3/8" -----4 1/2"

WT: 0.167" -----0.630"

Note: P : Plain end, N: Non upset, U: External upset, T&C: Threaded and coupled.

2) Casing

OD: 2 3/8“ ----20"

WT: 0.205" --- 0.5"

Note: P: Plain end, S: Short round thread, L: Long round thread

Length : R1 R2 R3

Tubing 6.10 -7.32 m 8.53-9.75m 11.58-12.80m

Casing 4.88 - 7.62m 6.72 -10.36m 10.36 - 14.63m

3) Drill Pipe

OD: 2 3/8" - 5 1/2"

WT: 0.280" - 0.449"

Note: EU: External upset , IEU: Internal & External upset

Thread of tool joint are right-hand or left hand

Thread are coper- plated or phoshphated

OCTG inspection items are as follows: appearance inspection, dimension inspection, chemical composition inspection, performance test, drift test, straightness inspection,

Pipe magnetic leakage and ultrasonic flaw detection, standoff inspection, thread inspection, phosphating corrosion inspection and hydraulic water pressure test.

Outer Diameter Wall Thickness Grade Thread Length
in mm kg/m lb/ft
4 1/2" 114.3 14.14-22.47 9.50-15.10 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
5" 127 17.11-35.86 11.50-24.10 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
5 1/2" 139.7 20.83-34.23 14.00-23.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
6 5/8" 168.28 29.76-35.72 20.00-24.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
7" 177.8 25.30-56.55 17.00-38.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
7 5/8" 193.68 35.72-63.69 24.00-42.80 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
8 5/8" 219.08 35.72-72.92 24.00-49.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
9 5/8" 244.48 48.07-86.91 32.30-58.40 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
10 3/4" 273.05 48.73-97.77 32.75-65.70 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
11 3/4" 298.45 62.50-89.29 42.00-60.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3
13 3/8" 339.72 71.43-107.15 48.00-72.00 J55/N80/P110/K55 LTC/STC/BTC R1/R2/R3

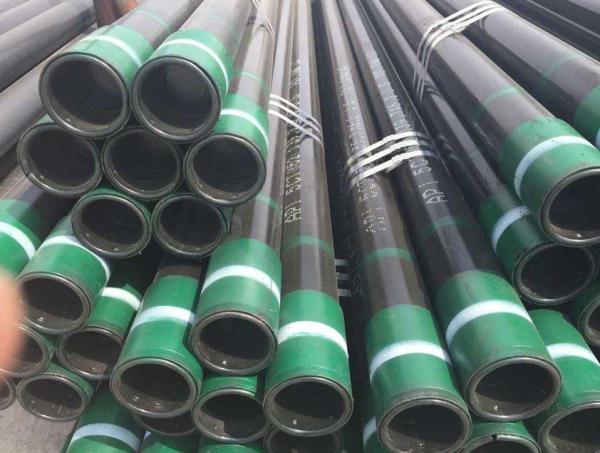

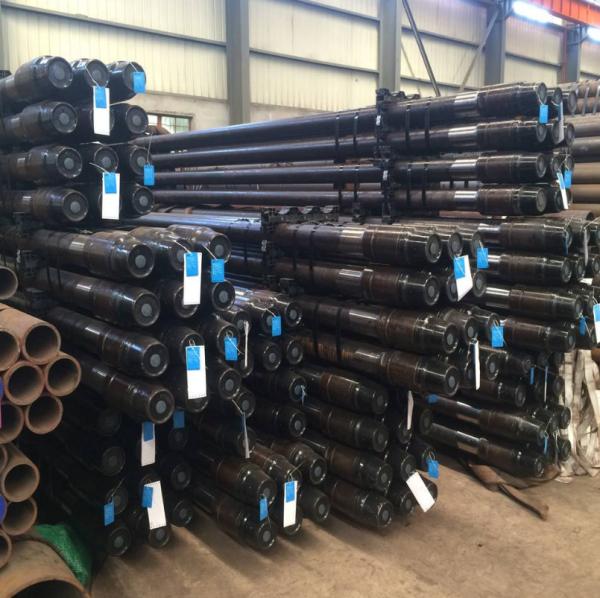

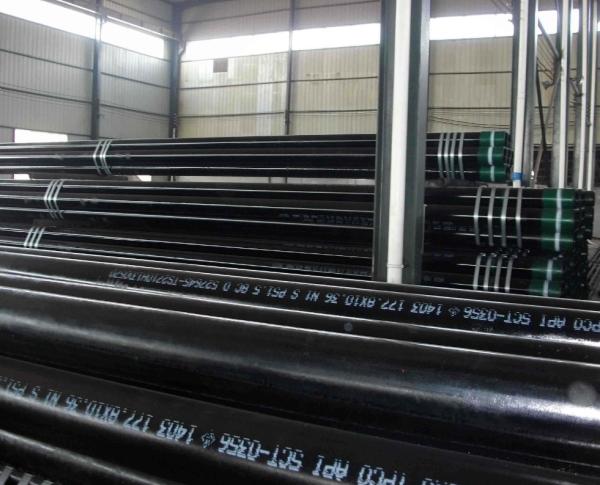

Casing Pipe Pictures
