KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
KN 45 11081 Drill Pipe Casing Cold Rolled Steel Sheet Seamless For Deep Drilling
Specifications
Brand Name :
Best
Model Number :
114.3 - 508 mm
Certification :
API
Place of Origin :
China
MOQ :
1 Tons
Price :
600 usd/ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000Ton/Month
Delivery Time :
5-8 working days
Packaging Details :
bundle,,painting against corrosion, protective plastic caps, special packing can be offered by customer.
Standard :
KN 45 11081:1997
Grade :
API J55, API K55, API L80,
Out diameter :
API J55, API K55, API L80,
Application :
seamless for deep drilling
Surface :
Copper Coated
Special Pipe :
API Pipes
Description

Product Name : KN 45 11081:1997 Casing Pipes and tubes type III – seamless for deep drilling – Technical delivery conditions”

We supply API 5CT standard casing pipe with assured quality and competive price.

We have good relationship with domestic big mills/factories that all API cert qualified. All API series steel grade and connections can be supplied at PSL 1, PSL 2, PSL 3 as per your need.

Item API 5CT Oil Casing Pipe
Thickness 4.24mm thickness and more
Outerine Diameter 60.32-339.72mm
Length R1(4.88-7.62M) R2(7.62-10.36M) R3(10.36-14.63M)
Payment term T/T,West Union,Escrow,L/C at sight
Tolerance Comply with standard or requirements
Grade API J55,API K55,API N80,API L80,API P110,API J55-API P110
Standards GB,ASTM,DIN,JIS,EN
Surface Treatment After Hot/Cold Rolled
Packing Standard exporting packing or as requirements
Certificate API 5CT (cerfificate No 5CT 0735) ISO 9001:2008

API Oil pipe, Casing pipe

Type

Label 1

(in)

Outside diameter

(mm)

Wall thickness

(mm)

 Grade Type of thread Length
Casing 4-1/2 114.30 5.21-8.56 H40-P110

STC

LC

BC

 4.88-13.5m
5 127.00 5.59-12.70 H40-P110
5-1/2 139.70 6.20-22.22 H40-P110
6-5/8 168.28 7.32-12.06 H40-P110
7 177.80 5.87-22.22 H40-P110
Oil pipe 2-3/8 60.32 4.24-8.53 H40-P110

NU

EU

 6.1-12.8m
2-7/8 73.02 5.51-11.18 H40-P110
3-1/2 88.90 5.49-13.46 H40-P110
4 101.60 5.74-15.49 H40-P110
4-1/2 114.30 6.88-16.00 H40-P110

Grade Yield Strength(Mpa) Tensile Strength(Mpa) Hardness
J55 379-522 >517
K55 379-552 >655
N80 552-758 >689
L80-1 552-655 >689 23-241
C90 621-724 >689 25.4-255
C95 655-758 >724
T95 655-758 >724 25.4-255
P110 758-965 >862

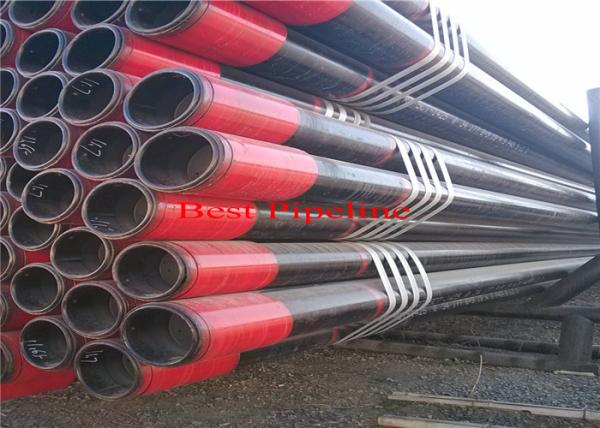

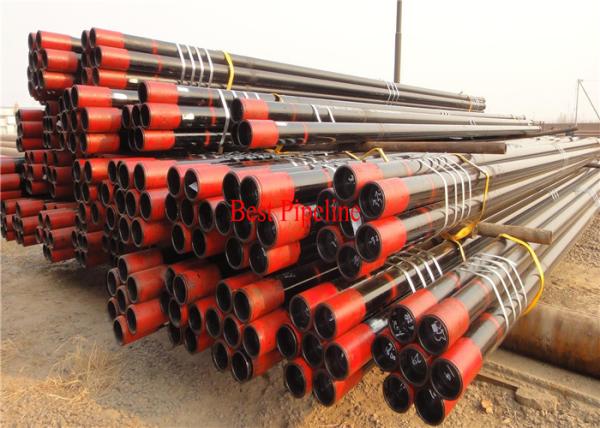

Casing Pipes and tubes Pictures
