Specifications
MOQ :
1 pcs
Price :
0.3 usd/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs in stock
Delivery Time :
5-8 working days
Packaging Details :
standard exported packages
Standard :
DIN2573/2576
Material :
UNS S32760 (1.4501 / F55)
Steel Number :
1.4501
Type :
Steel Pipe Blind flanges
Description

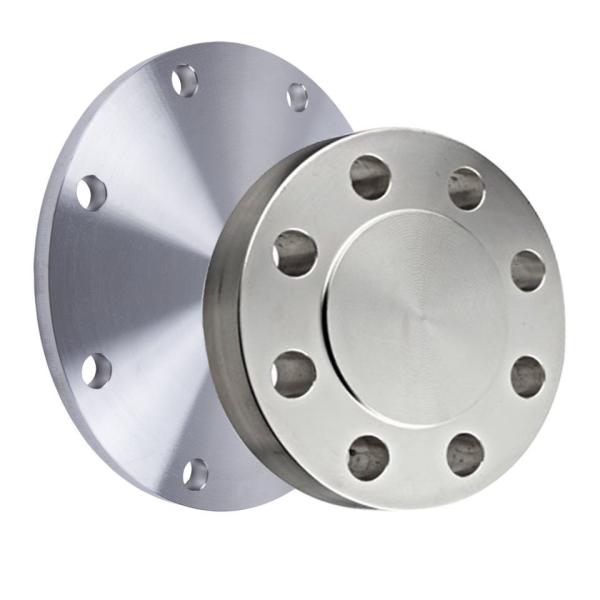

DIN 2631 FLÄNSAR EN ASME B16.5 Plan svetsfläns Flanges Typ 01 UNS S32760 (1.4501 / F55) Steel Blind pipe flanges


The alloy is supplied with a PREN(Pitting Resistance Equivalent) at >=40.0 which guarantees high resistance to pitting corrosion. In addition, the steel offers high resistance to crevice corrosion and stress corrosion cracking. Ambient and sub-zero (down to minus 50°C) notch ductility is good. These attributes mean that this super duplex steel can be used successfully as an alternative to 300 series stainless steel (such as Type 316 ), standard 22% Cr duplex steel and precipitation hardening stainless steels. Where appropriate the alloy can be considered in lieu of more costly Grade 5 titanium or nickel-based alloys.

The steel combines high mechanical strength (typically up to 600 MPa yield strength) and good ductility with outstanding corrosion resistance to marine environments and a wide, diverse range of Oil & Gas production environments.

S32760 Steel Blind Pipe flange chemical information :

Grade :X2CrNiMoCuWN25-7-4
Number:1.4501
Classification:Austenitic-ferritic stainless steel - special grade
Density:7.8 g/cm ³
Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
EN 10253-3: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
EN 10253-4: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10217-7: 2005 Welded steel tubes for pressure purposes. Stainless steel tubes
EN 10088-1: 2005 Stainless steels. List of stainless steels


Chemical composition % of steel X2CrNiMoCuWN25-7-4 (1.4501): EN 10088-2-2005
Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
CSiMnNiPSCrMoWNCu
max 0.03max 1max 16 - 8max 0.035max 0.01524 - 263 - 40.5 - 10.2 - 0.30.5 - 1

Mechanical properties of steel X2CrNiMoCuWN25-7-4 (1.4501)
Rm - Tensile strength (MPa) (+A)730-930
Rm - Tensile strength (MPa) (+AT)800-1000
Rp0.2 0.2% proof strength (MPa) (+A)530
Rp0.2 0.2% proof strength (MPa) (+AT)550
KV - Impact energy (J) transverse, (+A)+20°
90		-40°
40
KV - Impact energy (J) transverse, (+AT)+20°
100		-40°
40
KV - Impact energy (J) longitud., (+AT)+20°
100
A - Min. elongation at fracture (%) (+A)25
A - Min. elongation at fracture (%) longitud., (+AT)20
Brinell hardness (HB): (+A)290
Brinell hardness (HB): (+AT)310

Properties of steel X2CrNiMoCuWN25-7-4 (1.4501)
Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes

Equivalent grades of steel X2CrNiMoCuWN25-7-4 (1.4501)
EU
EN		USA
-
X2CrNiMoCuWN25-7-4
S32750
S32760
