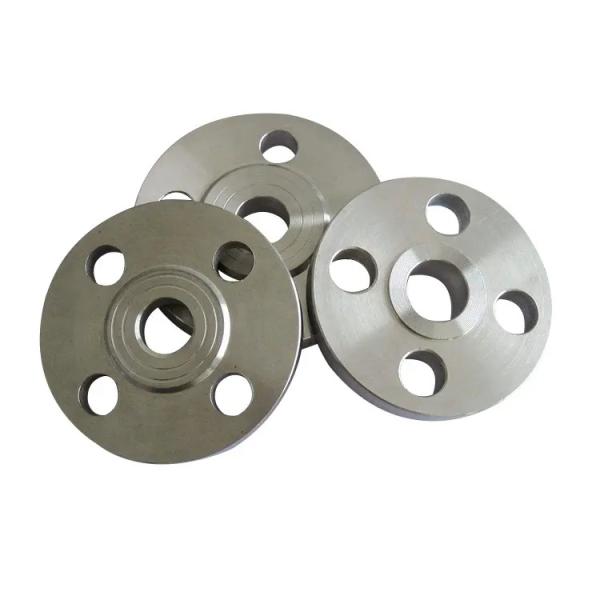

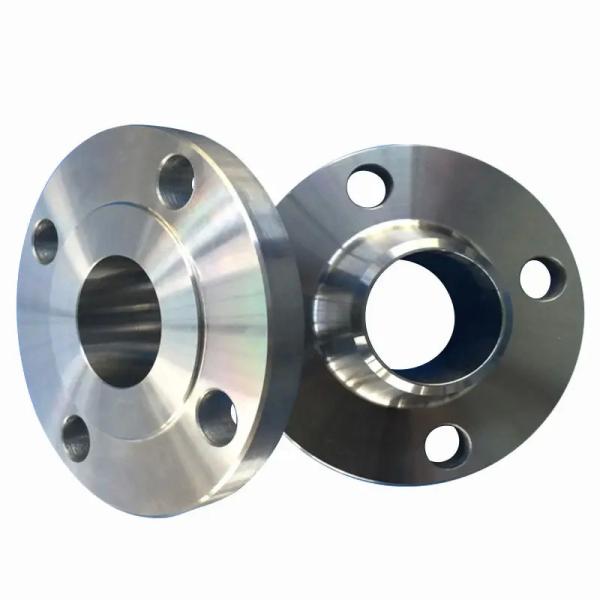

15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
Specifications
Material :
15NiCuMoNb5-6-4 1.6368
Steel Number :
1.6368
Type :
blind pipe flanges
Forged :
forged flanges
Description
Grade : 15NiCuMoNb5-6-4
Number: 1.6368
Classification: Alloy special steel
Standard:
EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties
EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties

Chemical composition % of steel 15NiCuMoNb5-6-4 (1.6368): EN 10028-2-2003
C Si Mn Ni P S Cr Mo N Nb Al Cu
max 0.17 0.25 - 0.5 0.8 - 1.2 1 - 1.3 max 0.025 max 0.01 max 0.3 0.25 - 0.5 max 0.02 0.015 - 0.045 max 0.015 0.5 - 0.8


Mechanical properties of steel 15NiCuMoNb5-6-4 (1.6368)
Nominal thickness (mm): to 60 60 - 100 100 - 150 150 - 200
Rm - Tensile strength (MPa) 610-780 600-760 590-740 580-740
Nominal thickness (mm): to 40 40 - 60 60 - 100 100 - 150 150 - 200
ReH - Minimum yield strength (MPa) 460 440 430 420 410
KV - Impact energy (J) transverse, -20°
27		 0°
34		 +20°
27-40
A - Min. elongation at fracture (%) 16-19
15NiCuMoNb5-6-4 Blind Forged Pipe Flanges 1.6368 Steel Forged Flanges Carbon Steel Flanges
