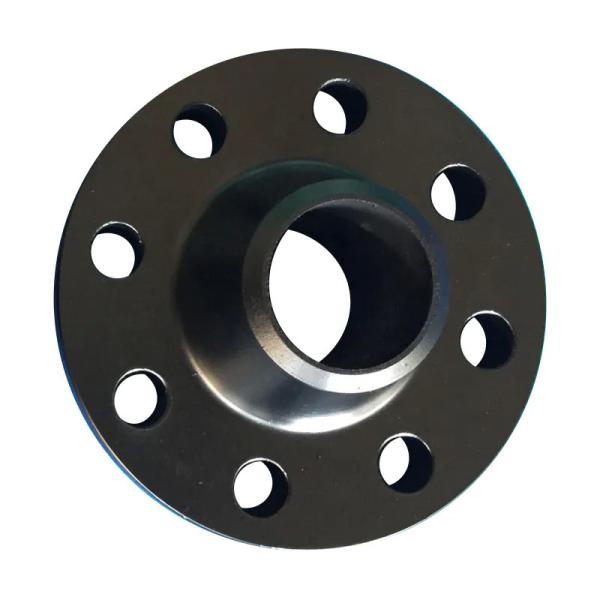

Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Special Flange 8'' 2500 WN Flange RF Compact Material A182 F53 Super Duplex
Specifications
Material :
A182 F53
Pressure :
2500
Size :
8inch
Type :
wn flanges
Description
FLANGES/FORGINGS/RINGS/DISC
Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500# 1/2"-24"(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500# 1/2"-3"(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900# 22"-48"(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002 Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange PN2.5-PN100 DN10-DN4000
JIS B2220 Welding flange, lap joint flange, threaded flange PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E Plate Flange for welding/WN flange/blank Flange PN6-PN100 DN10-DN1500
Other Products Anchor/swivel/girth/lap joint/reducing/orifice
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring
Special Products: rings/forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600),
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276),
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
Stainless Steel ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52, F56 F60, F65, F70
Alloy Steel ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

pecification ASTM A182 / ASME SA182 F53
UNS Grade UNS S31803, S32205, S2205, S32550, S32750, S32760.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size ½” to 24″
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

ASTM A182 F53 Flanges Chemical Composition
Chemical Composition Limits
Weight% C Mn P S Si Cr Ni Mo N Cu
Super Duplex F53 0.03 max 1.2 max 0.035 max 0.015 max 0.8 max 24-26 6-8 3-5 0.3 0.5 max

Mechanical Properties Of ASTM A182 F53 Flanges
Alloy Tensile Strength ksi Proof Strength 0.2% ksi (min) Elongation (%) (min) Hardness Rockwell C
Super Duplex F53 Annealed Condition 110-135 80 15 28 max
