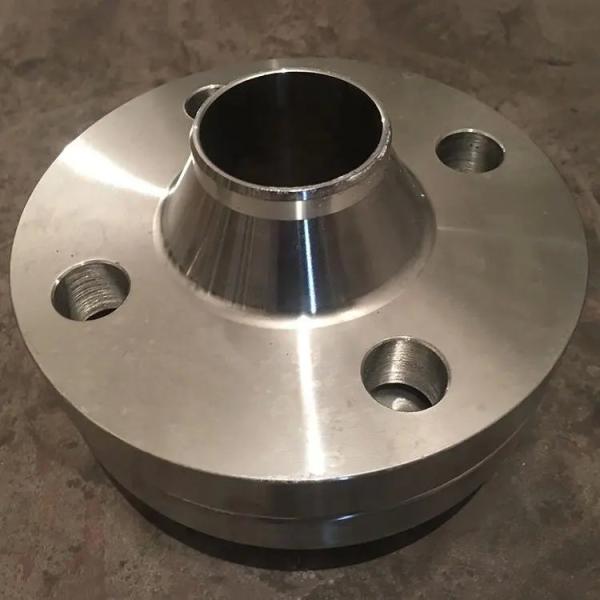

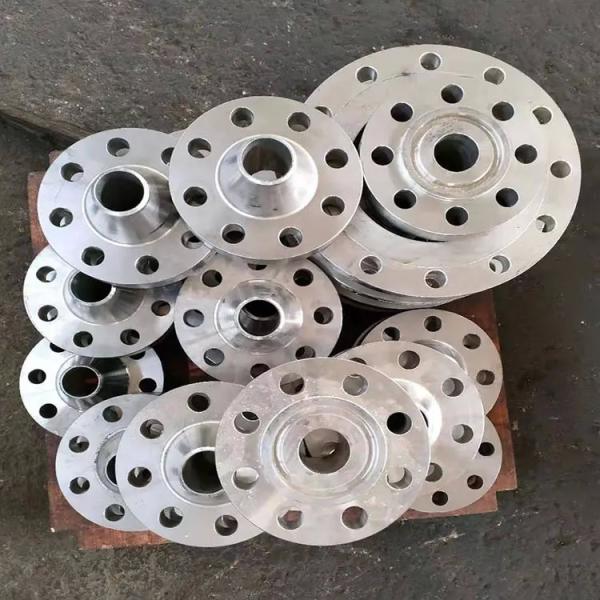

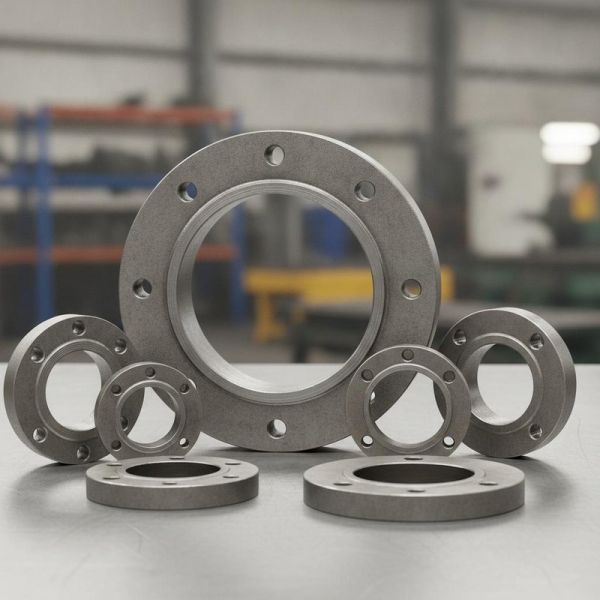

S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
S420N welding Neck flanges 1.8902 steel forged welding neck flanges Forged steel neck flanges
Specifications
Material :
S420N
Steel Number :
1.8902
Type :
welding neck flanges
flanges :
forged steel flanges
Description
Grade :S420N
Number:1.8902
Classification:Alloy special structural steel
Standard:
EN 10025-3: 2004 Hot rolled products of structural steels. Technical delivery conditions for normalized/normalized rolled weldable fine grain structural steels
EN 10113-2: 1993 Hot-rolled products in weldable fine grain structural steels. Delivery conditions for normalized/normalized rolled steels


Chemical composition % of steel S420N (1.8902): EN 10025-3-2004
Nominal thickness =< 63(mm) CEV max = 0.48
Nominal thickness from 63 to 100 (mm) CEV max = 0.50
For long products the P and S content can be 0.005% higher
For railway application a maximum S content of 0.01% may be agreed at the time of enquiry and order
In sufficient other N-binding elements are present the minimum total Al content does not applay
Cu content above 0.4% may cause hot shortness during hot forming
CSiMnNiPSCrMoVNNbTiAlCuCEV
max 0.2max 0.61 - 1.7max 0.8max 0.03max 0.025max 0.3max 0.1max 0.2max 0.025max 0.05max 0.05max 0.02max 0.55max 0.52

Mechanical properties of steel S420N (1.8902)
Nominal thickness (mm):to 100100 - 200200 - 250
Rm - Tensile strength (MPa)520-680500-650500-650
Nominal thickness (mm):to 1616 - 4040 - 6363 - 8080 - 100100 - 150150 - 200200 - 250
ReH - Minimum yield strength (MPa)420400390370360340330320
KV - Impact energy (J) longitud., (+N)+20°
55		0°
47		-10°
43		-20°
40
KV - Impact energy (J) transverse, (+N)+20°
31		0°
27		-10°
24		-20°
20
Nominal thickness (mm):to 1616 - 4040 - 6363 - 8080 - 200200 - 250
A - Min. elongation Lo = 5,65 √ So (%)191919181818

Equivalent grades of steel S420N (1.8902)
EU
EN		USA
-		Germany
DIN,WNr		Japan
JIS		France
AFNOR		European old
EN		Italy
UNI		Spain
UNE		China
GB		Russia
GOST		Inter
ISO
S420N
A255Gr.D
A633E
StE420
SM490A
SM490C
E420R
FeE420KGN
FeE420KGN
AE420KG
Q420D
16G2AF
E420
