Anti Corrosion Precision Stainless Steel Tubing S235JRG2 Material Number 1.0038
Anti Corrosion Precision Stainless Steel Tubing S235JRG2 Material Number 1.0038
Specifications
Brand Name :
Global
Model Number :
2inch
Certification :
API/CE/TUV/ISO
Place of Origin :
China
MOQ :
1 tons
Price :
500 usd/ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Tons
Delivery Time :
5-8 working days
Packaging Details :
Standard exported package
Thickness :
1.3 - 16 mm
Section shape :
Round
Technique :
Hot Rolled
Application :
Boiler Pipe
Special pipe :
Thick Wall Pipe
Surface treatment :
anti-corrosion coating
Description

Steel and Pipe Price list 2019 , With the steel Pipe grade : S235JRG2 Steel Pipe Material Number : 1.0038 seamless Steel Pipes

What's theS235JRG2 Steel Pipe specification, S235JRG2 Steel Pipe chemistry, S235JRG2 Steel Pipe equivalent, S235JRG2 Steel Pipe Mechanical Properties?S235JRG2 Steel Pipe manufacturer in China.

S235JRG2 Steel Pipe

Grade : S235JRG2
Number: 1.0038
Classification: ??? According EN 10025-2 steel number 1.0038 named S235JR ???
Standard:
EN 10250-2: 2000 Open steel die forgings for general engineering purposes. Non-alloy quality and special steels

S235JRG2 Steel Pipe Chemical composition

Chemical composition % of steel S235JRG2 (1.0038): EN 10250-2-2000
For forgings with an equivalent diameter or thickness > 100 mm the carbon content shall be agreed beetween purchaser and supplier.
C Si Mn Ni P S Cr Mo Al -
max 0.2 max 0.55 max 1.4 max 0.3 max 0.045 max 0.045 max 0.3 max 0.08 min 0.02 Cr+Mo+Ni < 0.48

S235JRG2 Steel Pipe Mechanical properties of steel S235JRG2 (1.0038)

Mechanical properties of steel S235JRG2 (1.0038)

Nominal thickness (mm): to 100 100 - 250 250 - 500
Rm - Tensile strength (MPa) (+N) 340 340 340


Nominal thickness(mm): to 100 100 - 250 250 - 500
Re - Upper yield strength (MPa) (+N) 215 175 165


S235JRG2 Steel Pipe Equivalent grades of steel S235JRG2 (1.0038)
Warning! Only for reference
EU
EN		 USA
-		 Germany
DIN,WNr		 Japan
JIS		 France
AFNOR		 England
BS		 European old
EN		 Italy
UNI		 Spain
UNE		 China
GB		 Sweden
SS		 Poland
PN		 Czechia
CSN		 Finland
SFS		 Austria
ONORM		 Russia
GOST		 Inter
ISO
S235JRG2
Gr.36
RSt37-2
S235JRG2
SS330
E24-2NE
40B
Fe360BFN
S235JRG2
AE235B-FN
Q235C
1312-00
St3S
11375
Fe37B
RSt360B
St3ps
St3sp
Fe360B
Nominal thickness (mm): to 100 100 - 250 250 - 500
A - Min. elongation at fracture (%) longitud., (+N) 24 23 23
A - Min. elongation at fracture (%) transverse, (+N) 17

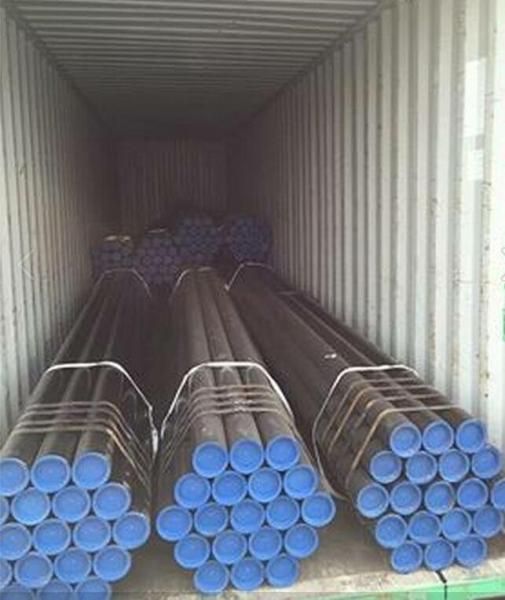

S235JRG2 Steel Pipe Pipe Package
