5.8-12m Length Alloy Steel Seamless Pipes 25CrMo4 Alloy Tubes Material Number 1.7218
5.8-12m Length Alloy Steel Seamless Pipes 25CrMo4 Alloy Tubes Material Number 1.7218
5.8-12m Length Alloy Steel Seamless Pipes 25CrMo4 Alloy Tubes Material Number 1.7218
5.8-12m Length Alloy Steel Seamless Pipes 25CrMo4 Alloy Tubes Material Number 1.7218
Specifications
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Alloy or not :
Is Alloy
Surface treatment :
Galvanized,black painted
Thickness :
2 - 70 mm
Standard2 :
ASTM A106-2006
Length :
5.8-12m
Usage :
Transportation oil and water
Description

25CrMo4 Alloy Tubes , Material Number : 1.7218 , 25CrMo4Material , 25CrMo4 Steel , 1.7218 Material

What's the 25CrMo4 Alloy Tubes specification, 25CrMo4 Alloy Tubes chemistry, 25CrMo4 Alloy Tubes equivalent, 25CrMo4 Alloy Tubes Mechanical Properties?25CrMo4 Alloy Tubes manufacturer in China.

25CrMo4 Alloy Tubes Similar Desigantion :

27CrMo4-2 , 30CrMo4 , SS2215 , 4130


25CrMo4 Alloy Tubes Chemical Composition (in weight %)

C Si Mn Cr Mo Ni V W Others
0.25 max. 0.40 0.75 1.05 0.23 - - - -


25CrMo4 Alloy Tubes Description

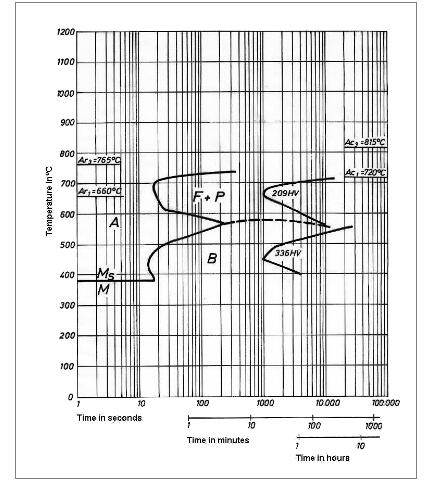

Continuous Cooling Transformation (CCT) Diagram
25CrMo4 Alloy Tubes Applications
Statically and dynamically stressed components for vehicles, engines and machines - axles, turbine components, chains, forgings, etc.

25CrMo4 Alloy Tubes Physical properties (average values) at ambient temperature
Statically and dynamically stressed components for vehicles, engines and machines - axles, turbine components, chains, forgings, etc.

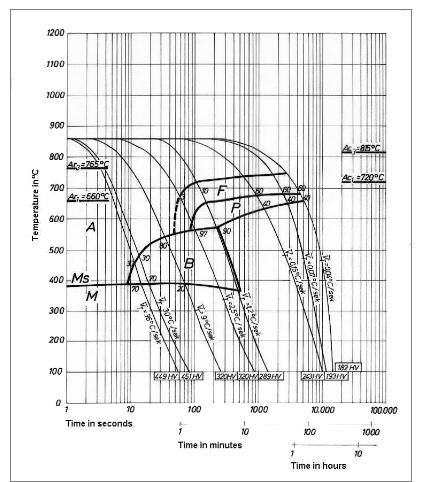

25CrMo4 Alloy Tubes Continuous Cooling Transformation (CCT) Diagram


25CrMo4 Alloy Tubes Continuous Cooling Transformation (CCT) Diagram


25CrMo4 Alloy Tubes , Material Number : 1.7218 Soft Annealing

Mechanical Properties in Hardening and Tempering Condition

25CrMo4 Alloy Tubes , Material Number : 1.7218 Noramlizing

Temperature: 840-900oC.

25CrMo4 Alloy Tubes , Material Number : 1.7218 Hardening

Harden from a temperature of 840-870, 850-880oC followed by water or oil quenching.



25CrMo4 Alloy Tubes , Material Number : 1.7218 Tempering

Tempering temperature: 540-680oC.

25CrMo4 Alloy Tubes , Material Number : 1.7218 Mechanical Properties in Hardening and Tempering Condition


Diameter (mm) 0.2 % proof stress (N/mm2) Tensile strength (N/mm2) Elongation (%) Reduction of area (%) Notch impact energy (ISO-V) (J)
up to 16 700 900-1100 12 50 50
17-40 600 800-950 14 55 55
41-100 450 700-850 15 60 55
101-160 400 650-800 16 60 55



25CrMo4 Alloy Tubes , Material Number : 1.7218 Forging


Hot forming temperature: 1050-850oC.
