Specifications
Brand Name :
TANKII
Model Number :
0Cr25Al5
Certification :
ISO9001:2008
Place of Origin :
Shanghai, China
MOQ :
20kg
Price :
To negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000+TON+YEAR
Delivery Time :
7-15 DAYS
Packaging Details :
Spool, Coil, Carton, Wooden case with plastic film according to per client's requirements
Chemical Composition :
Ferro Bal. Chrome 20 Aluminum 6
Property :
Magnetic, High Temperature Resiatance
After-Sales :
Good Service, Timely Comunication
Type :
Bare
Product Form :
Round Wire/ Strip/ Foil
Conductor :
Solid
Description

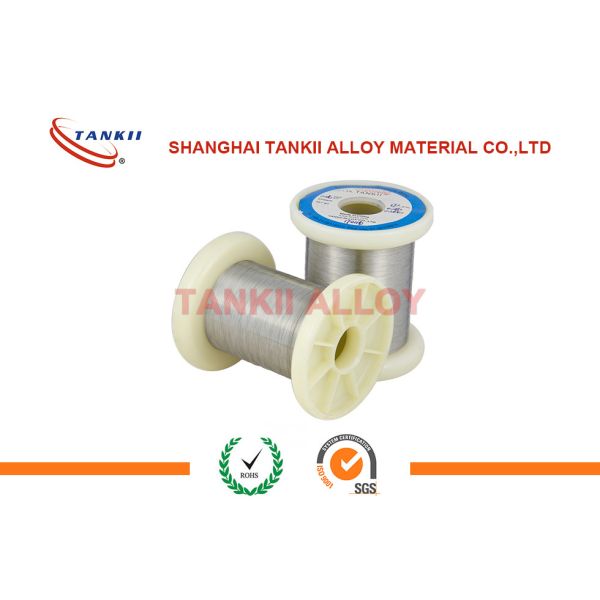

Alloy 875 Magnetic Round Fecral Wire Good Form Stability For Precision Resistor

General Description

Fe-Cr-Al alloy wires are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium and produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.
The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Fe-Cr-Al wire was shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon(strip).

FeCrAl Electrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is small, high operating temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price, it is widely used in industrial electric furnace, household appliances, far infrared device ideal heating material.
FeCrAl type:1Cr13AI4, 0Cr21AI4, 0Cr21AI6, 0Cr25AI5, 0Cr21AI6 Nb, 0Cr27AI7Mo2 etc.Series electric flat belt, electric fire wire


Application
Our products (FeCrAl) high resistance electric heating wire materials are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliances, glass and other civil or industrial fields.

Product forms and size range
Round wire
0.010-12 mm (0.00039-0.472 inch) other sizes are available on request.

Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 60, depending on alloy and tolerance
Other sizes are available on request.

Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.

Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.

In order to extend the service life, customers need to do pre oxidation treatment before using. The method is to heat alloy elements which have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.

Alloy 200 Nickel 200 N02200
Alloy 201 Nickel 201 N02201
Alloy 400 Monel 400 N04400
Alloy K-500 Monel K-500 N05500
Alloy 600 Inconel 600 N06600
Alloy 601 Inconel 601 N06601
Alloy 625 Inconel 625 N06625
Alloy 718 Inconel 718 N07718
Alloy 800 Incoloy 800 N08800
Alloy 800H Incoloy 800H N08810
Alloy 800HT Incoloy 800HT N08811
Alloy 825 Incoloy 825 N08825
Alloy C-276 Hastelloy C-276 N10276
Alloy C-4 Hastelloy C-4 N06455
Alloy C-22 Hastelloy C-22 N06022
Alloy 2000 Hastelloy C-2000 N06200
Alloy B-2 Hastelloy B-2 N10665
Alloy B-3 Hastelloy B-3 N10675
Alloy X HASTELLOY-X N06002
Alloy G-30 HASTELLOY G-30 N06030
Alloy X-750 INCONEL X-750 N07750
Alloy 20 Carpenter 20Cb3 N08020
Alloy 904L 904L N08904
Alloy 254 254 SMO S31254
Stainless 6Mo AL-6XN N08367
Stainless 6Mo 6Mo N08926


Alloy 875 Magnetic Round Fecral Wire Good Form Stability For Industrial FurnaceAlloy 875 Magnetic Round Fecral Wire Good Form Stability For Industrial Furnace
