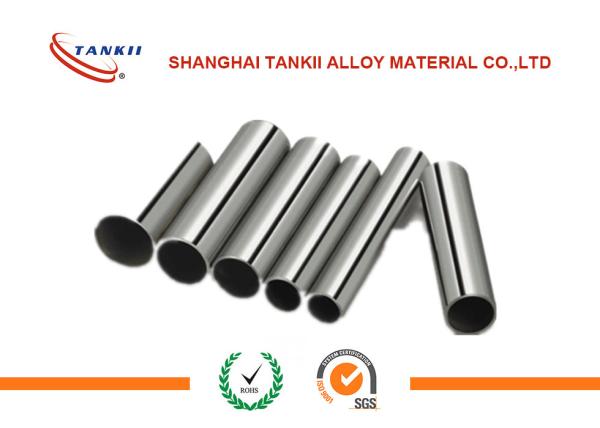

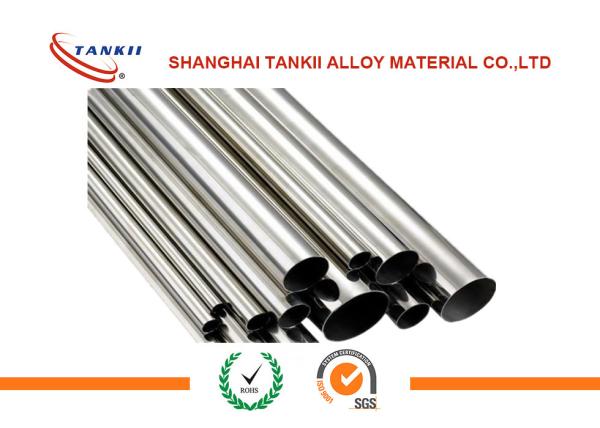

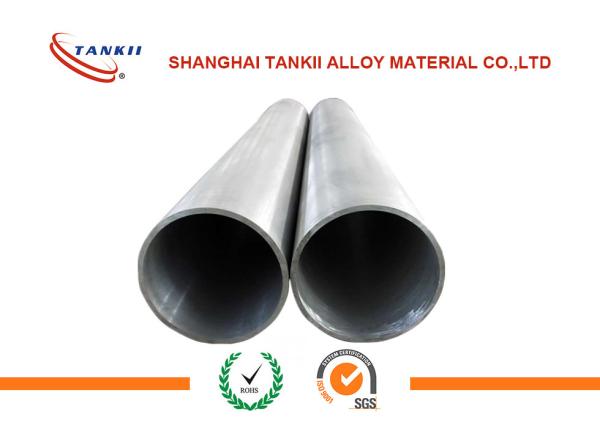

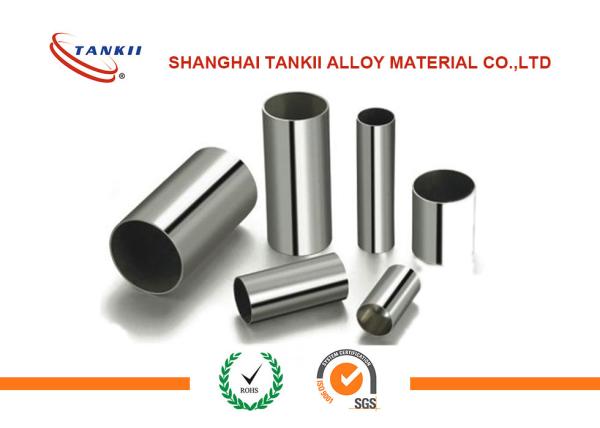

Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
Specifications
Brand Name :
TANKII
Model Number :
Monel 400
Certification :
ISO9001: 2008
Place of Origin :
Shanghai, China
MOQ :
20kg
Price :
To negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200+TON+MONTH
Delivery Time :
7-15 DAYS
Packaging Details :
Carton, wooden case according to custom's requirements
Material :
Copper, Nickel
Colour :
Silver
Shape :
Pipe/ Tube
Shipment :
By Air, Sea, Express
Alloy or not :
Is alloy
Application :
Oil Industry, Elastic Parts
Description

Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant

Alloy K-500 has approximately twice the tensile strength and triple the yield strength of Alloy 400. The strength of Alloy K-500 is maintained to 1200 degrees Fahrenheit, but stays ductile and tough down to temperatures of -400 degrees Fahrenheit. Alloy K-500 also stays non-magnetic to -200 degrees Fahrenheit.
Additional characteristics of Alloy K-500 include outstanding corrosion resistance in a wide range of chemical and marine surroundings, from salts and alkalis, non-oxidizing acids to pure water. Alloy K-500 is non-magnetic and spark resistant. It is also recommended that Alloy K-500 be annealed when it is welded and that any weldments be stress relieved prior to aging.

Monel K-500 Chemical composition:

Alloy % Ni Cu Al Ti Fe Mn S C Si
Monle K500 Min. 63 27.0 2.30 0.35
Max. 33.0 3.15 0.85 2.0 1.5 0.01 0.25 0.5


Monel K-500 Physical properties:

Density 8.44 g/cm3
Melting point 1315-1350°C


Monel K-500 minimum mechanical properties in the room temperature:

Status Tensile strength
Rm N/mm2		 Yield strength
RP0.2N/mm2		 Elongation
A5 %
Monel K500 1100 790 20

Industries Served:

  • gas & oil extraction
  • chemical processing
  • marine engineering

Specifications

PROPERTIES

Grey powder with spherical shape.

APPLICATION

Mainly used in Ni-Cr and Ni-H battery, filter, war industry, agglomerant for high density and melting point materials, powder metallurgy's additive, precision alloy, special steel etc.

Inconel Series Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668
Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856
Inconel 725 / UNS N07725
Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669
Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
Hastelloy Series Hastelloy B / UNS N10001
Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617
Hastelloy C
Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610
Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602
Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819
Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Incoloy Series Incoloy 925/UNS N09925-Oil
Incoloy 825 / UNS N08825 / NS142 / W.Nr 2.4858
Incoloy 800HT / UNS N08811 / W.Nr 1.4954
Incoloy 800H/UNS N08810/W.Nr 1.4876
Incoloy A-286 / UNS S66286 / W. Nr. 1.4980
Monel Series Monel 400 / UNS N04400 / W.Nr 2.4360
Nickel Series Nickel 200 / UNS N02200 / W.Nr 2.40
Nickel 201 / GB/T N02201 / W.Nr 2.4060

Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion ResistantMonel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion ResistantMonel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant

Monel 400 / K500 Copper Nickel Pipe Silver Color With Good Corrosion Resistant
