Specifications
Brand Name :
Tankii
Model Number :
K type thermocouple wire
Certification :
ISO RoHS AISI ASTM GB
Place of Origin :
Chian
MOQ :
20Kg
Price :
USD 20/Kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200Tons/Month
Delivery Time :
10-15 woking days
Packaging Details :
Wooden Pallet, Wooden Case, Spool
Packing :
Case
Craft :
Cold Rolled
Characteristics :
High Resistivity, Good Oxidation Resistance
Sample :
Free
Shape :
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil
Surface :
Bright/ oxidized
Dia :
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm
Grade :
I/II/III
Tensile strength :
≥196
Leading time :
about 5 days
Transport Package :
100m/Coil 500m/Coil
wire status :
soft, bright , annealing
Description

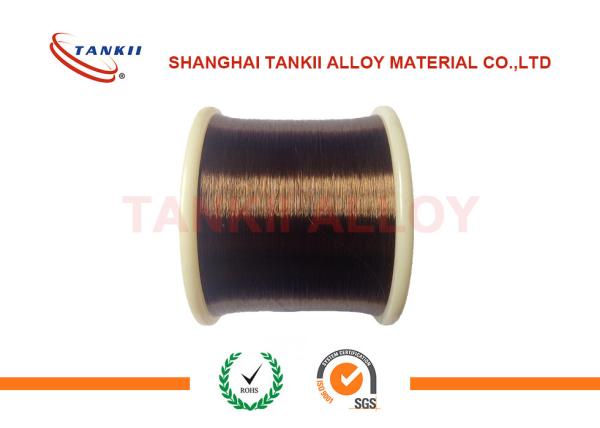

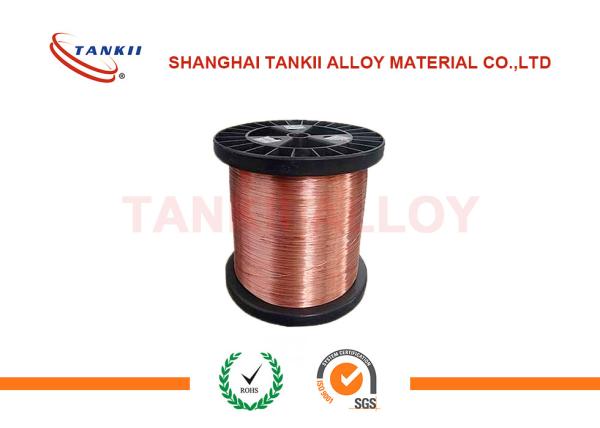

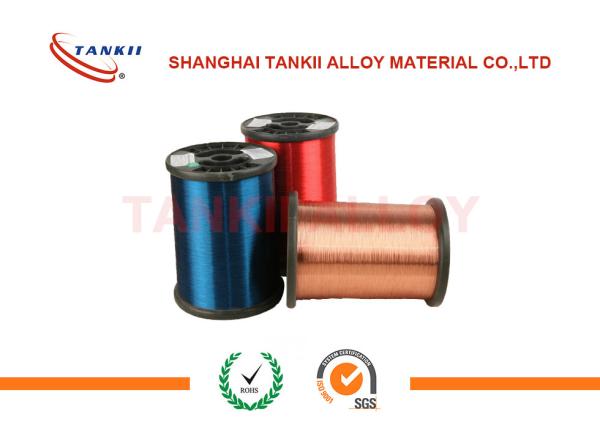

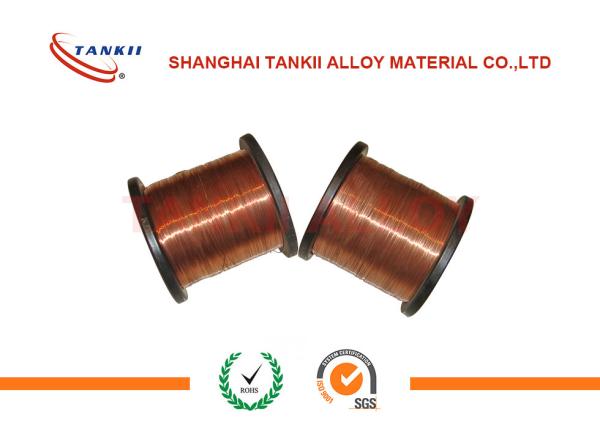

46SWG,44SWG,43SWG colorful bright K type thermocouple wire enamelled wire

Packing & Delivery for thermocouple wire


Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Detail: By sea/ air. About 7 days, as the order quantity.

Specifications:
Enameled Copper wire
Conductor:copper
Diameter: 0.02-8.00mm
Standard: IEC, NEMA, GB,JIS
Thermal Class: 155 centigrade
Enamelled types : U PEW/F
Certification:UL Approved, iso9001, iso14001,RoHS,REACH

The Type T thermocouple wire is composed of a copper (+) wire versus a nickel-45% copper (-) wire. The Type of thermocouple wire is frequently referred to as copper-constantan. This type of thermocouple can be used in oxidizing, reducing, or inert atmospheres with a service temperature range between -200°C and 370°C (-330°F to 700°F). The high temperature use of this thermocouple is also limited due to rapid oxidation of the copper element. The Type T thermocouple wire is one of the few thermocouples which have established limits of error for use in subzero and cryogenic applications. This is possible due to the Type T's superior corrosion resistance in moist environments.
Detailed Parameter of thermocouple wire

Chemical Composition
Conductor Name Polarity Code Nominal Chemical Composition /%
Ni Cu

Copper
Positive
TP
--
100

Copper-Nickel
Negative
TN
45
55
Working Temperature Range

Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC

0.2, 0.3		 150
200

0.5, 0.8		 200
250

1.0, 1.2		 250
300

1.6, 2.0
300
350
Production Processing of thermocouple wire:
SZ CABLE mainly supply:
1-Enameled Wire( CCA wire, Al. wire, Copper wire)
2-Electric wire( CCA wire, Al. wire, Copper wire)
3-Electric cable( CCA wire, Al. wire, Copper wire)
4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)
5-Enameling machine(size from 0.02-8.00mm wire)

Advantages:
as the most traditional type of enameled wire, the application field is wide, soldering convenient, performance stable.

Disadvantages:
high cost of production.

Product details:

Enameled Type Polyester Modified Polyester polyester-imide Polyamide-imide Polyurethane
Insulation Type PEW/130 PEW(G)/155 EIW/180 EI/AIW/200 UEW/130,155,180
Thermal class 130, CLASS B 155, CLASS F 180, CLASS H 200, CLASS C B,F,H CLASS
Conductor Cu Cu Cu Cu Cu
Size(mm) supply 0.02-8.00 0.02-8.00 0.02-8.00 0.02-8.00 0.11-8.0
Enamel thickness Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3) Grade(0,1,2,3)
Standard

IEC60317-0-2

IEC60317-29

MW36-A

SZ Enterprise standard

SJ/T11223-2000

IEC60317-0-2

IEC60317-29MW36-A

SZ Enterprise standard

SJ/T11223-2000

IEC60317-0-2

IEC60317-29

MW36-A

SZ Enterprise standard

SJ/T11223-2000

IEC60317-0-2

IEC60317-29

MW36-A

SZ Enterprise standard

SJ/T11223-2000

IEC60317-0-2

IEC60317-29

MW36-A

SZ Enterprise standard

SJ/T11223-2000

Product Features:
High breakdown voltage
Good adhesion
Tin soldering
Few pinhole
Sustained and stable quality

Main Applications :
All kinds of household electric motors, vacuum cleaner motor, electric motor
All kinds of transformers, inductors, rectifiers
All kinds of fan motor
All kinds of high frequency electric appliance

Polyester and modified polyester enameled copper wire.
Thermal class 130,155 degree. The product has high mechanical strength, and has good elasticity, adhesion, electrical performance and solvent resistance, which is a poor thermal shock resistance and low moisture resistance. Widely used in a variety of motor, electrical, instrumentation, telecommunications equipment and home appliances.
