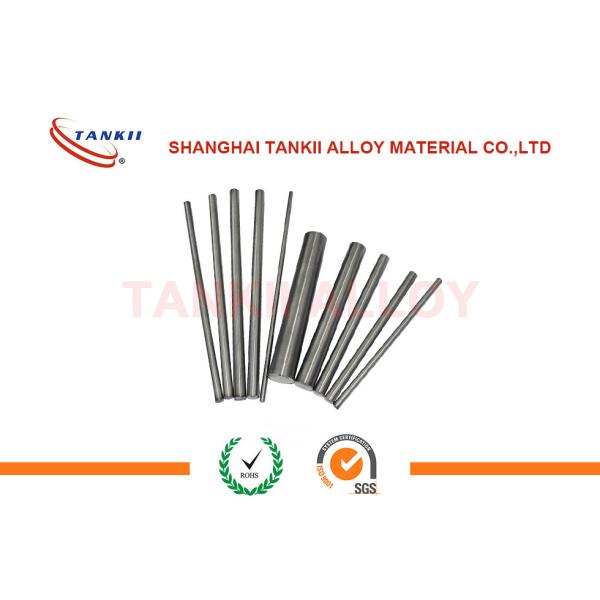

Soft Magnetic Alloy Rod Co50V2 Precision Alloy For Magnetostrictive Transducer Core
Soft Magnetic Alloy Rod Co50V2 Precision Alloy For Magnetostrictive Transducer Core
Soft Magnetic Alloy Rod Co50V2 Precision Alloy For Magnetostrictive Transducer Core
Soft Magnetic Alloy Rod Co50V2 Precision Alloy For Magnetostrictive Transducer Core
Specifications
Brand Name :
Tankii
Model Number :
1J22/ HiperCo50/ 50КФ/ Supermendur
Certification :
ISO 9001 and RoHS
Place of Origin :
China
MOQ :
5KG
Price :
USD 500~ 1000$/ KG
Payment Terms :
T/T, Western Union
Supply Ability :
100KG per month
Delivery Time :
35~40 days
Packaging Details :
Waterproof paper, Carton and Wooden Case
Features :
High Saturation Magnetization
Theory :
For Core Of Magnetostrictive Transducer
Standard :
GB/T 15002-1994
Shape :
rod
Material :
Fe-Co-V Alloy
Condition :
Soft, Bright
Curie point :
980C
resistivity :
0.4uΩ·m
Description

Soft Magnetic Alloy Rod 1J22 rod Co50V2 For Core Of Magnetostrictive Transducer

1 j22 is high saturation magnetic induction intensity of iron, cobalt, vanadium soft magnetic alloy in existing soft magnetic alloy calcium alloy has the highest saturated magnetic induction intensity (2.4 T), and high Curie temperature (980 ºC), saturation magnetostriction coefficient of maximum (60 ~ 100 * 10-6).Due to the high saturation magnetic induction intensity, when making an equal power of motor, can greatly reduce the volume, when making electromagnet, under the same cross-sectional area can produce larger suction force.Due to their high Curie point, can make the alloy can be in other soft magnetic alloy material has been completely demagnetization work under the high temperature, and maintain good magnetic stability.Due to the large magnetostrictive coefficient, and is suitable for used as a magnetostrictive transducer, output energy is high, the efficiency is high.The resistivity of low alloy (0.27 mu Ω m.), is not suitable for use under high frequency.Price is more expensive, easily oxidized, processing performance is poor, adding suitable nickel or other elements, can improve the processing performance.

Application: suitable for making quality is light, small volume of aviation and space flight with electrical components, such as, micro-motor rotor magnet pole head, relays, transducers, etc

Chemical composition

Ingredients C Mn Si P S
≤
content 0.04 0.3 0.3 0.02 0.02
Ingredients Cu Ni Co V Fe
≤
content 0.2 0.5 49.0~51.0 0.80~1.80 Bal


Chemical properties

Resistivity μΩ·m density g/cm³ Curie point TC/ºC Saturation magnetostriction coefficient
0.40 8.20 980 60~100


Mechanical properties

hardness Tensile strength
Hard state HRC35 1323MPa
Soft state HRB90 490MPa

Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.
