Nicr Alloy Nichrome Wire NiCr80 / 20 Magnetic Alloy for Resistance Wire
Nicr Alloy Nichrome Wire NiCr80 / 20 Magnetic Alloy for Resistance Wire
Specifications
Brand Name :
TANKII
Model Number :
NiCr80/20.
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
20kg
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
20, 000kg/month
Description

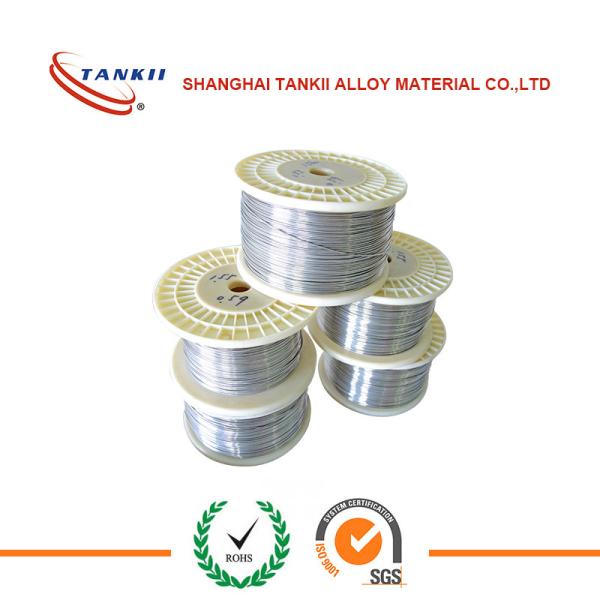

Nicr Alloy Nichrome Wire NiCr80 / 20 Magnetic Alloy for Resistance Wire

NiCr80/20

Nichrome, a non magnetic alloy of nickel and chromium, is commonly used to make resistance wire.

Because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.

Nichrome wire is commonly used in ceramics as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used because of its ability to withstand the high temperatures that occur when a clay work is fired in a kiln.

Ni80Cr20

Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.08

0.02

0.015

0.60

0.75~1.60

20.0~23.0

Bal.

Max 0.50

Max 1.0

-

Mechanical Properties

Max Continuous Service:

Resisivity( 20℃)/Ω·m:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1200℃

1.09 +/-0.05 (Dia: <0.5mm)

1.13+/-0.05 (Dia: 0.50-3.00 mm)

1.14+/-0.05 (Dia: >3.0mm)

8.4 g/cm3

60.3 KJ/m·h·℃

18.0 α×10-6/℃

1400 ℃

Min 20%

Austenite

nonmagnetic
