Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG
Specifications
Brand Name :
TANKII
Model Number :
CuNi23
Certification :
ROHS,SGS
Place of Origin :
China
MOQ :
5kg
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
in Spool
Insulaltion :
Enamelled
Temper Class :
:133℃,150℃180℃,200℃,220℃
Colour of Enamelled :
Black,Red,Nature,Blue,Green,yellow
Bare Conductor :
Nichrome
Shape :
Round Wire,Flat Wire
Application :
Precision Resistor
Description

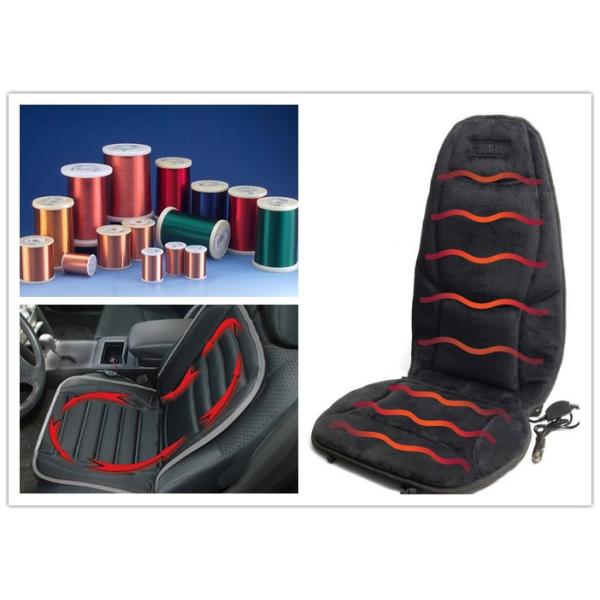

Enamelled Nichrome Wire ( 36 SWG 200℃, Polyamide-Imide) for Automobile Seat Heating

Application of nichrome alloy wire

A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees

F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating

elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of

chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking

or burning out.

Applications:

  • These elements are commonly found in precision heating applications such as Medical Diagnostics, Satellite, and
  • Aerospace
  • Electrical appliance industry
  • Ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements, cartridge
  • elements

Chemical Composition and Main Properties of Nichrome Wire

Alloy Nomenclature Performance

Ni80Cr20

Ni70Cr30

Ni60Cr15

Ni35Cr20

Ni30Cr20

Main Chemical composition

Ni

Rest

Rest

55.0-61.0

34.0-37.0

30.0-34.0

Cr

20.0-23.0

28.0-31.0

15.0-18.0

18.0-21.0

18.0-21.0

Fe

≤1.0

≤1.0

Rest

Rest

Rest

Max. continuous service temp. of element(ºC)

1200

1250

1150

1100

1100

Resistivity at 20ºC (μΩ·m)

1.09

1.18

1.12

1.0

1.04

Density(g/cm3)

8.40

8.10

8.20

7.90

7.90

Thermal conductivity (KJ/m·h·ºC)

60.3

45.2

45.2

43.8

43.8

Coefficient of lines expansion(α×10-6/ºC)

18.0

17.0

17.0

19.0

19.0

Melting point approx.( ºC)

1400

1380

1390

1390

1390

Elongation at rupture(%)

>20

>20

>20

>20

>20

Micrographic structure

austenite

austenite

austenite

austenite

austenite

Magnetic properties

nonmagnetic

nonmagnetic

Weak magnetic

Weak magnetic

Weak magnetic

Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220

Medical Diagnostics Enamelled Nichrome Wire enamelled copper wire 36 SWG

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size

FAQ

Q1.Do you attend exhibition every year?

A .Yes

Q2.Is there any discount of the nickel wire?

A. Yes. Bigger quantity will get a discount.

Q3.Information needed if I want a quotation?

A Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.

Q4. Can we visit your company/factory before place the order?

A. Yes. Welcome anytime

Q5: How does your factory do regarding quality control?

A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
