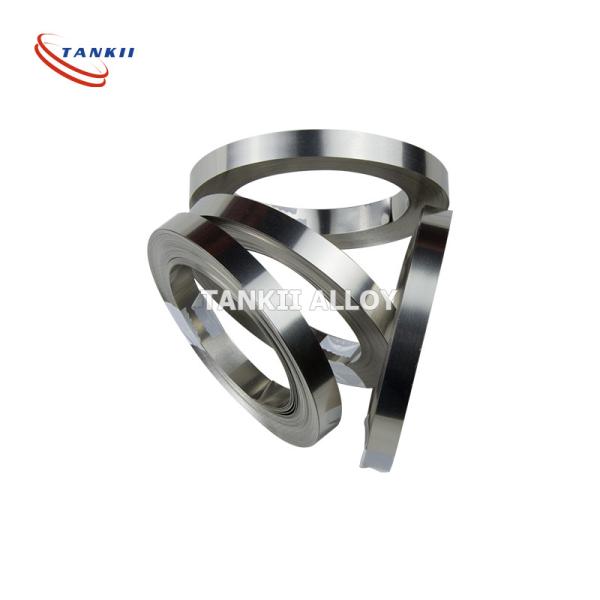

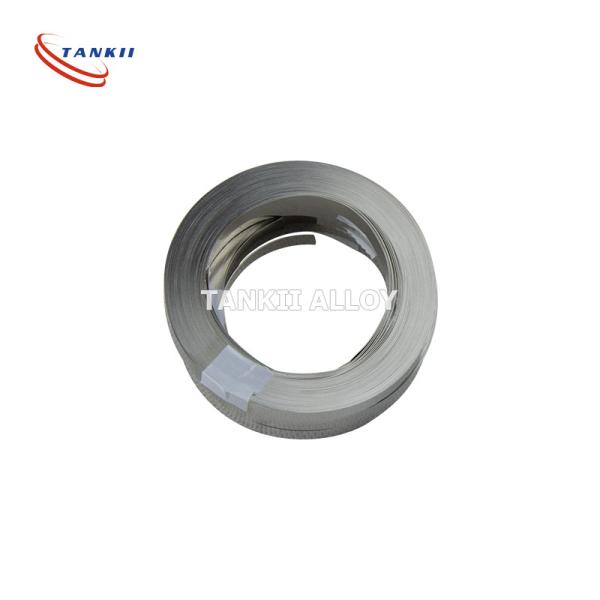

Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery
Specifications
Brand Name :
TANKII
Model Number :
N6 /Ni200
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
20kg
Price :
usd35~65/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 tons/year
Delivery Time :
5~14 dyas after getting the payment
Packaging Details :
In Coil
Item :
Pure Nickel 99.6% Strip/Foil 0.3*28mm Half Hard For Nickel Hydrogen Battery
density :
8.89
stock size :
0.3mm*25mm
Leading time :
2~25 days as order qty
Material :
Ni201
MOQ :
20kg per size
Purity :
more than 99.6%
Advantage :
Strong conductivity
Description


Pure Nickel 99.6% Strip/Foil 0.3*28mm Half Hard For Nickel Hydrogen Battery

Nickel strip Appearance color: silver white status: hard, semi-hard, 1/4 hard, soft

Density:= ρ 8.9g/cm3

Purpose: This product is mainly used in the manufacturing of nickel cadmium, nickel hydrogen, lithium batteries, polymer lithium batteries, electric tools, special lamps and other industries.

Advantages of nickel srip: strong conductivity, low resistance, firm welding, good heat dissipation, corrosion resistance and rust resistance.


1. Description
Ni200 nickel strip used as lithium battery pack materials

Tankii Ni200 nickel strip features:
Tensile strength: 250-350Mpa
Specific elongation: 15-25%
We also can provide you nickel tags which can be customised,

2. Features:

It has good mechanical strength,corrosion-resistant and heat-resistance strength.

It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.



3. Details of tankii pure nickel foil

Material Ni200,
Standard ASTM B162 ASTM B880-1988

Specifications

Thickness : 0.025mm~0.1mm

Max Width: 300mm
Lead Time 5~14days
Package Wooden case as outside, carton box as inside
Payment T/T,L/C,Western Union,Money Gram ,Paypal
Delivery state Cold Formed (Y)/ Half Hard (Y2)/ Soft (M)

Product Features

(1)Low Density and High Specification Strength

(2)Excellent Corrosion Resistance

(3)Good resistance to effect of heat

(4)Excellent Bearing to cryogenic property

(5)Nonmagnetic and Non-toxic

Advantages of our company

(1) CE and ISO9001-2008 certified

(2) SGS

(3) Third-party verification service provider

(4) Most convenient transport & quick delivery

(5) Competitive price with best service

(6) Exporting experience over 10 years
Application

Electroplating, Aluminum Coloring: Its mechanical properties

make it excellent for applications in the aerospace and defense industries and in moderately corrosive environments, such as

food processing equipment and chemical shipping drums.

construction of the railroad, highway and so on,different kinds of mechanical equipment, electronics, battery, chemical processing, marine engineering

(1) For vacuum coating

(2) For making valves grid, inner components of valves

(3) For making lead, supporting wire

Physical properties of nickel foil for battery:

Density Melting point Coefficient of expansion Modulus of rigidity Modulus of elasticity Electrical resistivity
Ni200 8.9g/cm3 1446°C 13.3 µm/m °C (20-100°C) 81kN/mm2 204kN/mm2 9.6μW• cm
Ni201 1446°C

13.1µm/m °C

(20-100°C)

 82kN/mm2 207kN/mm2 8.5μW• cm

Composition of nickel foil for battery:

Grade Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01

4. Application:
Shieldingmaterial for communication electronics, antenna material, EMI-shieldingmaterial, spring contact,

flexible terminal, environmentally-friendlyplating-free electronic parts and components, quartz oscillator, high-level material and electric material.
It widely used for core of all kinds of the magnetic head-frequency, magnetic head-core,
Inductor microelement, high frequency induction element, the performace reaches or approaches advanced

Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery

Half Hard 99.6% Pure Nickel Strip / Foil 0.3 X 28mm For Nickel Hydrogen Battery

Should have any question, please contact us freely.
