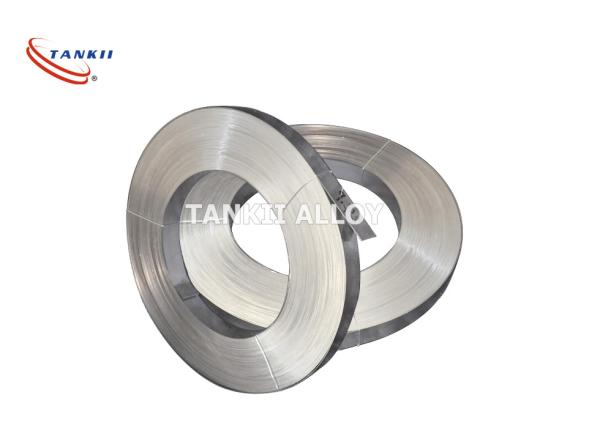

Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials
Specifications
Brand Name :
TANKII
Model Number :
N6 /Ni200
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
20kg
Price :
usd35~65/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 tons/year
Delivery Time :
5~14 dyas after getting the payment
Packaging Details :
In Coil
Item :
Nickel 99.6% Strip
density :
8.9
stock size :
0.3mm*25mm
Leading time :
2~25 days as order qty
MOQ :
20kg per size
Purity :
more than 99.6%
Advantage :
Strong conductivity
Description


Ni201 /N02200 /Nickel 99.6% Strip 0.3*100mm Half Hard For Nickel Cadmium Battery

Nickel wire/strip are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
Dimension:
The thickness and dimensions can be met what customers required.
Features:
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance
Physical properties
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.
Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
Grade Ni+Co Cu Si Mn C Mg S P
N4 99.8 0.015 0.03 0.002 0.01 0.01 0.001 0.001
N6 99.6 0.10 0.10 0.05 0.10 0.10 0.005 0.002
Ni201 ≥99.0 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 /
Ni200 ≥99.2 ≤0.25 ≤0.35 ≤0.35 ≤0.15 / ≤0.01 /

Physical properties of nickel foil for battery:

Density Melting point Coefficient of expansion Modulus of rigidity Modulus of elasticity Electrical resistivity
Ni200 8.9g/cm3 1446°C 13.3 µm/m °C (20-100°C) 81kN/mm2 204kN/mm2 9.6μW• cm
Ni201 1446°C

13.1µm/m °C

(20-100°C)

 82kN/mm2 207kN/mm2 8.5μW• cm

Composition of nickel foil for battery:

Grade Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01

18650 battery nickel strip
H shape nickel strip: 1P, 2P 3P, 4P, 5P, 6P, 7P, 8P, 9P

Model Thickness Distance of two welding centers: 18.5mm
(used for battery pack without battery spacer)		 Distance of two welding centers: 19mm Distance of two welding centers: 19.5mm Distance of two welding centers: 20/20.25mm
Width(mm) Width(mm) Width(mm) Width(mm)
1P 0.15/0.2mm 8 8 8 8
2P 25.5/27 26.5/27 26.5/27 27
3P 44 46 46 47
4P 62.5 65.5 65.5 67
5P 81 85 85 87
6P 99.5 104.5 104.5 107
7P 118 124 124 127
8P 136.5 143.5 143.5 147
9P 155 163 163 167

4. Application:
Shieldingmaterial for communication electronics, antenna material, EMI-shieldingmaterial, spring contact,

flexible terminal, environmentally-friendlyplating-free electronic parts and components, quartz oscillator, high-level material and electric material.
It widely used for core of all kinds of the magnetic head-frequency, magnetic head-core,
Inductor microelement, high frequency induction element, the performace reaches or approaches advanced

Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials

Ni200 Nickel Strip 0.5*180mm Half Hard For Battery Pack Materials

Should have any question, please contact us freely.
