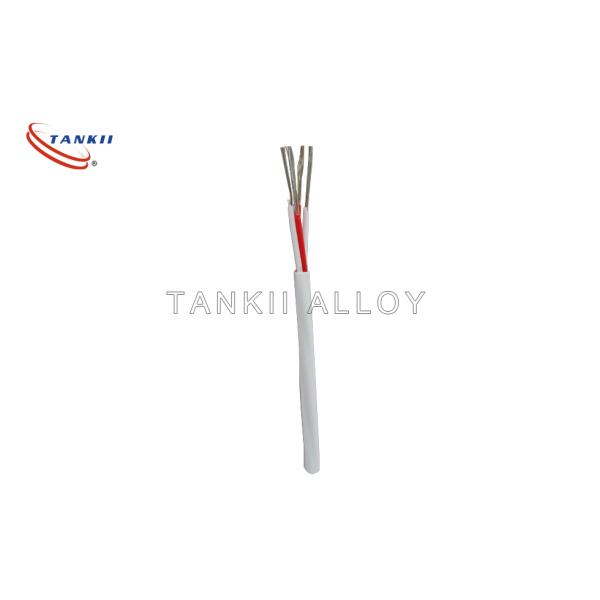

Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Temperature Sensor PVC Insulation 4 Core Rtd Cable
Specifications
Brand Name :
Tankii
Model Number :
Pt100 / RTD
Certification :
Rohs, SGS
Place of Origin :
China
MOQ :
200 Meters
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000Ton per year
Packaging Details :
500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Insulation material :
PVC
Conductor type :
solid or multi
Standard :
ANSI, IEC
Leading time :
5~7 days after getting the deposit
Type :
PT100 , RTD
Item :
Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC
Description
Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC
Resistance Temperature Detectors (RTDs)
There are other temperature measurement technologies than the thermocouple such as RTDs (resistance temperature detector).
In applications with temperatures above 1,200° F (650° C) thermocouple is used. At lower temperatures RTDs are used for their simpler operation and greater sensitivity and stability.
Thermocouples have a better response time.
RTDs are special resistors whose resistance value changes with temperature in a known way.
RTDs are connected to the temperature recording or process control instrumentation using ordinary copper instrumentation cable.
Thermocouple wire is not required to connect an RTD.

Typical RTD cable is standard instrumentation cable in two, three, or four conductors or possibly groups of pairs/triads/quads depending on the type of RTD being used and number of devices being monitored. Individual or overall shielding is often used for noise immunity.
Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC

Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent

Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC

Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment


Temperature Sensor PVC Insulation 4 Core Rtd Cable
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.
Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC
Welcome to call me or email to me for more info on thermocouple cable , RTD cable.
