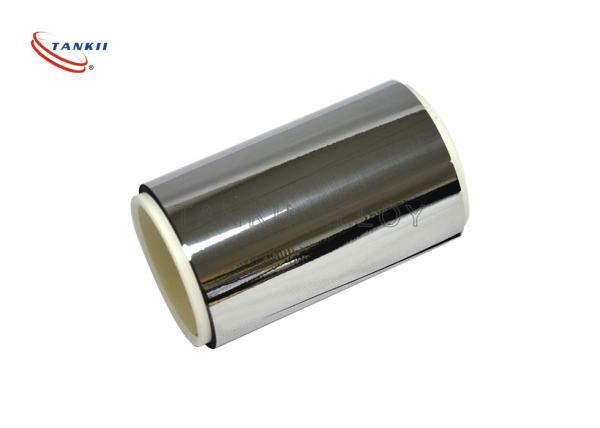

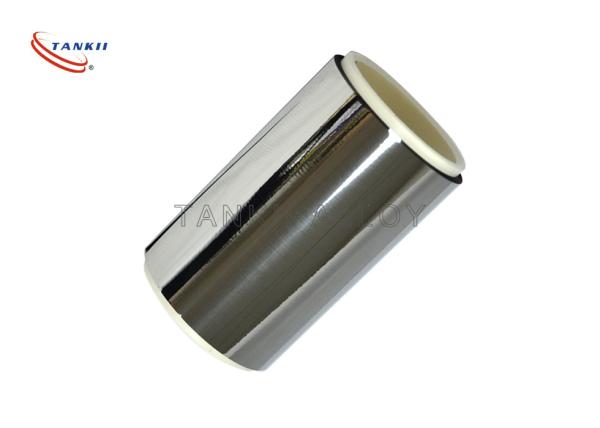

0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
Specifications
Brand Name :
TANKII
Model Number :
CuNi44
Certification :
ISO9001:2015
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
To negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20+TON+MONTH
Delivery Time :
7-15 days
Packaging Details :
Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements
Type :
Resistance Alloy
Color :
Silver
Other alloy :
CuNi23, CuNi40, CuNi30....
Treatment :
Annealing
Thickness :
Required
Packing :
12 spools/ carton
Description

0.05mm Constantan 6J40 Good Resistance Foil for Precision Equipment

Introduction :

CuNi series:

Type Electrical
Resistivity
(20℃Ωmm²/m)		 Temperature
Coefficient of Resistance(10-6/℃)		 Density(g/m³) Max.
Temperature(℃)		 Metlting
Point(℃)
CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9 200 1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400 1280

A copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity.

Constantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures. Other alloys with similarly low temperature coefficients are known, such as Manganin (Cu86Mn12Ni2).

Of all modern strain gauge alloys, Constantan is the oldest, and still the most widely used. This situation reflects the fact that constantan has the best overall combination of properties needed for many strain gauge applications. This alloy has, for example, an adequately high strain sensitivity, or gauge factor, which is relatively insensitive to strain level and temperature. Its resistivity is high enough to achieve suitable resistance values in even very small grids, and its temperature coefficient of resistance is not excessive. In addition, constantan is characterized by good fatigue life and relatively high elongation capability. It must be noted, however, that constantan tends to exhibit a continuous drift at temperatures above 65 °C (150 °F); and this characteristic should be taken into account when zero stability of the strain gauge is critical over a period of hours or days.

We are capable of adding a variety of features to metallic materials

(resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).

We provide customed solutions to your problems with our unique

technologies and well versed knowledge of materials acquired through

our experience of manufacturing 50,000 items.


0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment

0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment

0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
