Specifications
Brand Name :
TANKII
Model Number :
0cr21al6nb
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
30kg
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200+ton+month
Delivery Time :
5-20 days
Packaging Details :
Carton, wooden case according to custom's requirements
Max Continuous Service Temperature :
1350'C
Resisivity at 20'C :
1.45+/-0.07ohm mm2/m
Density :
7.1g/cm3
Coefficient of Thermal Expansion :
16.0×10-6/'C (20'C~1000'C)
Melting Point :
1510'C
Elongation :
Min 12%
Magnetic Property :
magnetic
Description

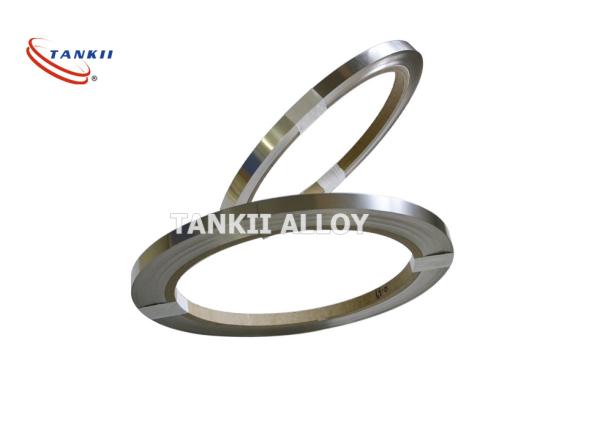

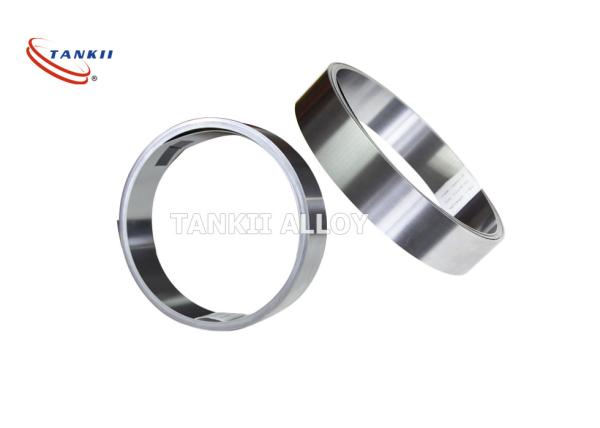

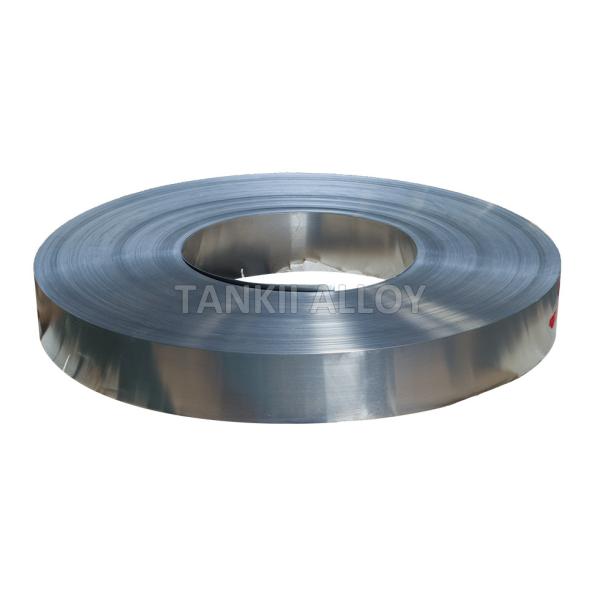

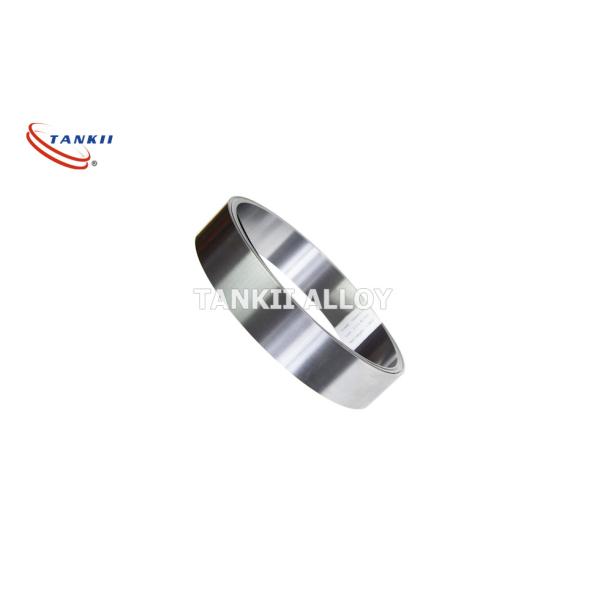

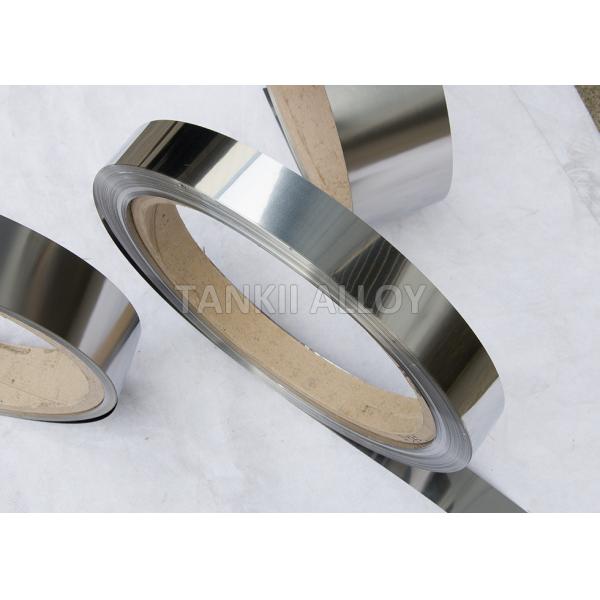

0cr21al6nb Fecral Resistor Strip/Braking Resistance Strip

1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature, It is widely used in industrial electric furnace, household electrical appliance and Far infrared ray device.

2. Specification
Wire:
Diameter: 0.15mm-8.0mm
Strip:
Thickness: 0.6mm-1.5mm
Width: over 40mm


3. Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

4. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

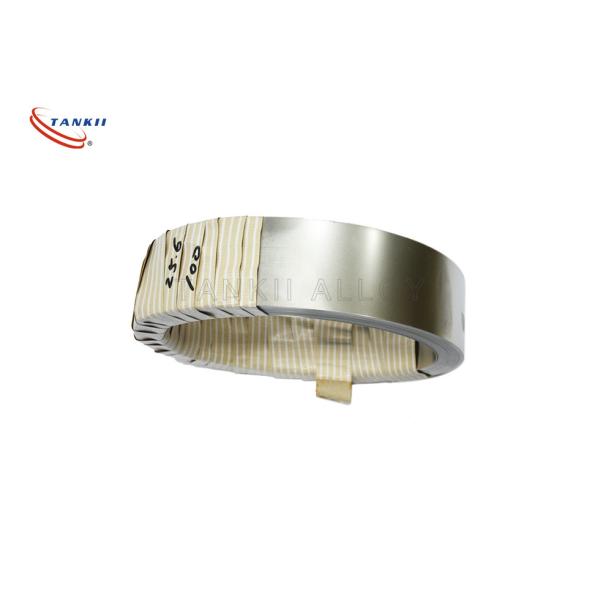

5. Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;

Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD

C P S Mn Si Cr Ni Al Fe Other
Max
0.05 0.025 0.020 0.50 ≤0.6 21.0-23.0 ≤0.60 5.0-7.0 Balance -


Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20'C
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:		 1350'C
1.45+/-0.07ohm mm2/m
7.1g/cm3
46.1 KJ/m@h@'C
16.0×10-6/'C (20'C~1000'C)
1510'C
Min 12%
Ferrite
magnetic

OTHER Chemical Composition And Main Properties Of FeCrAl

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need:

0cr21al6nb Fecral Resistor Strip/Braking Resistance Strip 7.1g/Cm30cr21al6nb Fecral Resistor Strip/Braking Resistance Strip 7.1g/Cm30cr21al6nb Fecral Resistor Strip/Braking Resistance Strip 7.1g/Cm30cr21al6nb Fecral Resistor Strip/Braking Resistance Strip 7.1g/Cm3
