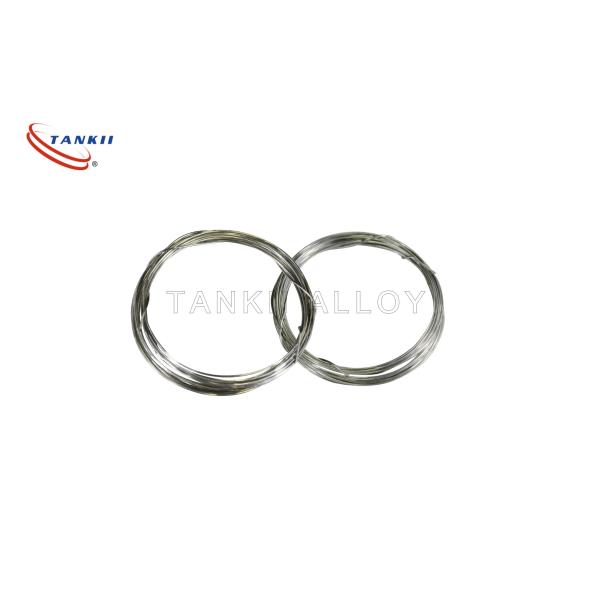

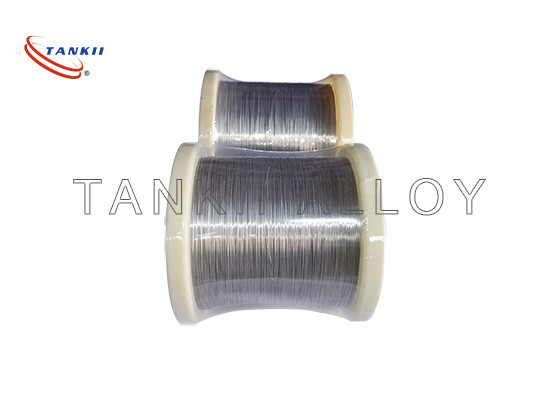

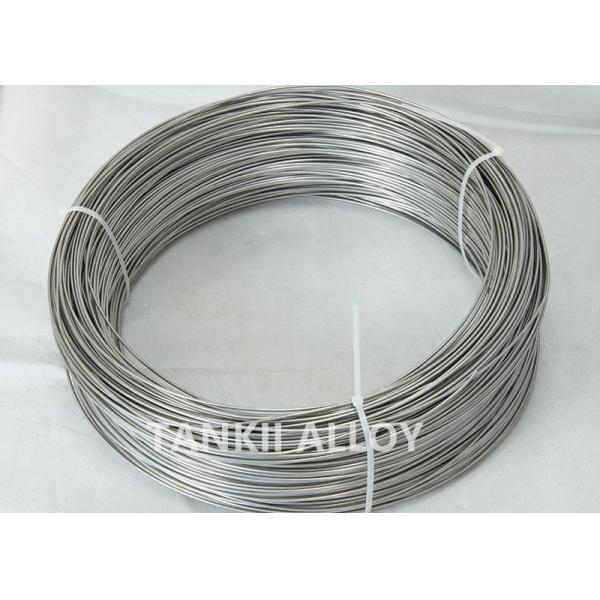

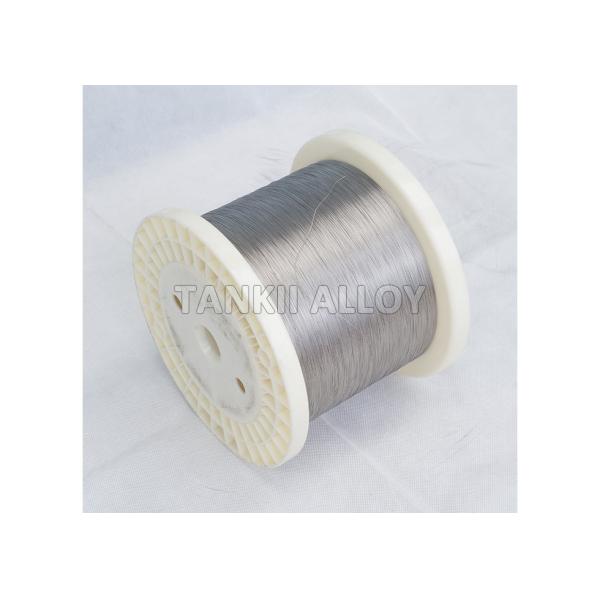

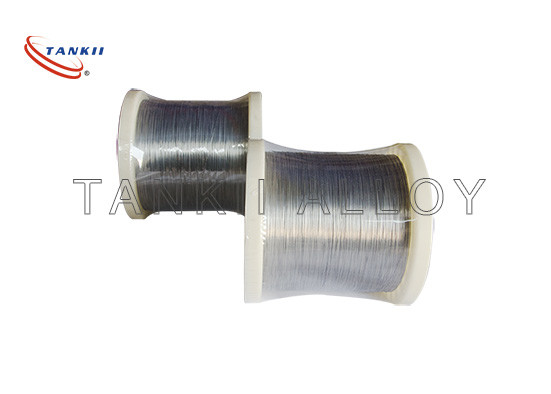

Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Superfine 0.1mm Type K Thermocouple Wire Oxidized
Specifications
Brand Name :
TANKII
Model Number :
type K
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
30kg
Price :
usd+65+kg
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
200+ton+month
Delivery Time :
8-20 days
Packaging Details :
Packaging:Plastic film inside , wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
conductor type :
solid bare
application :
heating
conductor material :
NrCr-NiSi
Surface :
Bright/ oxidized
Description

Product Description
Type K Thermocouple wire superfine wire 0.05mm 0.1mm

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Detailed Parameter

Chemical Composition

Conductor Name
Polarity
Code
Nominal Chemical Composition /%

Ni
Cr
Si

Ni-Cr
Positive
KP
90
10
--

Ni- Si
Negative
KN
97
--
3
Working Temperature

Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC

0.3
700
800

0.5
800
900

0.8,1.0
900
1000

1.2,1.6
1000
1100

2.0,2.5
1100
1200

3.2
1200
1300
Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting


Superfine 0.1mm Type K Thermocouple Wire OxidizedSuperfine 0.1mm Type K Thermocouple Wire OxidizedSuperfine 0.1mm Type K Thermocouple Wire OxidizedSuperfine 0.1mm Type K Thermocouple Wire OxidizedSuperfine 0.1mm Type K Thermocouple Wire Oxidized
