800 Degrees Fiberglass Insulated Nichrome Resistance Wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
Specifications
Brand Name :
Tankii
Model Number :
NiCr80/20
Certification :
ISO9001
Place of Origin :
China
MOQ :
10kg for NiCr2080 wire
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
1000Ton per year
Delivery Time :
About 10 days after gettting the payment
Packaging Details :
500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Material :
NiCr2080 or Ni201
Surface :
Insulation
Item :
leading time: 7 days after getting the deposit
MOQ :
500M
Description

High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm

Cr20Ni80 is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.

Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.

NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.

Product size:

Flat strip thickness0.03—5mm,flat strip width0.2—500mm.

High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm

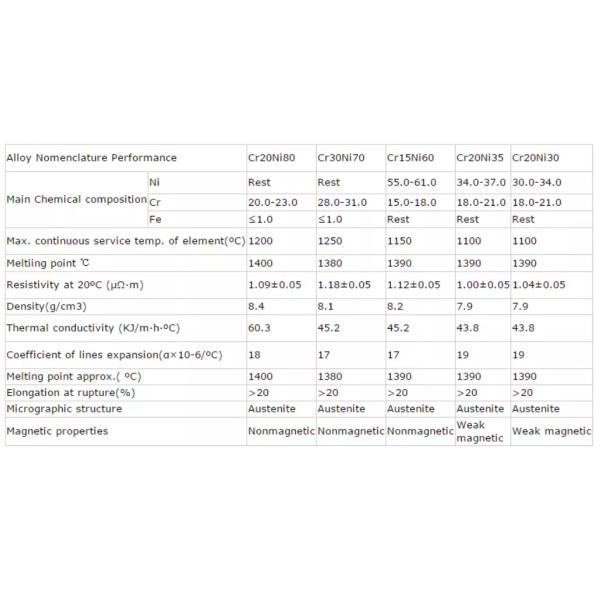

Ni80Cr20

Chemical Content, %

C P S Mn Si Cr Ni Al Fe Other
Max
0.08 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

Mechanical Properties

Max Continuous Service:

Resisivity( 20℃)/Ω·m:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1200℃

1.09 +/-0.05 (Dia: <0.5mm)

1.13+/-0.05 (Dia: 0.50-3.00 mm)

1.14+/-0.05 (Dia: >3.0mm)

8.4 g/cm3

60.3 KJ/m·h·℃

18.0 α×10-6/℃

1400 ℃

Min 20%

Austenite

nonmagnetic

800 Degrees Fiberglass Insulated Nichrome Resistance Wire

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.

  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate

Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled

Nichrome products sizes are:

Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm

NiCr 80:20 – Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.

NiCr 70:30 – Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.

NiCr 60:15 – Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.

NiCr 40:20 – Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.

NiCr 30:20/ NiCr 20:25 – Industrial furnaces (upto 1050°C), heating elements of cooking equipment.

Application:

1. Dynamic Braking Starting Resistor
2. Neutral Grounding Resistor
3. Resistor Box
4. Hot Cutting Wire
5. Industrial Furnace Ovens
6. Industry Heater
High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm
Application picture:
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
Product :

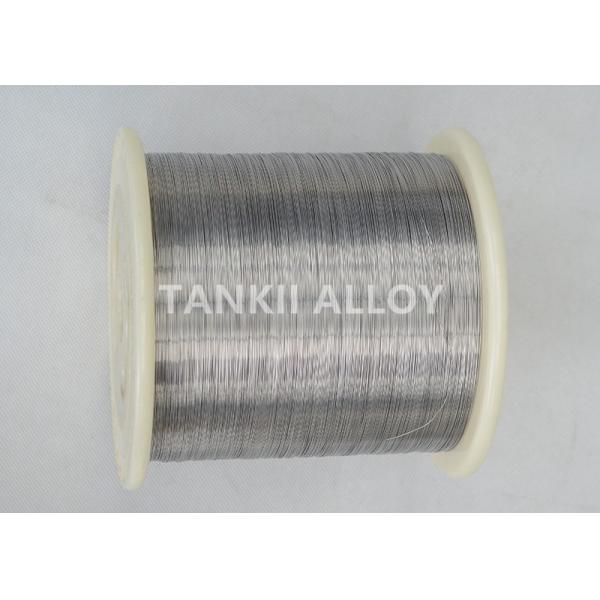

Bare wire
800 Degrees Fiberglass Insulated Nichrome Resistance Wire

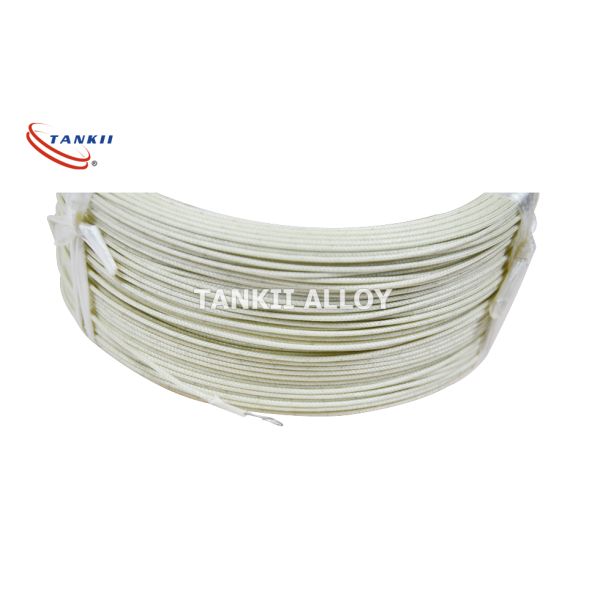

With fiberglass insulation
800 Degrees Fiberglass Insulated Nichrome Resistance Wire
High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm
Welcome to call me at +86-18017475212 or email to me for more details on insulated nichrome wire.
