Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
Specifications
Brand Name :
TANKII
Model Number :
NiCr70/30
Certification :
ISO9001: 2008
Place of Origin :
Shanghai, China
MOQ :
10kg
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200+ton+month
Delivery Time :
7-15 days
Packaging Details :
Spool, Coil, Carton, Pallet, Wooden case with plastic film as client's demands
Composition :
Nickel Chromium
shape :
flat
Condition :
Soft Annealed
Type :
Nickel Based Alloy
Density :
8.1
Resisivity :
1.18
Description

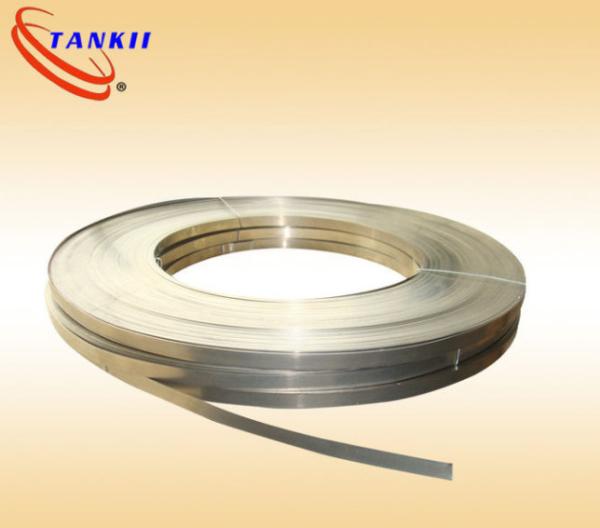

Ni70cr30 NiCr7030 High Electrical Resistance Melting Point Nichrome Soft Annealed flat Wire for Slide Rhostat

Heating nickel chrome alloy /electric heating element resistance alloy/nichrome alloy wire/ni cr alloy/ ni-cr alloy/nickel chrome alloy/electrothermal alloy/electric heating alloy/Electric resistance alloy

Standard:GB/T1234-9

Product forms: wire,bar,strip,forging,sheet/plate,etc.

Advantages: deformation ability, thermal stability,mechanical character, shockproof ability in thermal state and anti-oxidization.

Nickel Chrome Alloy are widely used in electric furnace heating or heat-treating processes in the chemical, mechanical, metallurgical and defense industries.

Ni70Cr30

Chemical Content, %

C P S Mn Si Cr Ni Al Fe Other
Max
0.08 0.02 0.015 0.60 0.75~1.60 28.0~31.0 Bal. Max 0.50 Max 1.0 -

Mechanical Properties

Max Continuous Service Temperature:

Resisivity ( 20℃)/Ω·m::

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1250℃

1.18 +/-0.05 (Dia: <0.5mm)

1.20+/-0.05 (Dia: ≥0.50 mm)

8.1 g/cm3

45.2 KJ/m·h·℃

17×10-6/℃ (20℃~1000℃)

1380℃

Min 20%

Austenite

nonmagnetic

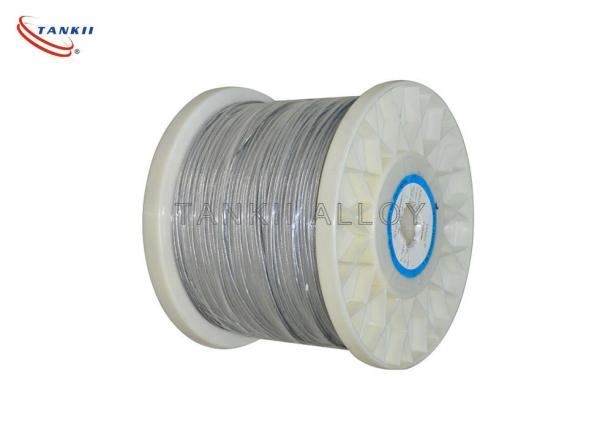

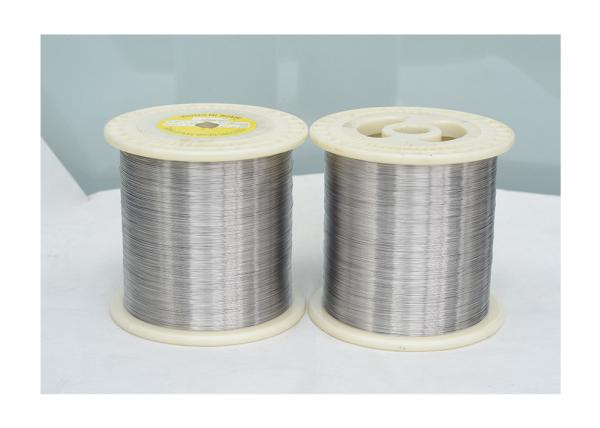

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.

  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate

Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled

1.Name: nickel chrome heating alloy flat wire Ni70Cr30

2.FeCrAl wire strip includes:

OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.

3.Nickel chrome wire Strip Bar includes: Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80.
4.Copper Nickel wire Strip includes:

CuNi1,CuNi2,CuNi5,CuNi8,CuNi10,CuNi14,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.
5.Constantan wire includes: 6J40,4J42,4J32.
6.Manganin wire:6J8,6J12,6J13.

Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat WireSlide Rheostat Ni70cr30 Soft Annealed Nichrome Flat WireSlide Rheostat Ni70cr30 Soft Annealed Nichrome Flat WireSlide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire

Slide Rheostat Ni70cr30 Soft Annealed Nichrome Flat Wire
