Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
Specifications
Brand Name :
Tankii
Model Number :
Thermocouple cable
Certification :
ISO 9001
Place of Origin :
China
MOQ :
500 m
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000m/month
Delivery Time :
5-30days
Packaging Details :
5000m/spool,2000m/spool
Name :
Type K/T extension cable
Shape :
solid
Color :
red
Type :
K,J,E,T
Package :
coil
Temperature :
200°C 400°C 800°C 1000°C
Insulation :
PTFE,GLASSFIBER
Description

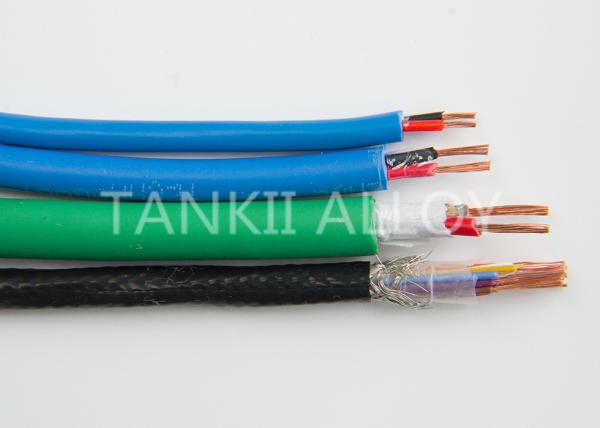

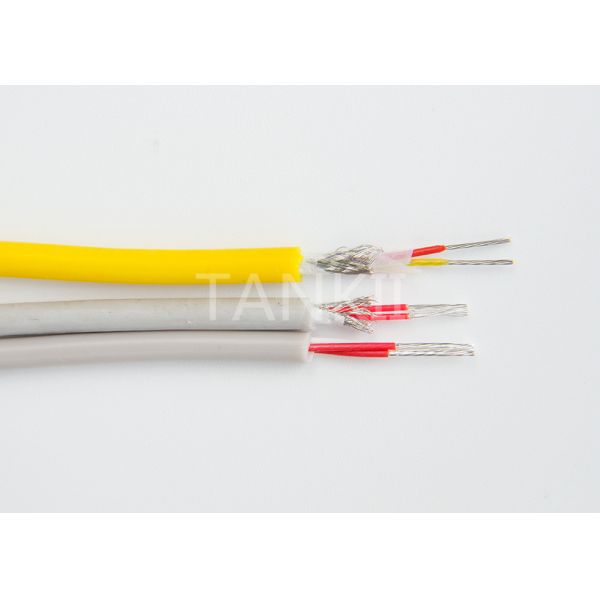

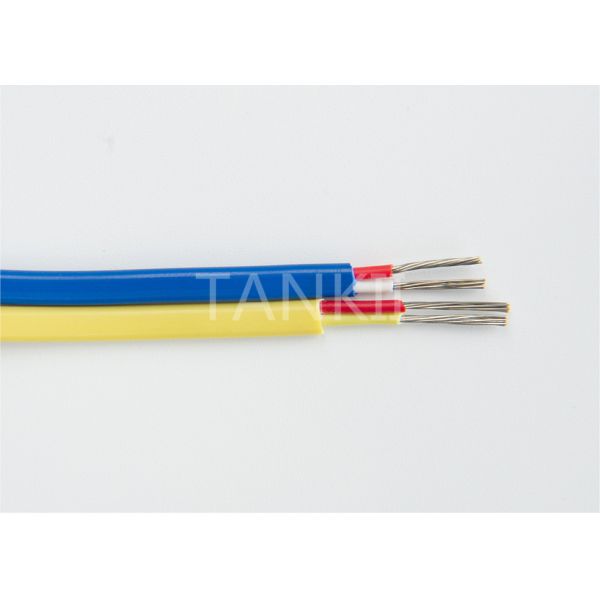

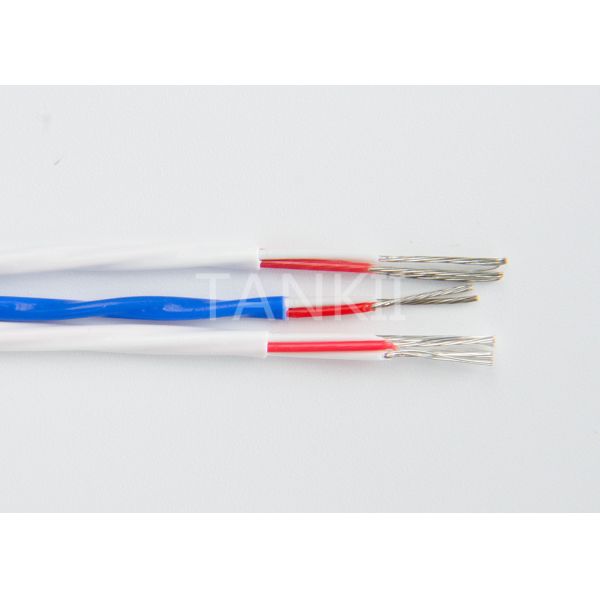

Type K J T thermocouple extension cable Insulated PTFE / Fiber Glass / PVC / PFA Cable 24 Awg 26AWG

NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Grade: Extension Grade or Thermocuple Grade
temperature range, deg. c -50... +400
type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors: 1,2,3,4,6
Conductor type Strand or Solid
section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color: ANSI, IEC, etc
quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,

Type K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High AccuracyType K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High AccuracyType K J T Thermocouple Extension Cable Insulated PTFE / Fiberglass High Accuracy
