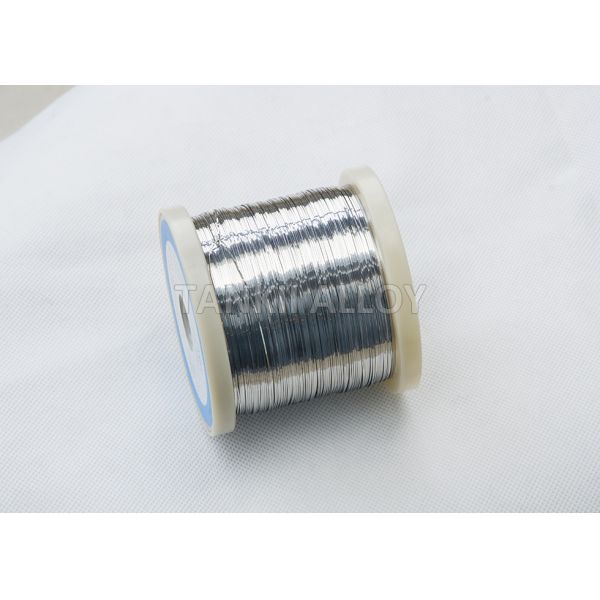

Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
Specifications
Brand Name :
Tankii
Model Number :
Alloy 42
Certification :
ISO9001:2015
Place of Origin :
Shanghai, China
MOQ :
20kg
Price :
Negotiated price
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
200+TON+MONTH
Delivery Time :
7-12 DAYS
Packaging Details :
Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
Other Material :
Nickel Alloy, copper alloy...
Other Shape :
Round Wire, Ribbon, Strip, Sheet, etc...
Feature :
constant coefficient of thermal expansion
Melting Point :
1435
Inflection Point :
370
Commercial Name :
Invar 42, Pernifer 40, Dilaton 42, and Glass Sealing 42
Description

Good Quality Alloy 42 Expansion Alloy Flat Wire for Glass-Metal Sealing

1.Description:

Grade and chemical composition
Grade Mass fraction (%)
C P S Mn Si B Al C0 Ni Cr Fe
≤
4J42 0.05 0.020 0.020 0.80 0.30 0.10 1.0 41.5~42.5 balance

heat treating regime and coefficient of linear expansion
Grade Heat treatment on samples a/(10-6/K)
20-300°C 20~400% 20-450°C
4J42 Heat the sample to (900±20)°C in hydrogen atmosphere, keep the temperature for one hour, cool to below 200°C at the speed ≤5°C/min then discharge 4.0~5.0 6.5~7.5
6.5~7.2 6.5~7.2
9.2~10.0 9.2~9.9

coefficient of expansion
Grade Average coefficient of expansion a/(10-6/K)
20~100°C 20~200°C 20~300°C 20~400°C 20~450°C 20~500°C 20~600°C
4J42 5.6 4.9 4.8 5.9 6.9 7.8 9.2

2.Size

Sheet---Thickness 0.1mm~40.0mm, width:≤300mm,Condition: cold rolled(hot), bright, bright annealed

3.Usage

It is applied to soft glass-to-metal and ceramic-to-metal seals in electronic component.

4.MOQ

50-100 kgs per each size; If we have in stock, 1kgs is available for us.

5. Payment

T/T, 30% deposit and the balance paid against the B/L copy.

100% L/C at sight;

Wesetern Union;

Paypal;

6.Shippment
By Sea;

By Air (DHL,TNT,UPS,FEDEX etc)

7.Application

Petrochemical Industry; Pulp and paper Industry; Aerospace Industry;

Industrial Furnace; Special Welding; Heating Treatment Industry;

Nuclear Power Industry; Marine Industry; Shipbuilding Industry;

8.Packing

Standard export packing, carton with plywood case for safety

Sheet: Packed in Nylon Polybag first

The goods can be packed as the clients demand.

9.Delivery time

We can do the order 45-50days upon receive the 30% deposit or L/C document.

10.Advantages

1.Pass:ISO9001 certification
2.fine after-sale services
3.small order accepted

11.Delivery conditions and finishes

Sheet: hot-rolling, polishing, picking, bright etc
