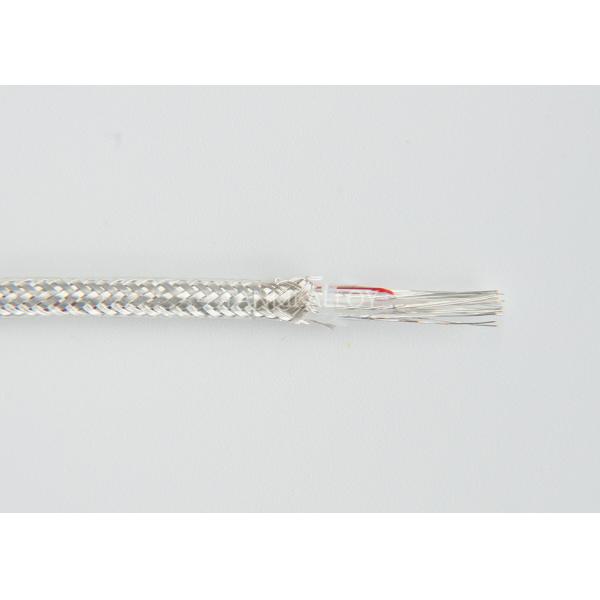

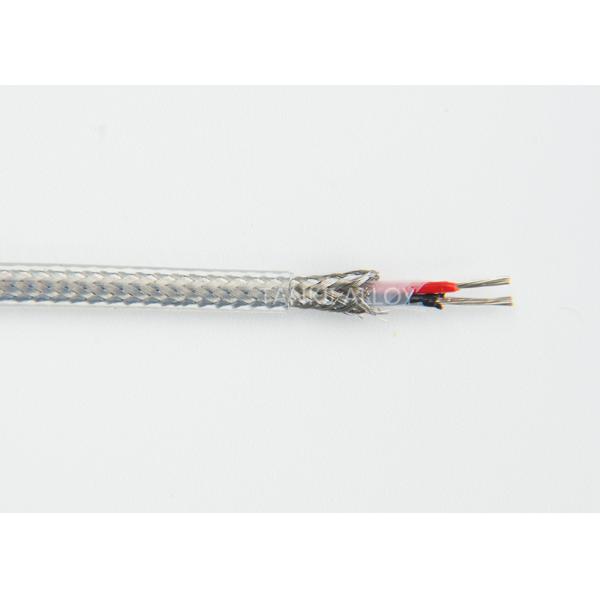

20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
Specifications
Brand Name :
Tankii
Model Number :
Thermocouple cable
Certification :
ISO 9001
Place of Origin :
China
MOQ :
200 m
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000m/month
Delivery Time :
5-30days
Packaging Details :
5000m/spool,2000m/spool ，customzied
Color :
customzied
Package :
coil
Temperature :
Customzied
Standard :
ANSI
Type :
K
Insulation :
PTFE/PVC/FIBERGLASS
Description

20 AWG 24 AWG thermocouple extension wire type KX with PTFE insulation


Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Grade: Extension Grade or Thermocuple Grade
temperature range, deg. c -50... +400
type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors: 1,2,3,4,6
Conductor type Strand or Solid
section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color: ANSI, IEC, etc
quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,

20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
