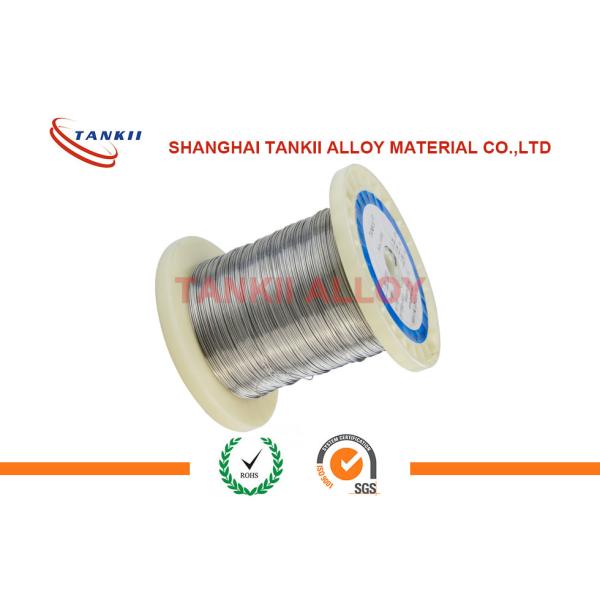

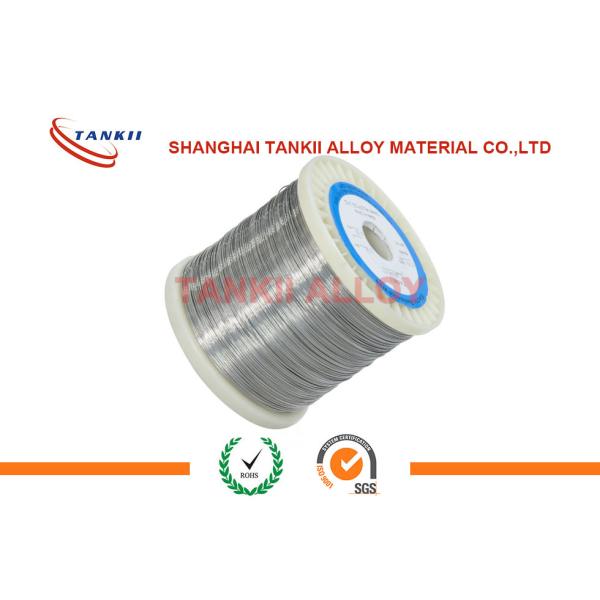

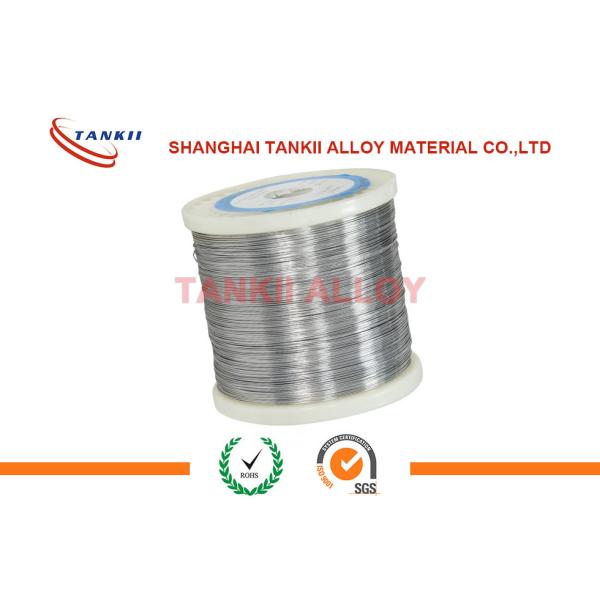

0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
Specifications
Brand Name :
Tankii
Model Number :
0Cr26Al5
Certification :
ISO 9001
Place of Origin :
China
MOQ :
20kg
Price :
5 usd / kg
Payment Terms :
T/T, Western Union
Supply Ability :
20000kg/month
Delivery Time :
5-30 days
Packaging Details :
coil or spool
Certificate :
ISO 9001
Shape :
Wire
Delivery :
depends on the quantity
Condition :
Soft
Application :
Resistance wire
Material :
Iron Chrome Aluminum
Description

0Cr25AL5 FeCrAl Resistance Heating Wire Iron Chrome Aluminum Alloy JIS C2520 Fchw

FeCrAl wire strip includes: OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.

Nickel chrome wire Strip Bar includes: Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80.

Copper Nickel wire Strip includes:

CuNi1,CuNi2,CuNi5,CuNi8,CuNi10,CuNi14,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.

Constantan wire includes: 6J40,4J42,4J32.

Manganin wire:6J8,6J12,6J13.

Product Description

Model Number:Resistance heating 0Cr25AL5 wire
Application:Home appliances,industrial furnaces,making electric heating element
Shape:Wire,strip,ribbon etc
Material:Iron-Chromium-Aluminium Alloy
Chemical Composition:Ferro Chrome Aluminium
Ferro Chrome Aluminium:Resistance heating 0Cr25AL5 wire
Standard:AISI,ASTM,DIN,GB etc
Standard:GB/ASTM/AISI/ASME/JIS/DIN etc
Type:Wire /strip /ribbon etc
Certificate:ISO 9001&ROHS&TUV
Conductor Material:Ferro Chrome Aluminium alloy
Surface:Bright and smooth
Surface Treatment:Polished and oxidation
Property:Resistance heating 0Cr25AL5 wire
Feature:Good form stability

Main grades and properties



Grades
Properties
1Cr13Al4
0Cr25Al5
0Cr21Al6
0Cr23Al5
0Cr21Al4
0Cr21Al6Nb
0Cr27Al7Mo2

Chemical composition %
Cr
12.0-15.0
23.0-26.0
19.0-22.0
22.5-24.5
18.0-21.0
21.0-23.0
26.5-27.8

Al
4.0-6.0
4.5-6.5
5.0-7.0
4.2-5.0
3.0-4.2
5.0-7.0
6.0-7.0

Fe
Balance
Balance
Balance
Balance
Balance
Balance
Balance

Other
Nb 0.5
Mo1.8-2.2

Highest service temperature °C
950
1250
1250
1250
1100
1350
1400

ResistivityμΩ.M,20°C
1.25
1.42
1.42
1.35
1.23
1.45
1.53

Density (g/cm3 )
7.4
7.10
7.16
7.25
7.35
7.10
7.10

Thermal conductivity KJ/m.H.°C
52.7
46.1
63.2
60.2
46.9
46.1
45.2

Coefficient of linear extensibility
Α×10-6/°C
15.4
16.0
14.7
15.0
13.5
16.0
16.0

Melting point °C
1450
1500
1500
1500
1500
1510
1520

Tensile Mpa
580-680
630-780
630-780
630-780
600-700
650-800
680-830

Elongation %
>16
>12
>12
>12
>12
>12
>10

Reduction %
65-75
60-75
65-75
65-75
65-75
65-75
65-75

Hardness H.B.
200-260
200-260
200-260
200-260
200-260
200-260
200-260

Microstructure
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite

0Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C25200Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C25200Cr25AL5 FeCrAl Resistance Heating Wire / Iron Chrome Aluminum Wire JIS C2520
