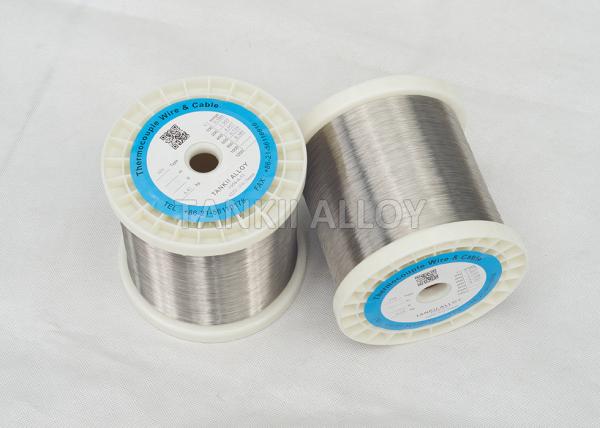

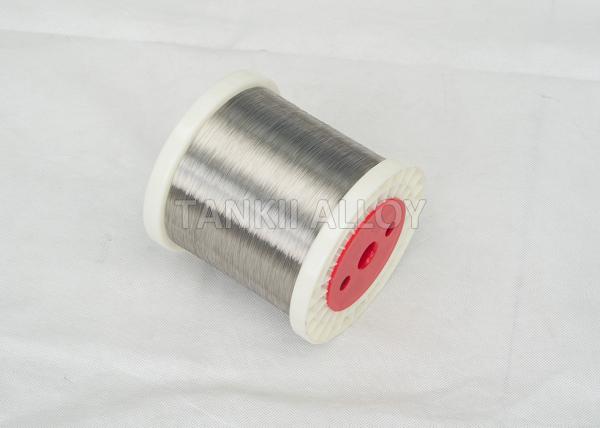

Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Specifications
Brand Name :
Tankii
Model Number :
NICrSi- NiSiMg
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
10kg per leg
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
1000Ton per year
Delivery Time :
5-7 days after getting the payment
Packaging Details :
Standard exoprt package in carton box or wooden box
Material :
NICrSi- NiSiMg
Surface :
Bright
Diameter :
>0.1mm
Wire Type :
Single wire
Insulation :
Customized
Wire class :
IEC class I , II
Leading time :
5~10 days after getting the payment
Description


ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

Thermocouples can be used to measure temperature in many different applications from food preparation to smelting through to heavy chemical and power generation plants. The sensing probe can take a number of forms from bare wires to fully metal sheathed versions which can be inserted into the medium to be measured. The thermocouple effect can even be harnessed to create a low power generator by connecting multiple junctions in series in a heated environment. The individual thermocouple types have particular characteristics which make them suitable for different applications with varying temperature ranges and accuracies available. The increasing importance of lowering emissions in cars and industry is driving greater accuracy and longevity demands in automotive and process industries. Type N thermocouples in particular can be used to provide reliable temperature readings over a wide temperature range to ensure efficiencies are maximised and noxious gases minimised.

NiCrSi thermocouple wire type N
The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon.The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.


ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.

Thermocouple strips, thermocouple connectors are available.
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring
Available Thermocouple Types and Temperature Range

Thermocouple type and index

Measurement Range

℃

Type

Index


PtRh30-PtRh6

B600~1700


PtRh13-Pt

R0~1600


PtRh10-Pt

S0~1600


NiCr-NiSi

K-200~1300


NiCr-CuNi (constantan)

E-200~900


Fe-CuNi (constantan)

J-40~750


Cu-CuNi (constantan)

T-200~350


NiCrSi-NiSi

N-200~1300

The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range
℃

Allowable Tolerance /℃
Type BⅡ600~1700±0.25% t
Ⅲ600~800±4
800~1700±0.5%t
Type R(S)Ⅰ0~1100±1
1100~1600±[1+(t－1100) ×0.3％]
Ⅱ0~600±1.5
600~1600±0.25% t
Type K and Type NⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
Type EⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
Type JⅠ-40~750±1.5℃ or ±0.4%t
Ⅱ-40~750±2.5℃ or ±0.75%t
Type TⅠ-40~350±0.5℃ or ±0.4%t
Ⅱ-40~350±1.0℃ or ±0.75%t
Ⅲ-200~40±1.0℃ or ±1.5%t



Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry

Delivery and Packing of thermocouple wire:
1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring
Welcome to call us or email to us for more information on N type thermocouple wire, stranded wire , flat wire, strip.
