1.4867 Electric Resistance Wire Nicr6015 For Sheathed Tubular Elements
1.4867 Electric Resistance Wire Nicr6015 For Sheathed Tubular Elements
1.4867 Electric Resistance Wire Nicr6015 For Sheathed Tubular Elements
1.4867 Electric Resistance Wire Nicr6015 For Sheathed Tubular Elements
Specifications
Brand Name :
TANKII
Model Number :
Ni60Cr15
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
25 kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 ton/30days
Packaging Details :

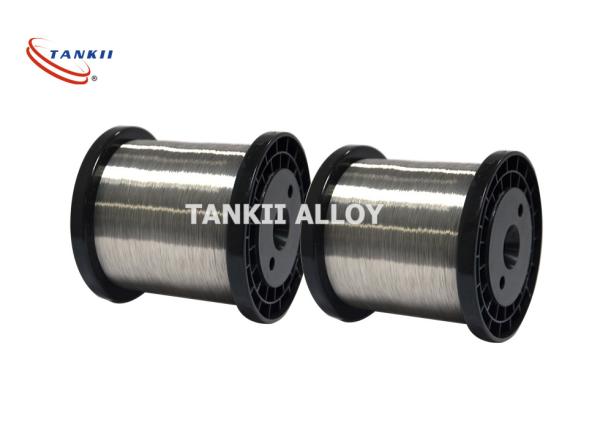

on spool
state :
bright and annealed soft
shape :
round wire
Grade :
NiCr Alloy
Application :
Industry
Condition :
Soft Annealed
Feature :
High Resistance
Description

Sheathed Tubular Elements 1.4867 Resistance Wire Nicr6015 for Electric Heating Elements

Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body well. At high
temperature and high intensity, and a good performance and processing may welding nature widely used
metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat
resistance material.

Typical applications include metal-sheathed tubular elements used in hot plates, grills, toaster ovens, storage heaters, etc

NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.

3.Product size:
Round wire dia.0.02-12mm;
flat strip thickness 0.03-5mm,flat strip width0.2-500mm.

1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements


Ni60Cr15
Chemical Content, %

C P S Mn Si Cr Ni Al Fe Other
Max
0.08 0.02 0.015 0.60 0.75~1.60 15.0~18.0 55~61 max 0.5 Bal -



Mechanical Properties

Max Continuous Service:
Resisivity( 20ºC)/Ω·m:



Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property		 1150ºC
1.11 +/-0.05

8.2 g/cm3
45.2 KJ/m·h·ºC
17.0 α×10-6/ºC
1390 ºC
Min 20%
Austenite
Slightly


1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.

  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate

Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled

Nichrome products sizes are:
Wire: 0.025mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm

Rohs Certified 1.4867 NiCr6015/NC6015 Resistance Wire 0.3mm Used Electronic Instruments

NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.

NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.

NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.

NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.

NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.

Application:

1. Dynamic Braking Starting Resistor
2. Neutral Grounding Resistor
3. Resistor Box
4. Hot Cutting Wire
5. Industrial Furnace Ovens
6. Industry Heater

Description
Alloy Standard Strand Construction, mm Resistance,Ω/m Strand Diameter Nominal, mm Meter per Kilo
NiCr 80/20 19×0.544 0.233-0.269 26
NiCr 80/20 19×0.61 0.205-0.250
NiCr 80/20 19×0.523 0.276-0.306 2.67 30
NiCr 80/20 19×0.574 2.87 25
NiCr 80/20 37×0.385 0.248-0.302 2.76 26
NiCr 60/15 19×0.508 0.286-0.318
NiCr 60/15 19×0.523 0.276-0.304 30
Ni 19×0.574 0.020-0.027 2.87 21
Details
Propertes/Grade Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤ 1.0 ≤ 1.0 Rest Rest Rest
Max. continuous service temp. of element 1200 1250 1150 1100 1100
Resistivity at 20oC (μ Ω · m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal conductivity(KJ/m· h· oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α × 10-6/oC) 18 17 17 19 19
Melting point (approx. )( oC) 1400 1380 1390 1390 1390
Elongation at rupture (%) > 20 > 20 > 20 > 20 > 20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagnetic
Chemical Composition Nickel , Chrome
Condition Bright/Acid white/Oxidied Color
Grade Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage Nichrome's metallurgical structure confers them a very good plasticity when cold.
Characteristics Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
