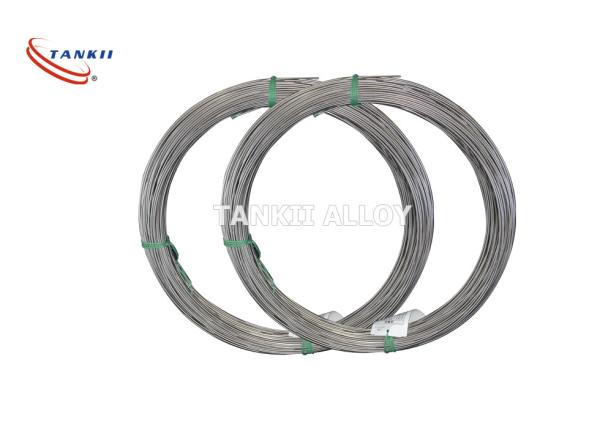

Sparking Plug Electrode Bright Nicr Alloy Polished Soft Annealed
Sparking Plug Electrode Bright Nicr Alloy Polished Soft Annealed
Specifications
Brand Name :
tankii
Model Number :
NCr3-5-1.5
Certification :
DIN, ASTM, JIS
Place of Origin :
Shanghai
MOQ :
20kg
Price :
15-30$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000T/month
Delivery Time :
25days
Packaging Details :
spool ,coil, or as clients' requirement
Port :
Shanghai
Grade :
NiCrAlloy
Application :
spar plug
Elongation :
20%
Powder or not :
not powder
Surface :
Polished
Shape :
round wire
Material :
nickel chrome
Condition :
soft annealed
MOQ :
20KG
Description

Sparking plug electrode nickel alloy
Nickel alloy: NMn2-1.8-1.8, NMn4-1, NCi-5-3-1.8, NCr2-1-0.5, NCr1.5-1.5-0.5
NiMnSiCr alloy wire-(NMn2-1.8-1.8), has good refractory, oxidation resistance, physical and mechanical properties and process ability. It is used as the spark plug central electrode, which can perform both good electrical conductivity and heat conductivity.
NiMnSi alloy wire (NMn4-1), has corrosion resistance of high temperature gas, anti-ablation, good heat conductivity, with appropriate strength and hardness, it can be processed into flat wire in different sizes, used as the side electrode of the spark plug.
NiCrMnSi alloy (NCr5-3-1.8), has good refractory, oxidation resistance, physical and mechanical properties and process ability. It is used as the spark plug central electrode.

Nickel Alloy Wires NCr3-5-1.5 For Sparking Plug Electrode

Application:
As the central electrode and side electrode of Automobile & motorcycle spark plug.

Nickel alloy Grade for spark plug electrode

Product Name Grade Diameter range, mm
NiCrMnSi alloy wire NCr5-3-1.8 1.0~6.0
NiCrFe alloy wire NCr-15-8 1.0~6.0
NiMnSiCr alloy wire NCr1.5-1.5-0.5 1.0~6.0
NiCrMnSi alloy wire NCr2-1-0.5 1.0~6.0
NiCrMnSi alloy wire NMn2-1.8-1.8 1.0~6.0


Nominal Chemical Composition:

Grade Main chemical composition, % Impurity ≤ %
Ni+Co
≥		 Cr Mn Si Fe Cu S C Fe
NCr5-3-1.8 88.0 4.5~5.5 2.5~3.5 1.5~2.0 -- 0.2 0.1 0.1 0.5
NCr-15-8 72.0 14.0~17.0 0.2~1.0 0.1~0.5 6.0~10.0 0.5 0.015 0.15 --
NCr1.5-1.5-0.5 95.0 1.40~1.80 1.3~1.8 0.4~0.65 -- 0.15 0.005 0.05 0.3
NCr2-1-0.5 94.0 1.50~2.00 1.5~2.0 0.5~1.0 -- 0.15 0.05 0.1 0.4
NMn2-1.8-1.8 92.0 1.50~2.00 1.5~2.5 1.5~2.0 -- 0.15 0.07 0.07 0.4
