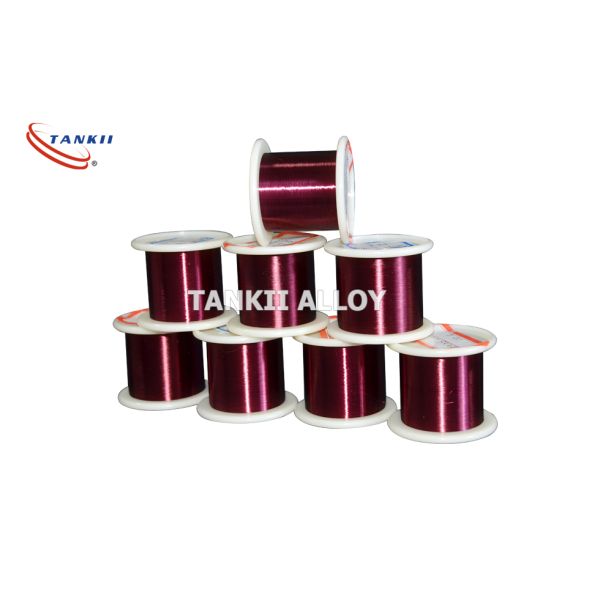

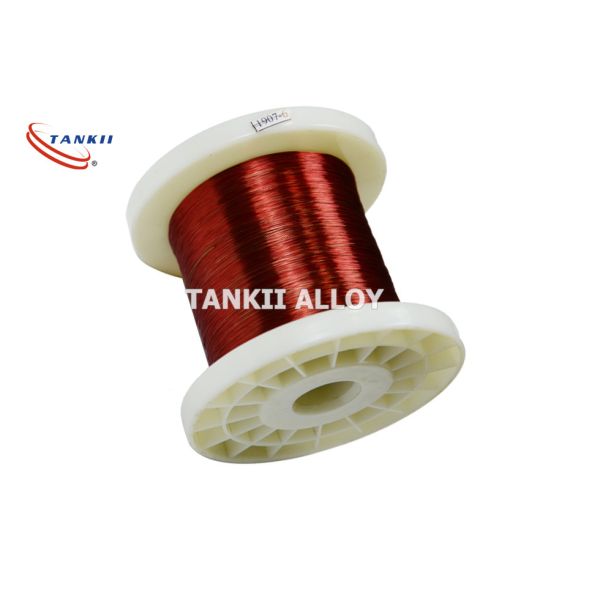

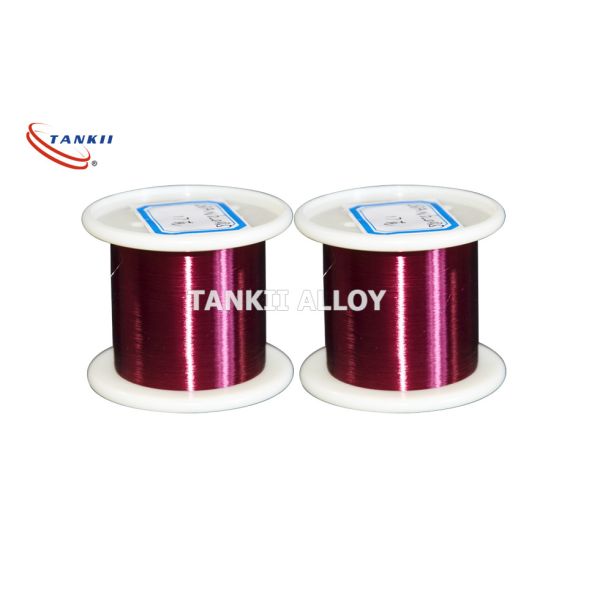

0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
Specifications
Brand Name :
Tankii
Model Number :
N6 pure nickel wire
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 kg
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
1000Ton per year
Delivery Time :
10-15 days after getting the payment
Packaging Details :
500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Material :
99.6% Nickel wire
Surface :
Red color
Diameter :
Customized
MOQ :
5kg per size
Leading time :
35 days
Payment :
50% deposit in advance, the balance paid against Ci
Description

Product Description:

Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color

According to the purpose of enamelled wire,there are three kinds of enameled wire :

1. General purpose enamelled wire (ordinary wire): it is mainly used for winding wires in general motors, electrical appliances, instruments, transformers and other working places, such as polyester enamelled wire and modified polyester enamelled wire.

2.Heat resistant enamelled wire: it is mainly used for winding wires of motors, electrical appliances, instruments, transformers and other working places working at 180 ℃ and above, such as polyester imide enamelled wire, polyimide enamelled wire, polyester enamelled wire and polyester imide / polyamide imide composite enamelled wire.

3. Special purpose enamelled wire: refers to the winding wire with certain quality characteristic requirements and used in specific occasions, such as polyurethane enamelled wire (direct weldability) and self-adhesive enamelled wire.

Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color


Type of bare conductor wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire


Round wire:0.025mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Moq:5kg each size

Enameled wire conductors:

Copper-nickel alloy wire, Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin
Stainless steel Wire
Silver Purity 9.99%
golden Wire
Any copper alloy and nickel alloy is available

Type of insulation

Insulation-enamelled Name Thermal LevelºC
(working time 2000h)		 Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)		 QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C

Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color

0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
Application: Motor winding assembly
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
Application:
Applicable to radio, electric light source, mechanical manufacturing, chemical industry, pure nickel wire is an important structural material in vacuum electronic devices, can also be used as a guide wire lead in the bulb.

Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color

About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of nickel alloy wire, copper alloy wire , resistance wire, thermocouple wire etc.
Welcome to call me or email to me for more information on enamelled wire.
