Specifications
Brand Name :
TANKII
Model Number :
Cr25Al5
Certification :
ISO9001
Place of Origin :
China
MOQ :
20kg
Price :
2.0~8.5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 tons/year
Delivery Time :
5~25 days after getting the payment
Packaging Details :
On Spool, In Coil
Product :
Cr22Al5.75 Cr25Al5 , Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces
Resistivity range :
1.25 to 1.48 for different material
Density range :
7.1~7.4 g/cm3
Wire size range :
0.05-8mm
Rod dia :
10~20mm
Origin :
Jinagsu, China
Packing :
Seaworthy wooden pallet/ box
Delivery time :
about 10 days
Description

1400C Heating Wire Cr22Al5.75 Cr25Al5 , Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

Description

Tankii Ferro-chrome-aluminum resistance wire, also known as ferrochrome alumina wire or simply Fecral wire, is a type of resistance wire made from an alloy of iron, chromium, and aluminum.

Chemical Composition: The main elements are iron (Fe), chromium (Cr), and aluminum (Al). Different grades of the wire have different proportions of these elements. For example, common grades include 0Cr13Al4, 0Cr19Al2, 0Cr15Al5, 0Cr20Al5, 0Cr25Al5, 0Cr21Al6Nb, and 0Cr27Al7Mo2

Alloy shapes: There are different forms of ferro-chrome-aluminum alloys, such as circular wires and flat wires, which are designed to meet various application requirements.

We also produce the equivalent material for below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
Kanthal A1, Kanthal, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF Kanthal AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, Kanthal APM
Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812

Properties

High Resistivity: It has a relatively high resistivity, which means it can effectively convert electrical energy into heat when current passes through it. This property makes it suitable for use as a heating element.



Chemical Details of our Fe-Cr-Al alloy materials:

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Grade
 1Cr13Al4
 0Cr25Al5
 0Cr21Al6
 0Cr23Al5
 0Cr21Al4
 0Cr21Al6Nb
 0Cr27Al7Mo2
Main Chemical Composition
(%)
 Cr
 12.0-15.0
 23.0-26.0
 19.0-22.0
 22.5-24.5
 18.0-21.0
 21.0-23.0
 26.5-27.8
Al
 4.0-6.0
 4.5-6.5
 5.0-7.0
 4.2-5.0
 3.0-4.2
 5.0-7.0
 6.0-7.0
Re
 opportune
 opportune
 opportune
 opportune
 opportune
 opportune
 opportune
Fe
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.






Nb0.5
 Mo1.8-2.2
Max Continuous Service Temperature(oC)
 950
 1250
 1250
 1250
 1100
 1350
 1400
Resistivity 20 ℃ (Ωmm2/m)
 1.25
±0.08
 1.42
±0.06
 1.42
±0.07
 1.35
±0.07
 1.23
±0.07
 1.45
±0.07
 1.53
±0.07
Density(g/cm3)
 7.4
 7.1
 7.16
 7.25
 7.35
 7.1
 7.1
Thermal Conductivity
 52.7
 46.1
 63.2
 60.2
 46.9
 46.1
 45.2
(KJ/m@h@oC)
Coefficient of Thermal Expansion(α×10-6/oC)
 15.4
 16
 14.7
 15
 13.5
 16
 16
Approximate Melting Point( oC)
 1450
 1500
 1500
 1500
 1500
 1510
 1520
Tensile Strength(N/mm2)
 580-680
 630-780
 630-780
 630-780
 600-700
 650-800
 680-830
Elongation(%)
 >16
 >12
 >12
 >12
 >12
 >12
 >10
Section Variation
 65-75
 60-75
 65-75
 65-75
 65-75
 65-75
 65-75
Shrink Rate (%)
Repeatedly Bend Frequency(F/R)
 >5
 >5
 >5
 >5
 >5
 >5
 >5
Hardness (H.B.)
 200-260
 200-260
 200-260
 200-260
 200-260
 200-260
 200-260
Continuous Service Time
 no
 ≥80/1300
 ≥80/1300
 ≥80/1300
 ≥80/1250
 ≥50/1350
 ≥50/1350
Micrographic Structure
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
Magnetic Property
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic


1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

4. About us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

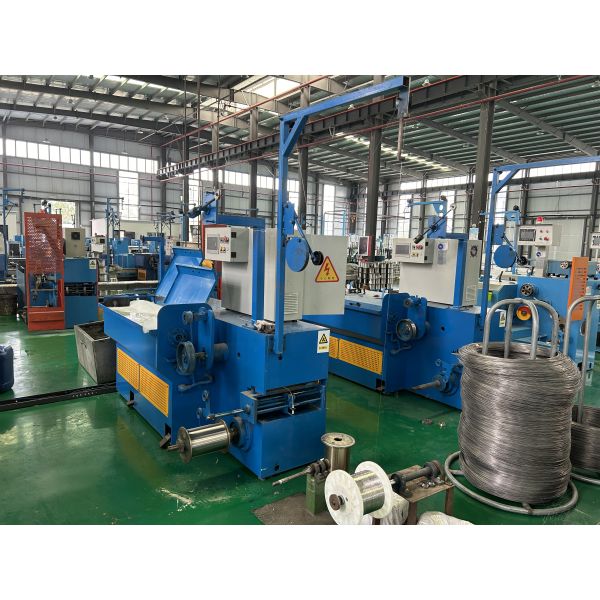

Tankii: A glance at the interior of the factory

1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

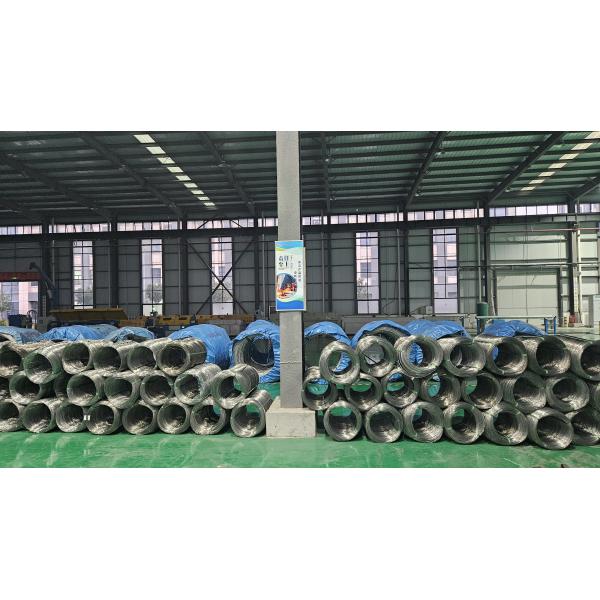

Adequate inventory:

1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

Local Delivery for local customers:

1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces

Our Factory Exterior:
1400C Heating Wire Cr22Al5.75 Cr25Al5 Cr22Al4.5 Cr20Al4.5 1.4mm 1.6mm 2.0mm 5.5mm Used For Industrial Furnaces


Welcome to our factory and discuss more on the order!
