Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Specifications
Brand Name :
TANKII
Model Number :
TK1
Certification :
ISO9001
Place of Origin :
China
MOQ :
20kg
Price :
2.0~8.5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 tons/year
Delivery Time :
5~25 days after getting the payment
Packaging Details :
On Spool, In Coil
Item :
Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Available Shape :
Round wire, flat ribbon, Strip, or thick plate
Advantage :
Higher resistivity and heating efficiency
Working temperature :
1400C
Main chemical :
Cr: 22.5 Al-5.5 and Fe for bal.
Surface type :
Acid white/oxidized
Mininum order qty :
20kg or less as per size
Dia range :
0.05mm and above
Application :
Heating,Industry,furnace heating wire,electric resistance for furnace heating element,heater
Description

Higher Resistivity And Heating Efficiency Heating/Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens

Fecral resistance wire has a wide range of common applications, including the following:

Industrial Furnaces:

  • Single Crystal Furnaces: Used to provide the high temperatures required for growing single crystals, such as silicon single crystals used in the semiconductor industry. The precise temperature control and high heat output of Fecral wire help ensure the quality and uniformity of the single crystals grown.
  • Sintering Furnaces: In powder metallurgy and ceramic manufacturing, sintering is a crucial process. Fecral resistance wire can heat the furnace to the necessary high temperatures (up to 1400°C) to enable the consolidation and densification of powdered materials, resulting in strong and durable sintered products.
  • Diffusion Furnaces: These furnaces are used in semiconductor device fabrication and other materials processing to achieve controlled diffusion of dopants or other substances. Fecral wire's ability to maintain stable high temperatures and its resistance to oxidation make it suitable for creating the required thermal environment for precise diffusion processes.
  • Heat Treatment Furnaces: For heat-treating metals and alloys to improve their mechanical properties, Fecral resistance wire is employed to generate the elevated temperatures needed for processes like annealing, quenching, and tempering. The wire's high-temperature performance and long service life contribute to the reliability and efficiency of heat treatment operations.

There are several reasons to choose Fecral resistance wire:
1. High Operating Temperature

2. Excellent Oxidation Resistance

3. High Resistivity and Heating Efficiency

4. Long Service Life


Chemical Details of our Fe-Cr-Al alloy materials:

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Grade
 1Cr13Al4
 0Cr25Al5
 0Cr21Al6
 0Cr23Al5
 0Cr21Al4
 0Cr21Al6Nb
 0Cr27Al7Mo2
Main Chemical Composition
(%)
 Cr
 12.0-15.0
 23.0-26.0
 19.0-22.0
 22.5-24.5
 18.0-21.0
 21.0-23.0
 26.5-27.8
Al
 4.0-6.0
 4.5-6.5
 5.0-7.0
 4.2-5.0
 3.0-4.2
 5.0-7.0
 6.0-7.0
Re
 opportune
 opportune
 opportune
 opportune
 opportune
 opportune
 opportune
Fe
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.
 Bal.






Nb0.5
 Mo1.8-2.2
Max Continuous Service Temperature(oC)
 950
 1250
 1250
 1250
 1100
 1350
 1400
Resistivity 20 ℃ (Ωmm2/m)
 1.25
±0.08
 1.42
±0.06
 1.42
±0.07
 1.35
±0.07
 1.23
±0.07
 1.45
±0.07
 1.53
±0.07
Density(g/cm3)
 7.4
 7.1
 7.16
 7.25
 7.35
 7.1
 7.1
Thermal Conductivity
 52.7
 46.1
 63.2
 60.2
 46.9
 46.1
 45.2
(KJ/m@h@oC)
Coefficient of Thermal Expansion(α×10-6/oC)
 15.4
 16
 14.7
 15
 13.5
 16
 16
Approximate Melting Point( oC)
 1450
 1500
 1500
 1500
 1500
 1510
 1520
Tensile Strength(N/mm2)
 580-680
 630-780
 630-780
 630-780
 600-700
 650-800
 680-830
Elongation(%)
 >16
 >12
 >12
 >12
 >12
 >12
 >10
Section Variation
 65-75
 60-75
 65-75
 65-75
 65-75
 65-75
 65-75
Shrink Rate (%)
Repeatedly Bend Frequency(F/R)
 >5
 >5
 >5
 >5
 >5
 >5
 >5
Hardness (H.B.)
 200-260
 200-260
 200-260
 200-260
 200-260
 200-260
 200-260
Continuous Service Time
 no
 ≥80/1300
 ≥80/1300
 ≥80/1300
 ≥80/1250
 ≥50/1350
 ≥50/1350
Micrographic Structure
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
 Ferrite
Magnetic Property
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic
 Magnetic

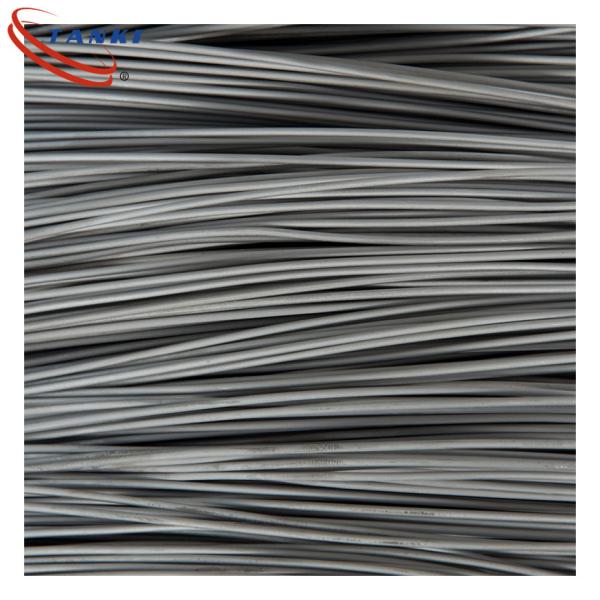

Real picture of FeCrAl alloy wires:

Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens
Package:
Higher Resistivity And Heating Efficiency Heating / Resistance Wire Alloy 875 / TK1 /Alchrome 875 1.4mm 3.5mm 6.5mm Used For Ovens

4. About us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
