TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
Specifications
Brand Name :
Tankii
Model Number :
K
Certification :
ISO9001
Place of Origin :
China
MOQ :
5~10kg as per diameter
Price :
USD24~60/kg
Payment Terms :
T/T, Paypal, Western Union, MoneyGram,
Supply Ability :
2000 Ton per year
Delivery Time :
5-7 days
Packaging Details :
ON spool and carton package. As the order quantity and customer requirement.
Item :
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
Package :
in coil or by length
Material :
NiCr90/10- Ni97Al3
Surface :
bright or oxidized as per request
Diameter available :
0.05mm-12mm can be produced
MOQ :
5~10kg as per sizes
Payment :
TT, Paypal, western union,
Lead time :
5~20 days
Description
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
Quick Details

Why do you choose K type Thermocouple Wire?

K-type thermocouple wire is a temperature sensor composed of two different metal alloys, and its definition and core characteristics are as follows:
1. Definition
K-type thermocouple wire is the abbreviation for nickel chromium nickel aluminum (NiCr NiAl) thermocouple, which belongs to a type of base metal thermocouple. It generates thermoelectric potential through the Seebeck Effect of two different metals to measure temperature.
2. Composition
Positive electrode (KP): Nickel chromium alloy (NiCr), typically containing 90% nickel and 10% chromium.
Negative electrode (KN): Nickel aluminum alloy (NiAl), typically containing 95% nickel, 2% aluminum, 2% manganese, and 1% silicon.
3. Working principle
When the two ends of a K-type thermocouple wire are at different temperatures, a thermoelectric potential (EMF) is generated in a closed loop due to the difference in electron density between the two metals. By measuring the magnitude of the thermoelectric potential, the temperature value can be calculated.

Tankii 's Types of Thermocouples

What differentiates one thermocouple from another is the metals in its two wires: the positive leg and the negative leg. Because each thermocouple type has a different pairing, they differ in temperature limits, process conditions (inert, oxidizing, reducing atmospheres, heavy vibration), and so on.

Thermocouple Types and Temperature Range

Conductor Name

Thermocouple

Type

Grade

Temperature range

℃

Allowable Tolerance /℃
PtRh30-PtRh6BⅡ600~1700±0.25% t
Ⅲ600~800±4
800~1700±0.5%t
PtRh13-PtRⅠ0~1100±1
1100~1600±[1+(t－1100) ×0.3％]
Ⅱ0~600±1.5
600~1600±0.25% t
PtRh10-PtS

Ⅰ

0~1100±1
1100~1600±[1+(t－1100) ×0.3％]

Ⅱ

0~600±1.5
600~1600±0.25% t
NiCr-NiKⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
NiCrSi-NiSiNⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
NiCr-CuNi (Constantan)EⅠ-40~1100±1.5℃ or ±0.4%t
Ⅱ-40~1300±2.5℃ or ±0.75%t
Ⅲ-200~40±2.5℃ or ±1.5%t
Fe-CuNi (Constantan)JⅠ-40~750±1.5℃ or ±0.4%t
Ⅱ-40~750±2.5℃ or ±0.75%t
Cu-CuNi (Constantan)TⅠ-40~350±0.5℃ or ±0.4%t
Ⅱ-40~350±1.0℃ or ±0.75%t
Ⅲ-200~40±1.0℃ or ±1.5%t
The Delivery and Packing:
1. Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package.
2. Delivery Detail: 7 days, as the order quantity.

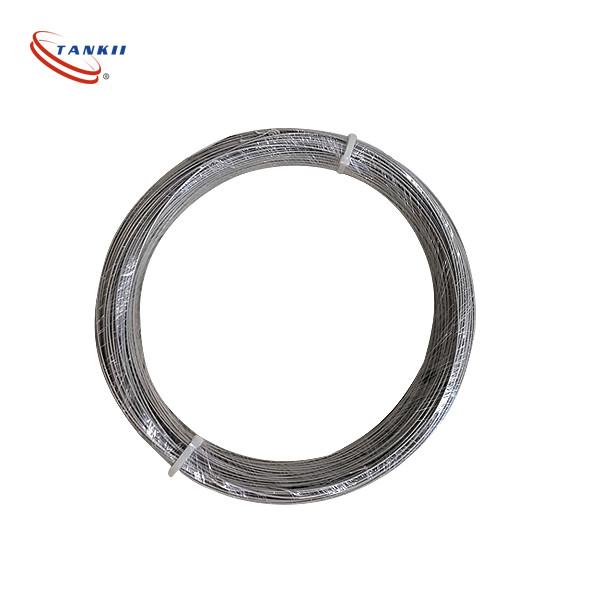

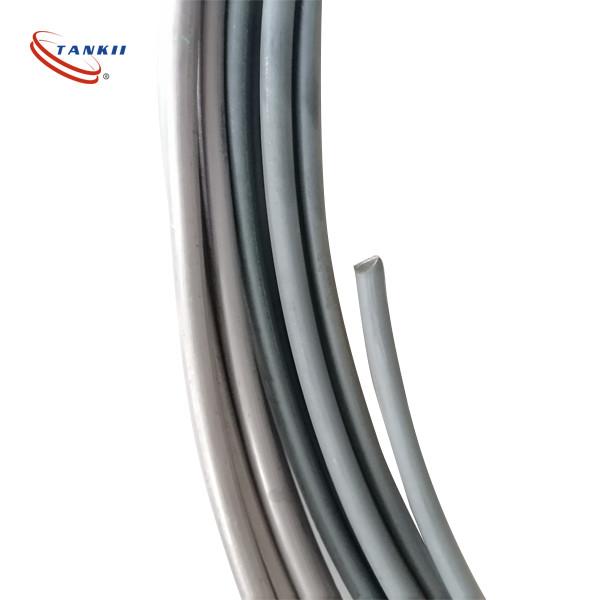

More pictures of thermocouple wire:
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction DeviceTANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
TANKII Thick Wire 2.0mm 3.2mm 6.0mm 8.0mm Thermocouple Wire /Rod /Bar Chromel And Alumel With Oxidized Surface Used For Laboratory High-Temperature Reaction Device
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Welcome to call me or email to me for more info on thermocouple wire.
