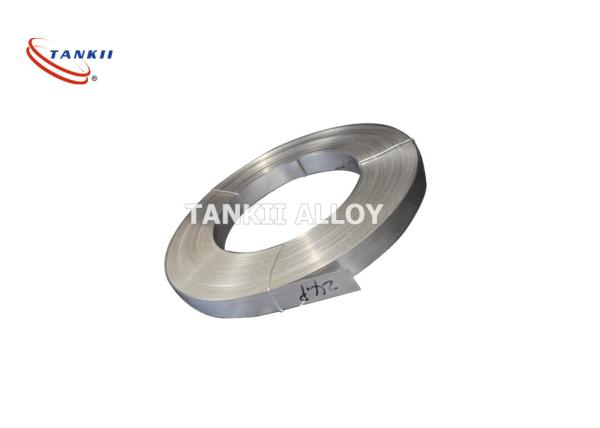

Resistance Heating Nickel Alloy Cr20ni80 Nichrome Resistance Strip Ni80cr20 Heating Strip From Factory
Resistance Heating Nickel Alloy Cr20ni80 Nichrome Resistance Strip Ni80cr20 Heating Strip From Factory
Resistance Heating Nickel Alloy Cr20ni80 Nichrome Resistance Strip Ni80cr20 Heating Strip From Factory
Resistance Heating Nickel Alloy Cr20ni80 Nichrome Resistance Strip Ni80cr20 Heating Strip From Factory
Specifications
Brand Name :
TANKII
Model Number :
NiCr80/20.
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
20kg
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20, 000kg/month
Packaging Details :
spool+plastic bag+carton+pallet for resistance wires
color :
sliver or polish
Conductor Material :
Ni-Cr
thickness :
: 0.02----4.0mm
Condition :
Bright annealed
Feature: :
high nickel, high resistance
Certificate: :
ISO 9001 RoHS SGS
width :
2.5----250mm
type :
Nickel strip
Description

Resistance Heating Nickel Alloy Cr20ni80 Nichrome Resistance Strip Ni80cr20 Heating Strip From Factory

NiCr80/20

The material NiCr8020 with the material number 2.4869 is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.

It is a nickel-chromium heating conductor alloy for operating temperatures of up to 1150 °C and often contains additives of rare earths for a higher resistance to oxidation, especially with frequent switching operations or broad temperature variations.

The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, yet it is low to oxidizing as well as reducing gases containing sulphur.

The resistance to carbonizing is high. Application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters.

Ni80Cr20

Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.08

0.02

0.015

0.60

0.75~1.60

20.0~23.0

Bal.

Max 0.50

Max 1.0

-

Mechanical Properties

Max Continuous Service:

Resisivity( 20℃)/Ω·m:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1200℃

1.09 +/-0.05 (Dia: <0.5mm)

1.13+/-0.05 (Dia: 0.50-3.00 mm)

1.14+/-0.05 (Dia: >3.0mm)

8.4 g/cm3

60.3 KJ/m·h·℃

18.0 α×10-6/℃

1400 ℃

Min 20%

Austenite

nonmagnetic

Type

Cr20Ni80

Cr15Ni60

Cr30Ni70

Cr20Ni35

Cr20Ni30

Main chemical composition

Ni

Rest

55.0~61.0

Rest

34.0~37.0

30.0~34.0

Cr

20.0~23.0

15.0~18.0

28.0~31.0

18.0~21.0

18.0~21.0

Fe

≤1

Rest

≤1

Rest

Rest

Maximal Temperature(℃)

1200

1150

1250

1100

1100

Resistance Temperature correction coefficient.(CT)

1.09±0.05

1.11±0.05

1.18±0.05

1.04±0.05

1.06±0.05

Melting point (℃)

1400

1390

1380

1390

1390

Resistivityρ20℃(10-6Ω.m)

800℃

1.008

1.078

1.028

1.188

1.173

1000℃

1.014

1.095

1.033

1.219

1.201

1200℃

1.025

1.043

Fast life value

Tem.(℃)

1175

1100

1200

1050

1050

hour(h)

≥110

≥100

≥110

≥100

≥100

Specific gravity(g/cm3)

8.40

8.2

8.1

7.90

7.90

Elongation(%)

≥25

≥25

≥20

≥20

≥20

Thermal(kj/m.h.℃)

60.3

45.2

45.2

43.8

43.8

Specific heat(20℃)j/g.℃

0.440

0.494

0.461

0.500

0.500

Extend strength(20~1000℃)α*10-6℃

18.0

17.0

17.1

19.0

19.0

Tensile strength(kg/mm2)

>85

>85

>85

>85

>85

Repeatedly bending(F/R)

>12

>12

>12

>12

>12

Microstructure

Austenitic

Austenitic

Austenitic

Austenitic

Austenitic

Our Nichrome alloy are in the form of wire, ribbon, strip, coil.

  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate

Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled
