Diabetics Blood Glucose Sensor Device , Blood Glucose Monitoring System
Diabetics Blood Glucose Sensor Device , Blood Glucose Monitoring System
Specifications
Brand Name :
ALLTEST
Model Number :
AGL-NST-a/AGL-NST-b/AGL-ST10/ST25-a/AGL-ST10/ST25-b /AGL-S50/AGL-S50C/AGL-S100C/AGL-IS50/AGL-OST10/AGL-OST25/AGL-L100/AGL-CS1/AGL-CS2/AGL-CSS
Certification :
CE
Place of Origin :
China
MOQ :
N/A
Price :
negotiation
Supply Ability :
10 M tests/month
Delivery Time :
2-4 Weeks
Payment Terms :
L/C, T/T
Packaging Details :
1 Unit
Principle :
Biochemical Assay
Format :
Meter
Specimen :
Whole Blood
Certificate :
CE
Reading Time :
5 seconds
Pack :
1 Unit
Shelf Life :
5 Years
Sample Size :
0.6uL
Test Memory :
500 Memory Locations
Glucose Test Range :
20- 600 mg/dL
Test Time :
5 Seconds
Operating Temperature :
5°-45°C
Description

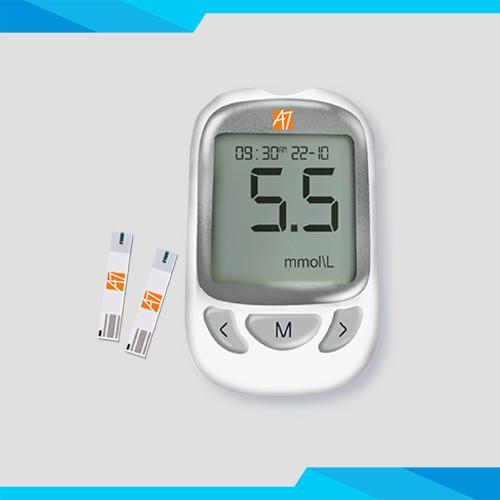

AT Blood Glucose Meter, Monitoring Devices For Self Testing By Diabetics, Blood Glucose Monitoring System

The AT blood glucose monitoring system will give you accurate readings from fresh capillary whole blood. This product is for professional use in medecal institutes or for self-testing by diabetics. Test results serve only as helpful information, not as proft for clinical diagnoses.

Specification
Cat. No. Product Description
Product Namme AT Blood Glucose Meter
Size 83.6mm (L) x 51.6mm (W) x 15.3mm (Thickness)
Glucose Test Range 1.1 - 33.3 mmol/L (20 - 600mg/dL)
Results Dispaly Plasma quivalent
Minimum sample volume 0.6μL
Test time 5 seconds
Battery 1 x CR 2032 3.0V coin cell battery
Battery lige >1,000 radings
Glucose Concentration Units mmol/L depending on the standard of your country.
Memory storage 500 test results with date and time stamp
Auto shutdown Automatci shutdown after 2 minites
Display size 40mm x 42mm
Weight About 50 grams (including battery)
Operating temperature 5 - 45℃ (41-113℉)
Operating humidity 20 - 90% (non-condensing)
Hematocrit range 30 - 55%

Product Components

Depending on which product you purchased, some of the components may to be purchased seperately. Please check the list of components printed on the box for details on which components are included with your purchase.
Blood Glucose Meter: The meter reads the test strips and displays the blood glucoseconcentration. Use this diagram to become familiar with all of theparts of your meter.
Test strips: AlIChekTM blood glucose test strips contain chemical reagents. Afterthe test strip is placed into the test strip port and a blood sample isapplied, the blood automatically wicks into test window. A transientelectrical current is generated, and this current is measured todetermine the correct blood glucose level reading.
Control solution: Control solution is a glucose solution of known concentration that is usedto confirm that your ÃlChek"' glucose meter and test strips are workingproperly. It is important to run a quality controll test regularly to make surethat you are geting accurate results.
Testing blood glucose:
1. Insert the test strip all of the way into the test strip port, and the meter will turn on automatically. If the audio is on, you will hear a "beep"sound, and all of the icons on the display will turn on at the same time.If the strip is inserted upside down, the meter will not turn on.
2. The test strip has been inserted correctly when you see the test strip icon and flashing blood drop icon. If the test strip is not correctly inserted, the meter will not turn on - repeat the steps above.
3. Apply blood to the sample area of the test strip. If the audio is on, the meter will beep, telling you that enough blood has been applied and the meter will start the measurement.
DO NOT:·
l Apply blood to the front or back of the test strip.·
l Smear the blood drop onto the test strip.
l Press your finger against the test strip.
4. The display will count down 5 seconds during the measurement process. If the audio is on, the test will end with a beep. If you applied a bloodsample but the meter does not begin a countdown, you may reapply a second drop of blood within 3 seconds.
If you press the ">" button, the test results will be marked with the "#" icon. Results marked with "#" symbol will not be used in the 7, 14, 30,60 or 90 day average calculations. If you accidentally mark your result with the "#" icon, simply press the ">" button again to cancel the mark. After marking a result with "#", please test again with a new strip.
If an error code is displayed, please check the troubleshotinginstructions. If "HI' or "LO" symbol is displayed, refer to the"HI" and "LO" Messages section.
Diabetics Blood Glucose Sensor Device , Blood Glucose Monitoring System
5. Record valid results in your logbook with date and time, and compare them to the target goals set by your healthcare professional. (Refer to Suggested Testing Times and Target Goals in Instruction Manual)
6. After the test has been completed, slide the test strip ejector to pop out the test strip, and the glucose meter will automatically turn off.

ORDERING INFORMATION

AGL-NST-a

Glucose Meter Set, without Start Kit (Results formula:mmolL)

Whole Blood

1 Unit

AGL-NST-b

Glucose Meter Set, without Start Kit (Results formula: mg/dL)

Whole Blood

1 Unit

AGL-ST10/ST25-a

Glucose Meter Set, with Start Kit (Results formula:mmolL )

Whole Blood

Start Kit: 10pcs/25pcs

AGL-ST10/ST25-b

Glucose Meter Set, with Start Kit (Results formula: mg/dL)

Whole Blood

Start Kit: 10pcs/25pcs

AGL-S50

Glucose Strip

Whole Blood

25 strips/canister, 50 strips / box

AGL-S50C

Glucose Strip

Whole Blood

50 strips/ canister

AGL-S100C

Glucose Strip

Whole Blood

100 strips / canister

AGL-IS50

Glucose Strip

Whole Blood

1 strip/pouch, 50 strips/ box

AGL-OST10

Glucose Start Kit

Whole Blood

10 pcs

AGL-OST25

Glucose Start Kit

Whole Blood

25pcs

AGL-L100

Lancet

100 pcs/box

AGL-CS1

Glucose Control Solution 1

AGL-CS2

Glucose Control Solution 2

AGL-CSS

Glucose Control Solution Set (Control solution1&2)
