Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized
Specifications
Brand Name :
OFLY
Model Number :
YD-7032
Certification :
CE, ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 meter
Price :
$5-7 USD
Payment Terms :
T/T
Supply Ability :
2000000 Meters\Year
Delivery Time :
5-7 Days
Packaging Details :
8mm Thick Carton Packaging
Material :
6063 T5 Aluminium Alloy
Item No. :
YD-7032
Length :
1m,2m,3m,4m
Cover :
Milky/Clear/Frosted/Opal
Size :
70*32mm
Description

Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized

Recessed LED Profile, LED Aluminum Profile

1. FEATURES AND APPLICATIONS:

Led Aluminum Profile is used for Led Strip lights installation. The Led Aluminum Profile anodized finish provides maximum protection against the elements, preventing rust and corrosion, and making them perfectly suitable for rough indoor or outdoor use. At the same time, Diffusers are available to maximize protection of the led strip and to control the diffusion of light from the strip. End Caps are also available to fully enclose the profile and also cleanly direct the wiring to the strip.

2. SPECIFICATION:

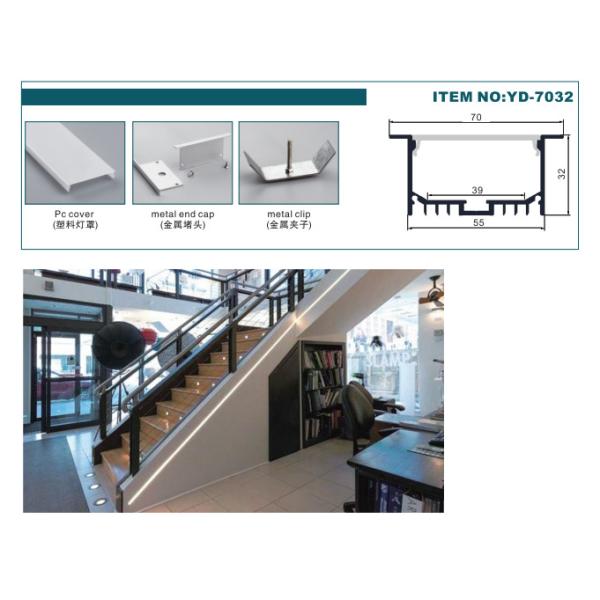

Item NO. YD-7032
Size 70mm*32mm
Length 1m, 2m, 3m, 4m
Customized Length Available
PCB Width Inside ≤12.5mm
PC Cover Milky/Clear/Opal/Semi-clear
Finished Anodized
Material 6063 T5 aluminum alloy
End Caps 2 End caps, one with wire hole, one without
Brackets 2 pieces
Installation Recessed
Lead Time 5-7 days
Package 8mm Thick Carton Packaging

Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized


Hot Sales
Big 70*32mm Oblong Recessed LED Strip Channel Diffuser Anodized

FAQ

Q1: What is the length in stock ?

A1: 2/3meters


Q2: Can we have different length ?

A2: Yes, we have in house cutting facilities to prepare the length in any quantity


Q3: What is the max length of the LED profile ?

A3: Max in 3meters for air shipment, 5meters for sea shipment


Q4: Can I join them together to make one continuous length?

A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)


Welcome ODM Customized LED Aluminum Profile
