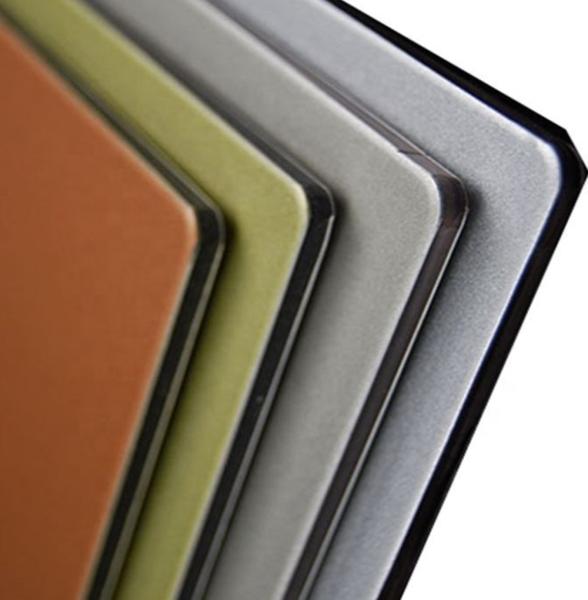

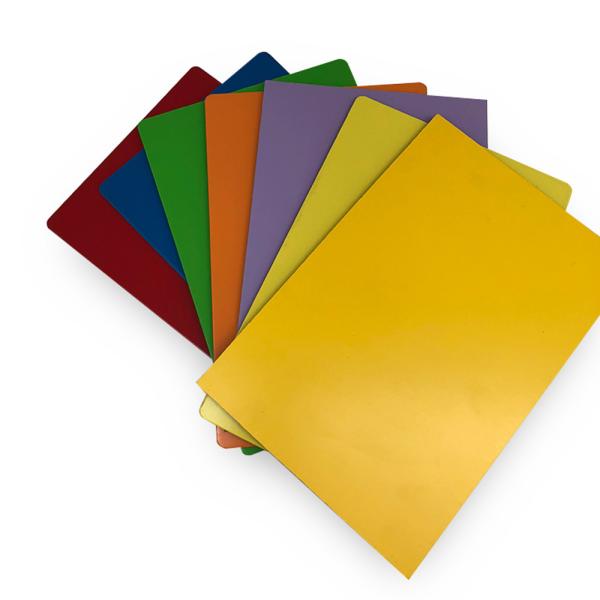

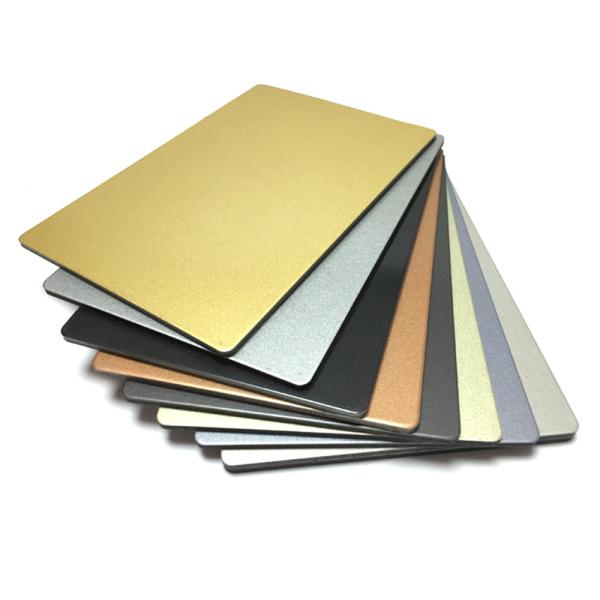

Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Specifications
Brand Name :
ZWM
Model Number :
044
Certification :
CE, SGS, IOS,...
Place of Origin :
Made in China
MOQ :
600SQM
Payment Terms :
T/T
Supply Ability :
20000sheet/day
Delivery Time :
15-25days
Packaging Details :
Nude packing, palelt
Surface finish :
PVDF coating
Panel thickness :
4mm thickness
aluminum skinthickness :
0.46mm
Panel Width :
1220mm, 1240mm, 1000-1550mm
Certifacte :
CE,IOS9001:2000 etc
Application :
exterior building cladding, curtain wall,
MOQ :
200 sheets for one color
Color :
Ald-8816 pure white
Core materials :
flexible/unbroken core
Warranty :
over 15ears
Protection film :
Aludong or customied
aluminum skin thickness :
0.46*0.46
Back side :
Primer
Brand :
Aludong
Price :
3-18 USD/SQM
Description

PVDF unbroken/flexible core Aluminum Composite Panel for signboard and cladding

4mm PVDF Aluminum Composite Panel

ACM panels provide a prefinished panel that is easily and quickly installed. The system consists of prefinished flat material that is routered on the backside of the panel to the desired panel size, returns are created on each panel for attachment of aluminum extrusion. The panel is fastened to the wall by use of an aluminum clip that is attached to the aluminum extrusion affixed to the prefinished material. The clips allow the next panel to be installed by sliding it onto the extrusion. A flat piece of the ACM material, commonly referred to as “filler strip” is then installed to cover the clip system. The panel is designed to be “Rain Screen Principle”, which shed the water but does not prevent it from entering behind the panel. Membranes are a key component in the installation of these panels and are more important than the panel for the functionality of the wall assembly


1.OUR FACTORY
1. 24 advanced production lines
2. 6 coating lines
3. more than 353 employees
4. construction of areas 130000 square meters
5. Fuonded in 1999, rich production experiences in aluminum composite panel and well known brand in China


Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
Production lines Aluminum Composite Panel warehouse

.2. BASIC INFORMATION
Aluminum Thickness 0.5mm,0.4mm,0.21mm,0.15mm,or range from 0.03-0.60mm
Surface Finish Brushed,Maple, Mirror, PE, PVDF, PEVE coating
Color Metallic color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc
Weight

3-4.5kg/Square meter, based on 3mm panel thickness
4-4.5kg/Square meter, based on 4mm panel thickness
Item Standard Opitions
Widh 1220mm 1000mm,1500mm,or range from 1000mm-1570mm
Length 2440mm 3050mm, 5000mm,5800mm, or any other length, that can be put into a 20GP container
Panel thickness 3mm,4mm 2mm,5mm,8mm,or range from 1.5mm-8mm.
Application Interior,Exterior,Signage,Industries application
Certification ISO9001:2000, ISO9001:2008,SGS,CE,Rohs,Firproof Certifcation
Leading Time 8-15 days after receive your order
Packing Wood Pallet or Wooden case or Nude Packing
3. CATALOGUE(COLOR CHART)


Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding
4. Certificate
Unbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And CladdingUnbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding


5. FAQUnbroken Flexible Core PVDF Aluminum Composite Panel For Signboard And Cladding

1. What is the Mininum Order quality?
200 Pieces aluminum composite panel for same color
2. How long can I get the quote?
The quotation can provide not longer than 24 hours.
3. Can I get the sample?
Yes, We offer the free sample.
4.Can I get the installation accessories?
If you want more the installtion accessories, please click the www.henanjixiang.com
5. Why can I trust us and place the order to us?
1.We are the one of the most Aluminum composite panel manufacture well known in China for 20 years.
2. We have 24 production line and 6 coating lines.
3. Best price we can offer, because we have our own coil coationg lines.
4.Big group organization with 12 subsidiaries which means we have enough cash flow to offer your best payment terms,
