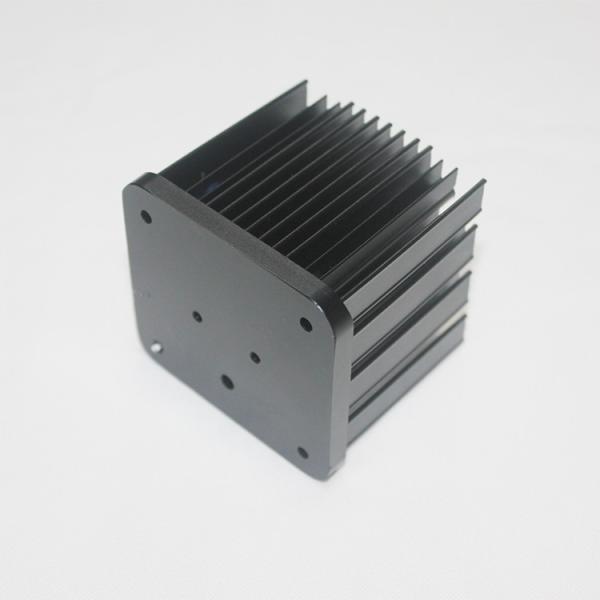

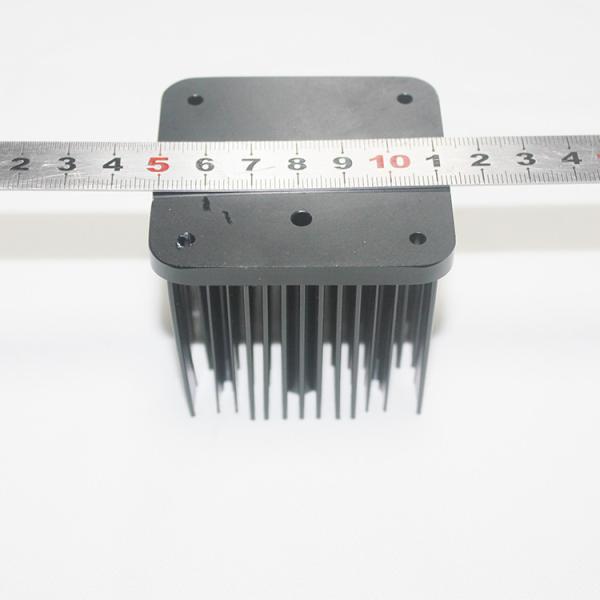

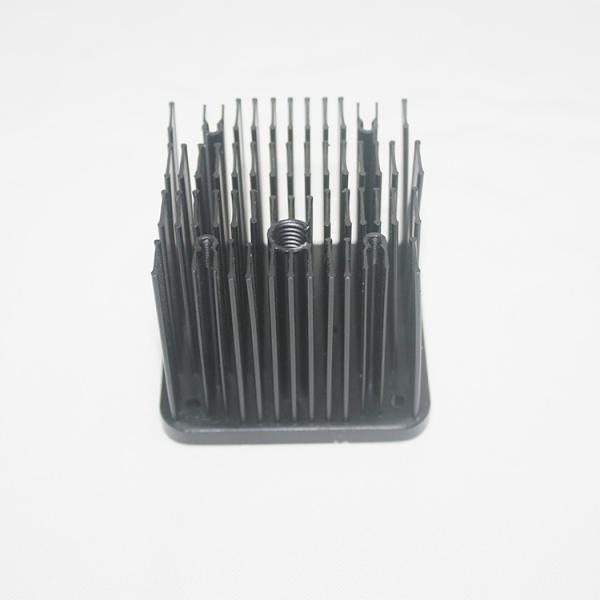

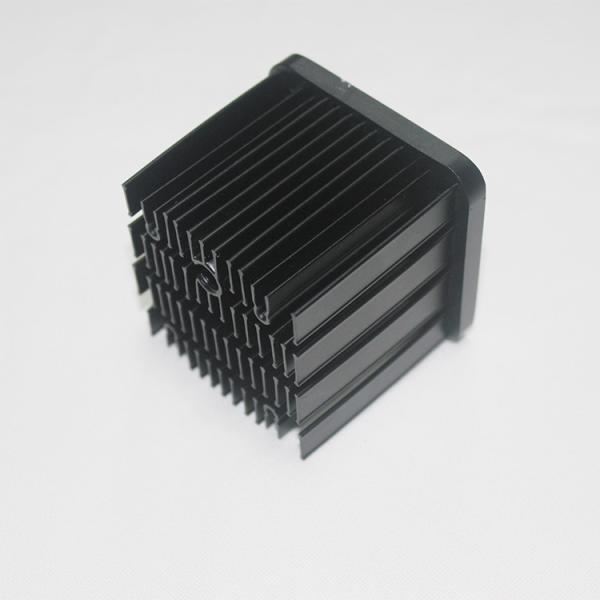

Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
Specifications
Brand Name :
FODOR
Model Number :
HEAT SINK-F0006
Certification :
Rosh
Place of Origin :
China
MOQ :
200PCS
Price :
EXW/FOB/CIF/DDP
Payment Terms :
T/T, Western Union
Supply Ability :
30000 PCS Per month
Delivery Time :
20-30days
Packaging Details :
Blister packaging
Raw Material :
AL1070/1050
Surface Treatment :
Clean
Application :
Round pin cold forged heat sink
Processing Service :
Forged /Cutting, CNC,Anodizing
Delivery time :
20-30days
Keyword :
cold forged heat sink
dimesion :
45*70mm
Description

Square Aluminum 1070 Pin Fin 62mm Anodizng Black Cold Forged Heat Sink With Rosh

Quick Detail
Raw Material AL1070/1050
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Forged/cutting/laser/CNC/Anodizing
Surface treatment Andizing Black
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000

Description

This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.

Note

An added benefit of this process is that a forged heatsink of the same design can be manufactured with different heights using only one set of forging die. When working with high aspect ratio, or dense fins a forged heatsink has no thermal interface between the fins/pins, and the base which will provide better performance compared with stamped-fin or bonded-fin heat sinks. Heat distribution can be further improved in aluminum heatsinks by embedding a copper inserts into the base during the forging. As this process is fairly expensive, for small volumes it may be worth exploring extrusion with a cross cut to produce square pins. For larger volumes die cast is a good alternative.

Fodor offers AL1070 cold forged heat sink service, If you have any inquiry, please contact us.

Square Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black AnodizedSquare Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black AnodizedSquare Pin Fin 62mm Cold Forged Heat Sink For Electronic Equipment Black Anodized
