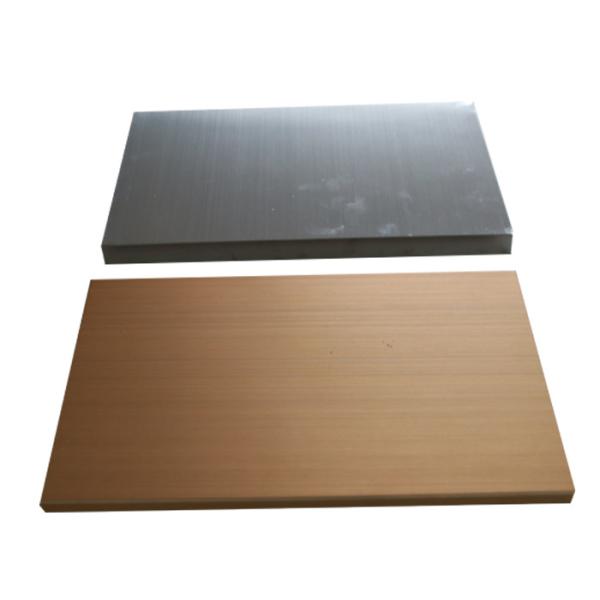

Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
Specifications
Brand Name :
WDF
Model Number :
WDF-AHP
Certification :
ISO
Place of Origin :
Guangdong,China
MOQ :
100sqm
Price :
USD 12.5-40 per sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 SQM per Month
Delivery Time :
5-15 working days after depoist,depending on qty
Packaging Details :
Seaworthy Plywood Pallets
thickness :
from 4 to 100mm
width :
upto 2000mm
length :
upto 10000mm
Composite Process :
Hot Press or Cold Press
Function :
Anti-Static, Antibacterial, Fireproof, Mould-Proof
Color :
Ral Color or Customized Made
Edge Processing :
Edge Closed or Edge Open
Core :
Aluminum Honeycomb Core
Description

Aluminum Honeycomb Core Sandwich Panels For Building And Furniture Use

Aluminum honeycomb panel is a kind of sandwich panel consisting of two aluminum plates as face panels and hexagonal aluminum honeycomb cell as core materials, bonded together by aviation-purpose adhesive film(PUR hot melting film). Thanks to its superb characteristic of light weight, good strength, hyper flatness, sound and heat proof, aluminum honeycomb panel is very popular for marine use:marine furniture,ceiling,floor,wall panel etc.

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin

Aluminum Honeycomb Core

Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film

At a Glance:

RODUCT NAME
Aluminum honeycomb panel/metal honeycomb panel/honeycomb sandwich panel
SKIN MATERIALS
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
THICKNESS
3 -200mm
STANDARD SIZES
1250x2500mm, 1500x4800mm
MAX SIZES
1650x12,000mm, 2000x3000mm
TEMPERATURE RANGE APPLIED
-40° to 117°
FINISH
mill finish, RAL colors, wood/stone pattern,anodized, brush,mirror
STANDARD
CN, BS, ASTM
CAPACITY
50K m2/month

WDF aluminum honeycomb panels structures deliver:

  1. High strength-to- weight benefits
  2. Built-in and added fasteners, latches, connectors and more
  3. Custom surface finishes
  4. Exceptional quality

WDF offers many manufacturing capabilities that can provide a unique sandwich panel solution for your application.

  1. CNC Machining
  2. Cold and Hot Laminating
  3. Welding
  4. Finished Edges
  5. Adhesive Bonding and Assembly
  6. Powder Coating
  7. Forming
  8. Destructive and Nondestructive Testing
Physical Property
Item Unit T=10mm
Weight kg/m3 kg/m3
Thermal expansivety 23x10-6
Heat conduction ratio /ºC 1.7
Cimbustion W/MºC Flame Resist / Class B1
Presssing-proof 1.72
Pulling-proof strong modulo of the surface Mpa 20-50
Bending protracting ratio Gpa 5%

Application

Aluminum honeycomb panel has widely used in facade cladding industry, interior decoration, ceiling, partition,

furniture industry, ship hull building and ship decoration, vehicle building and so on.

Packing and Delivery

Package
Option		 1.Plywood Pallet
2.Plywood Case
3.Customized
Delivery 1.Samples: 2-3 days if we have in stock
2.Mass Production: 15 working days
3.Delivery terms:EXW,FOB,CIF,DDP
Notes There's protective film on each side of the panel.
Different colors are used to identify top surface

Marine Aluminium Honeycomb Panels Laminated With Formica HPL By PUR Hot Melting Film
