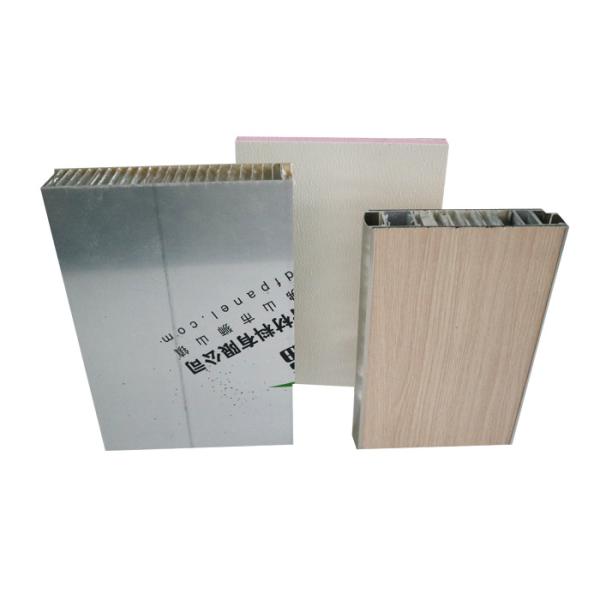

8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
Specifications
Brand Name :
WDF
Model Number :
WDF-TBK
Certification :
ISO
Place of Origin :
Foshan,China
MOQ :
5sets
Price :
2000-10000USD Per Set based on Spec
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets Per Month
Delivery Time :
15-25 working days
Packaging Details :
protective film+wooden case
Type :
Composite Truck Body
Size :
Per Custom Spec
Color :
White is Popular ,Other Color Are Also Available
Material :
FRP Insulated Panel or Aluminum Composite Panel
Adhesive :
Polyuthane Glue
Core :
XPS Insulation Foam
Length :
upto 12m
Temperature :
-20 to 80℃
Description

Light Weight Insulated Trailer Made With Aluminum Or Fiberglass Panel

Standard FRP or aluminum composite panels (10 - 150 mm thick)

without cutting, padding or reinforcements. Corner profiles, adhesive

and primer will be provided

Individually planned FRP or aluminum composite panels

(10 - 150 mm thick), pre-cut with reinforcements. Corner profiles,

adhesive and primer will be provided

Individually planned FRP or aluminum composite panels

(10 - 150 mm thick), pre-cut with built-in doors, windows, hatches,

reinforcements or an integrated frame in the floor panel. Corner
Windows and doors are available upon request
Notes Normally truck body are supplied in CKD format to save

Our Composite Truck Bodies are engineered and constructed with premium materials sourced. Each component

is carefully selected to guarantee a trouble free long life.We deliver flat packed per shipping container to your doorstep.

  • Designed for temperature sensitive cargo, fresh to frozen
  • Standard Lengths 8’ to 14’
  • Trailer frame and axles built to optimize your towing performance
  • Side walls construction: .040 aluminum exterior painted white or composite seamless fiberglass, extruded polystyrene foam core, .032 one-piece aluminum, mill finish, interior.
  • Welded extruded aluminum floors:
    • Aluminum inverted “T” (flat surface)
    • Aluminum “Hat” (ducted for great air flow)
    • Aluminum “Hat” anti-skid (ducted & ribbed)
  • LED lighting standard
  • Custom interior and exterior lighting options available

Specifications

Product

Core

(mm)

Inside Sheet

(mm)

Outside Sheet

(mm)

Total Thickness

(mm)

Weight

(Kg / Sqm)
Dry Goods 25 2.4 2.4 29.8 8.46
Dry Goods 35 2.4 2.4 39.8 8.86
Frozen Goods 45 2.4 2.4 49.8 9.26
Frozen Goods 75 2.4 2.4 79.8 10.46
Deep Frozen Goods 100 2.4 2.4 104.8 11.26

Application

  • Refrigerated Truck Bodies
  • Refrigerated Trailers
  • Cold Rooms

WDF Factory View

8''-14'' Composite Truck Body Insulated Cargo Trailer Panels
