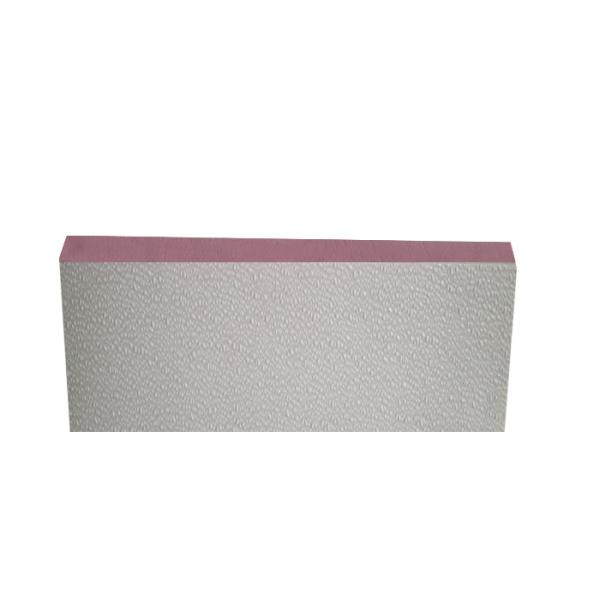

XPS Foam Core Coated On Both Sides With Glassfibre Reinforced Polyester Resin

Definition

XPS foam cored FRP composite panels are made of prefabricated fiberglass reinforced plastic sheets as inner and outer surfaces, XPS foam as core and high-strength adhesive bonding together under high vacuum pressure. The gelcoat on surfaces are FDA approved, friendly to food.

Panel Composition

Skin - SKIN OF POLYESTER GRP with white gelcoat and protective film on gelcoat side
Thickness: from 1,1 mm to 3 mm suitable for contact with food products

Bonding - STRUCTURAL ADHESIVE

Core - XPS FOAM

Typical Features:

1. Light-weight &high-intensity

2.fire resistant & insulation

3. Anti-impact & scratch

4. Corrosion resistant

5. easy to clean & install

6. Anti-mildew, mould, moisture, resistant

7. Resilient to weathering and hail

8. Excellent thermal characteristics

Application:

Compartments and external walls of building and truck body.

Truck flooring panel

Hatchery,Incubation and temperature controlled house

Places that require Insulation and high impact strength

Available Polyester skins

• Standard gel coated polyester available from 1.2 mm to 3 mm
• High gloss polyester available from 1.2 mm to 3 mm
• High impact polyester available from 0.8 mm to 1.4 mm
• Woven roving polyester available from 1.4 mm to 3 mm
• Non gel coated polyester available from 1 mm to 3 mm

Available Polyester Skin colors

• Standard available RAL 9003, 9010, 9016
• All other RAL codes upon request

Options that can be added in the panels

• Steel inlays (Plate, box profiles)
• Aluminum inlays (Plate, box profiles)
• Electric pipes
• Montage frame around the outside (Wood, Hard foam, Plywood)
• Plywood 6, 9, 12, 15, 18 and 22 mm
• Wooden/Steel/Aluminum or composite cross member
• Lashing rails reinforcements
• Double stock rails reinforcements
• Side door reinforcements
• Kick plate reinforcements
