Specifications
Brand Name :
OEM
Model Number :
WDF-AHP
Certification :
ISO
Place of Origin :
CHINA
MOQ :
100sqm
Price :
20-40USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 pieces per month
Delivery Time :
About 15 Days After Receiving The Deposit(Based On The Quantity)
Packaging Details :
Standard shipping package
Standard Size :
1220*2440mm
Application :
Wall Cladding
Panel thickness :
5-100mm
Surface Treatment :
PVDF,PE,Powder Coating, Anodized, etc.
Material :
Aluminum
Regular Thickness :
10/12/15/20/25 mm
Edge Treatment :
Open or Closed
Width :
Max 2000mm
Description

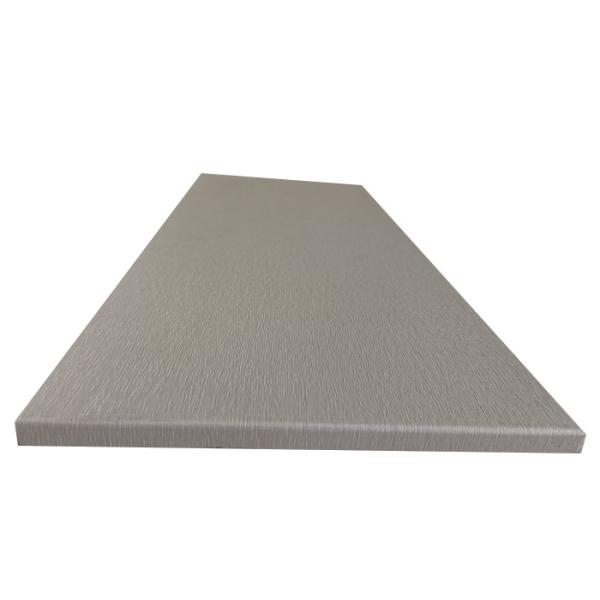

High Acoustic Light Aluminum Honeycomb Panels for Wall Cladding

Basic info of Aluminum Honeycomb Panel

Aluminum honeycomb panel is a honeycomb sandwich plate with honeycomb structure as its core, which is inspired by the natural hexagonal honeycomb. The unique honeycomb structure makes its weight lighter than other materials in the same volume, and the stiffness and overall stability is very good as well, what’s more, aluminum honeycomb panel also has the advantages of sound insulation and heat insulation. The aluminum alloys are neither radioactive nor volatile. They can be completely recycled and reused, then saving resources and energy, and minimizing environmental pollution. This makes honeycomb aluminum panels used as a new energy-saving, environmentally friendly and healthy material.

Specification:
Material Aluminum Alloy (3003/5052, etc. )
Regular Size (W*L*T) 1, 220*2, 440/3, 000*6 mm
Max. Size(W*L*T) 2, 000*10, 000*200 mm
Regular Thickness 10/12/15/20/25 mm
Available Thickness 6-200 mm
Regular Surface Treatment PVDF, PE, Powder Coating, Anodized, etc.
Perforation Yes (customized)
Applications Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc.
Customerization(MTM) Yes (color, surface texture, size, shape, pattern, etc. )
Suggestion:
1. For interior wall (PE coating): Range from 8mm to 20mm (top plate: 1.0mm; Bottom plate: 0.7/0.8mm)
2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: From 1.0mm to 1.5mm; Bottom plate: From 0.7mm to 1.0mm)

Product Advantages

  • Lightweight
  • Durable and robust
  • Rigid
  • High strength-to-weight ratio
  • Cost effective
  • Fire resistant
  • Excellent compression and shear properties
  • High impact resistance
  • Good sound proofing properties
  • Environmentally friendly
  • High production efficiency
  • Dimensional stability

thickness 5-100mm 5052 Aluminium Honeycomb Panels Aluminium Wall Cladding Panels

Our Serves

thickness 5-100mm 5052 Aluminium Honeycomb Panels Aluminium Wall Cladding Panels

Show Case

just an example

thickness 5-100mm 5052 Aluminium Honeycomb Panels Aluminium Wall Cladding Panels

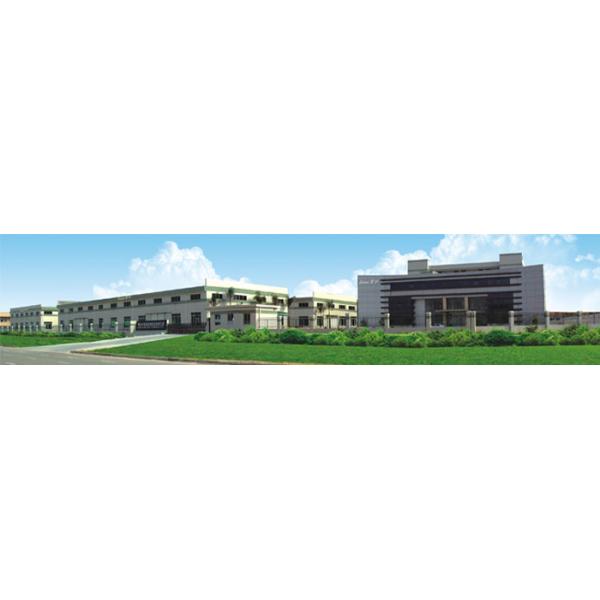

Our factory
