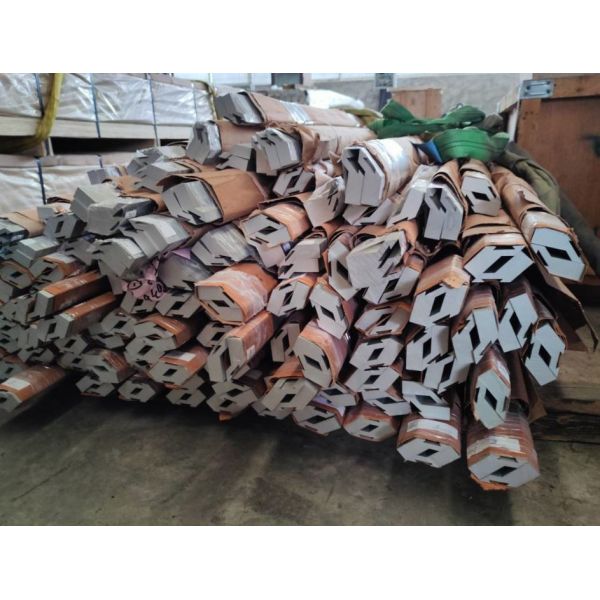

6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder
6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder
6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder
6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder
Specifications
Brand Name :
HUANYU
Model Number :
ATLAS HOLDER PROFILES
Place of Origin :
CHINA
MOQ :
1 METRIC TON
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
30 METRIC TONS PER MONTH
Delivery Time :
7 days
Packaging Details :
PLYWOOD CASE
Length :
3M
Density :
2.78 g/cc
Ultimate Tensile Strength :
186 MPa
Yield Tensile Strength :
149 MPa
Melting Point :
616-654 Celsius Degree
Elongation at Break Percentage :
17%
Application :
ATLAS HOLDER
Surface Treatment :
Mill Finish
Description

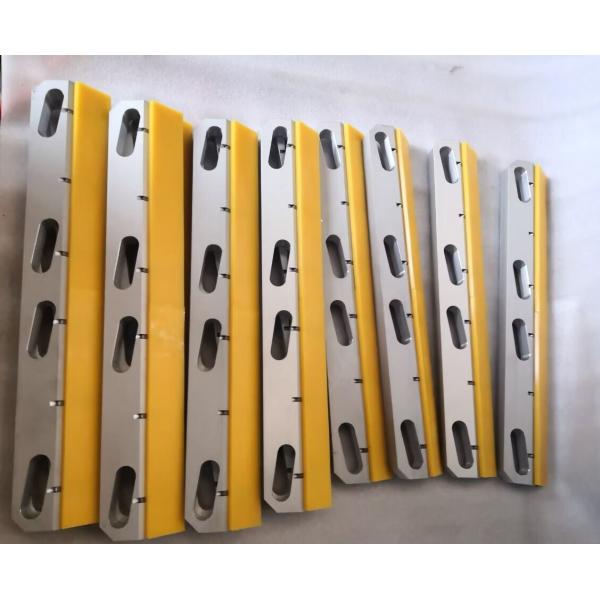

3 Meters Atlas Holder Profiles 6063 Aluminum Extrusion Profiles

Aluminium Extruded Profiles Used As Holder For 281 282 JUMBO BOOMER

Aluminium Holder Profiles suitable to produce
3128 0785 48
3128 0785 49
3128 0784 38
3128 0784 39

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

Specifications on High Strength 6063 T6 Extruded Profiles Used As Constructional Wall

Wall Thickness: 18.70mm

Shape: Customized

Length: 4200mm

6063 Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 0.20 0.45
Maximum 0.60 0.35 0.10 0.10 0.90 0.10 0.10 0.10 0.05 0.15

Remainder Aluminum

6063 Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T5, T52 27 186 21 145 12 60
T6 35 241 31 214 12 73

6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder

6063 Aluminum Extrusion Profiles 3 Meters Atlas Holder
