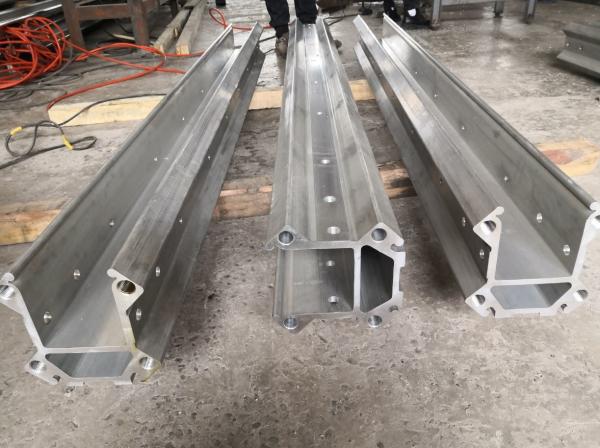

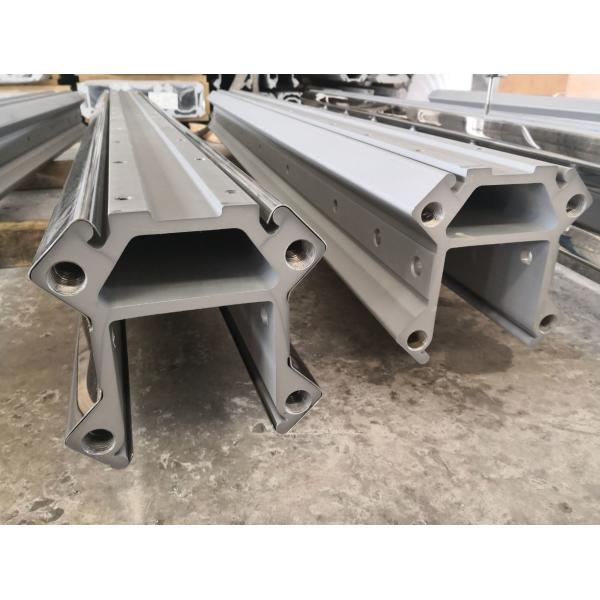

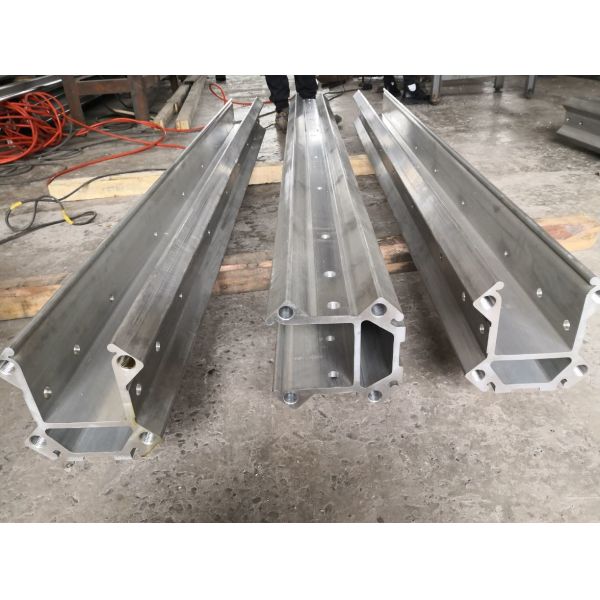

TF500-8' Feed Beam TF500-10' Aluminium Extruded Profiles
TF500-8' Feed Beam TF500-10' Aluminium Extruded Profiles
TF500-8' Feed Beam TF500-10' Aluminium Extruded Profiles
TF500-8' Feed Beam TF500-10' Aluminium Extruded Profiles
Specifications
Brand Name :
HUANYU
Model Number :
HYTF500P
Place of Origin :
People's Republic of China
MOQ :
5 pieces
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
43 pieces/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 215cm to 730cm
Feed Beam Type :
TF500
Length :
3,960MM
Matchining :
Depend On Availability of Machining Drawings
Material :
7020 Aluminum Alloy
Application :
Copper Mining
Net Weight Per Meter :
29.6 Kilograms Per Meter
Length Availability :
2100m through 7,250mm
Lead Time :
Shipped Off Immediately
Description

5650MM TF500 Feed Beam Boomer Aluminium Extruded Profiles

FEATURES

1. Material: Aluminum Alloy 7020 With Heat Treatment T6
2. Compliant with Standard of GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 29.6kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 427cm X26cm X26 cm

SPECIFICATIONS

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option 2100mm through 7200mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length
