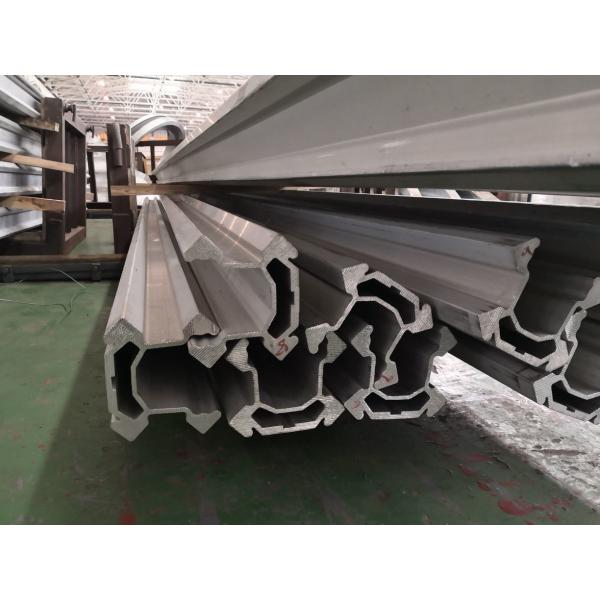

Feed Beam 14 FT Mining Industry Use Atlas Epiroc BMH2000 Aluminium Extruded Profiles
Feed Beam 14 FT Mining Industry Use Atlas Epiroc BMH2000 Aluminium Extruded Profiles
Specifications
Brand Name :
HUANYU
Model Number :
HYBMH2000
Place of Origin :
People's Republic of China
MOQ :
5 Units
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
20Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 4.48 meters
Feed Beam Type :
BMH2000
Length :
4~6.5 Meters
Machining :
As Per Buyer's Demand
Material :
7005 Series Aluminum Alloy
Application :
Atlas Jumbo Boomer 281
Net Weight Per Meter :
22.3 Kilograms Per Meter
Surface :
Mill Finish
Description

Feed Beam 14 FT Mining Industry Use Atlas Epiroc BMH2000 Aluminium Extruded Profiles

1. Material: Aluminum Alloy 7005 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 4,000mm to 6,500mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 22.3kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 448cm X23cm X21 cm

Material Option Aluminum Alloy 7005
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 14FT (4267mm)/ Ranging from 4000mm to 6000mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Feed Beam 14 FT Mining Industry Use Atlas Epiroc BMH2000 Aluminium Extruded Profiles
