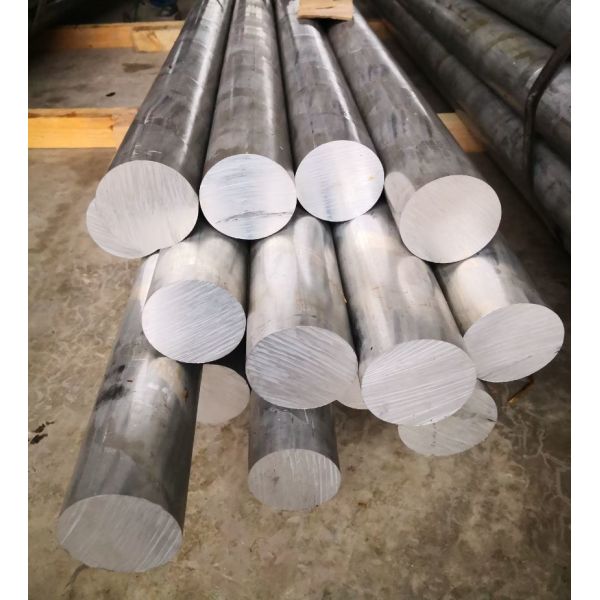

Mill Finish Marine 5052 O Temper Aluminum Round Bar
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Specifications
Brand Name :
HUANYU
Model Number :
HYRB5052
Place of Origin :
CHINA
MOQ :
1 METRIC TON
Payment Terms :
T/T
Supply Ability :
20 METRIC TON PER MONTH
Delivery Time :
28 DAYS
Packaging Details :
PLYWOOD CASE
Lead time :
5052 O temper aluminum round bar can be shipped off 28 days later
Length :
5052 O temper aluminum round bar's maximum length is 6 meters long
Application :
Aircraft Industry
Surface treatment :
Mill Finish
Material :
Aluminum Alloy 5052
Applications :
widely used in building and construction, storage tanks, pressure vessels and marine applications
Description

5052 O Temper Aluminum Round Bar Rod Used In Marine Applications

Magnesium is the primary alloying agent in the 5052 series and is one of the most effective and widely used alloying elements for aluminum. Alloys in this series possess moderate to high strength characteristics, as well as good weldablilityand resistance to corrosion in the marine environment. Because of this, aluminum-magnesium alloys are widely used in building and construction, storage tanks, pressure vessels and marine applications.

5052 is extremely resistant to corrosion, particularly that of a marine environment.
It also possesses a high magnesium content, making it the highest strength non-heat treatable alloy available.
It has good finishing characteristics, and excellent workability.
It is easily drawn or welded, and may be formed into intricate shapes.
Mechanical Properties
Mill Finish Marine 5052 O Temper Aluminum Round Bar
Hardness, Brinell 47 47 AA; Typical; 500 g load; 10 mm ball
Ultimate Tensile Strength 193 MPa 28000 psi AA; Typical
Tensile Yield Strength 89.6 MPa 13000 psi AA; Typical
Elongation at Break 25 % 25 % AA; Typical; 1/16 in. (1.6 mm) Thickness
Elongation at Break 30 % 30 % AA; Typical; 1/2 in. (12.7 mm) Diameter
Modulus of Elasticity 70.3 GPa 10200 ksi AA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
Ultimate Bearing Strength 345 MPa 50000 psi Edge distance/pin diameter = 2.0
Bearing Yield Strength 131 MPa 19000 psi Edge distance/pin diameter = 2.0
Poisson's Ratio 0.33 0.33
Fatigue Strength 110 MPa 16000 psi AA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
Machinability 30 % 30 % 0-100 Scale of Aluminum Alloys
Shear Modulus 25.9 GPa 3760 ksi
Shear Strength 124 MPa 18000 psi AA; Typica

Mill Finish Marine 5052 O Temper Aluminum Round Bar
